Acquire Menu Function Controls - Tektronix TDS1000B Series Operator's Manual

6
Using Menu Function Controls

ACQUIRE Menu Function Controls

You use the acquisition modes of a TDS1000B/TDS2000B
oscilloscope to control how waveforms are acquired and
displayed from the sample points taken on a signal.
A TDS1000B/TDS2000B oscilloscope acquires 2500
sample points for each active channel during every
acquisition of the respective signals. Sample points are
derived directly from the Analog to Digital Converter for
each channel of the oscilloscope. The time value difference
between two sample points is called the sample interval.
The ACQUIRE menu is shown in Figure 6.1.
6-6 TDS1000B and TDS2000B Series Oscilloscopes – Operator Training Kit

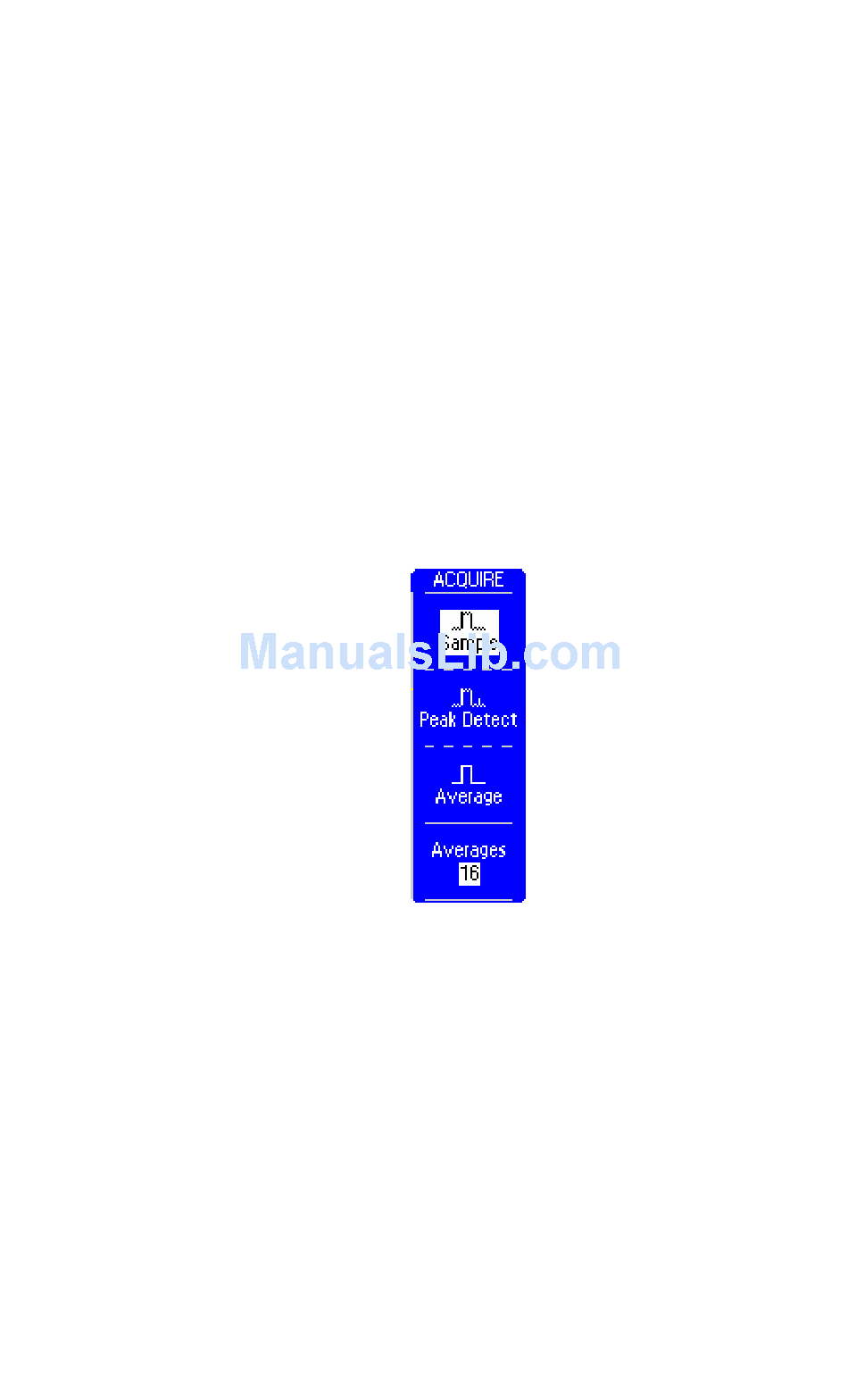

Figure 6.1 ACQUIRE menu options
