Types of Oscilloscopes

Electronic equipment can be categorized into two types,
analog and digital. Analog equipment use variable voltages
while digital equipment use binary numbers that represent
voltage samples. Similarly, oscilloscopes are categorized
into analog and digital.

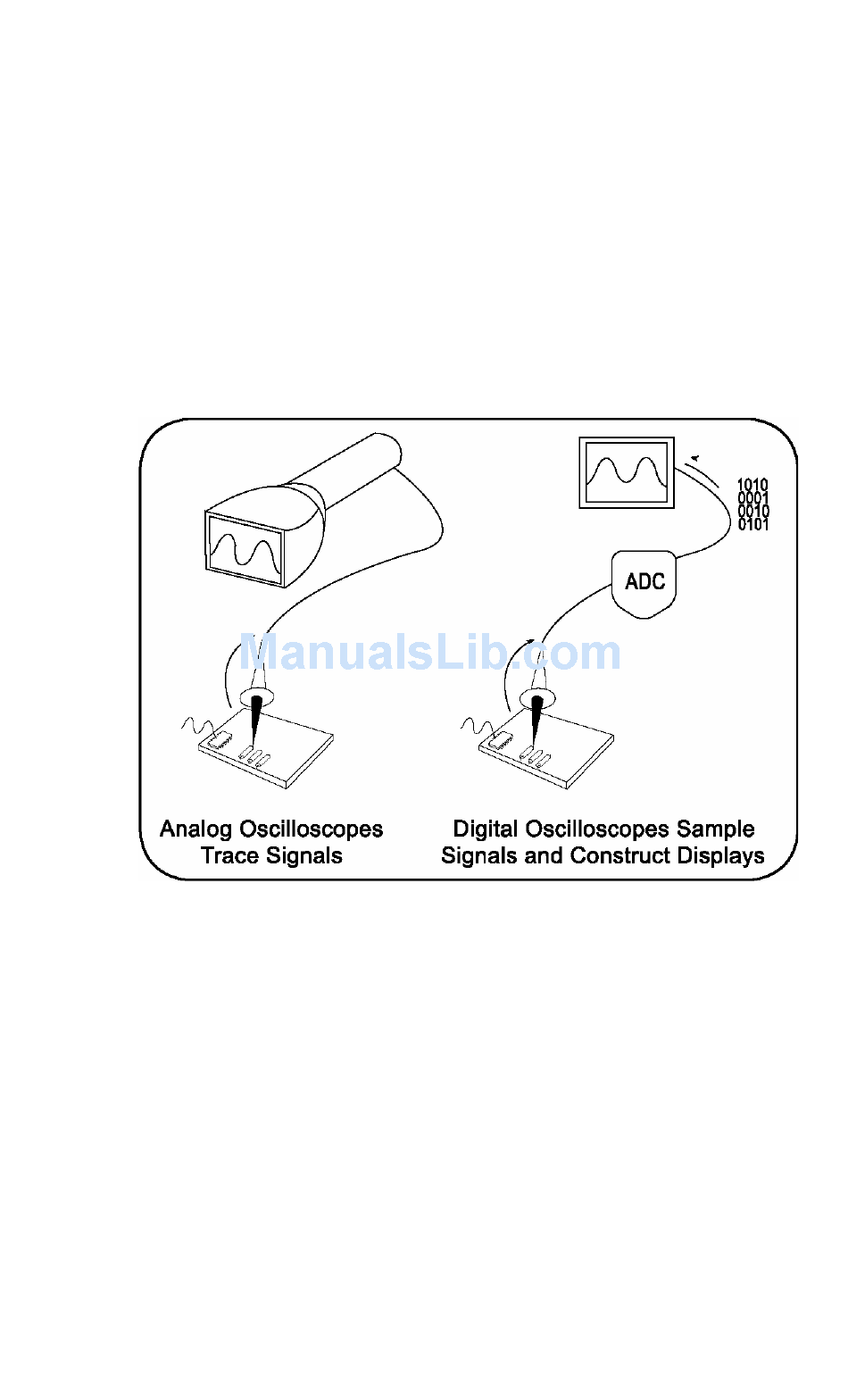

Figure 1.2 shows an analog and a digital oscilloscope.
TDS1000B and TDS2000B Series Oscilloscopes – Operator Training Kit
Figure 1.2: Analog and digital oscilloscopes
