Setting Up the HORIZONTAL Controls

Before you use the HORIZONTAL controls in the operation
exercises, you must ensure that the oscilloscope is set to its
default setting.
It is assumed that the Channel 1 probe tip is connected to
the 5V@1kHz signal on the front panel and the probe
ground clip is connected to the GND pin on the front
panel. The Channel 2 probe tip should not be connected
to any signal.
TDS1000B and TDS2000B Series Oscilloscopes – Operator Training Kit

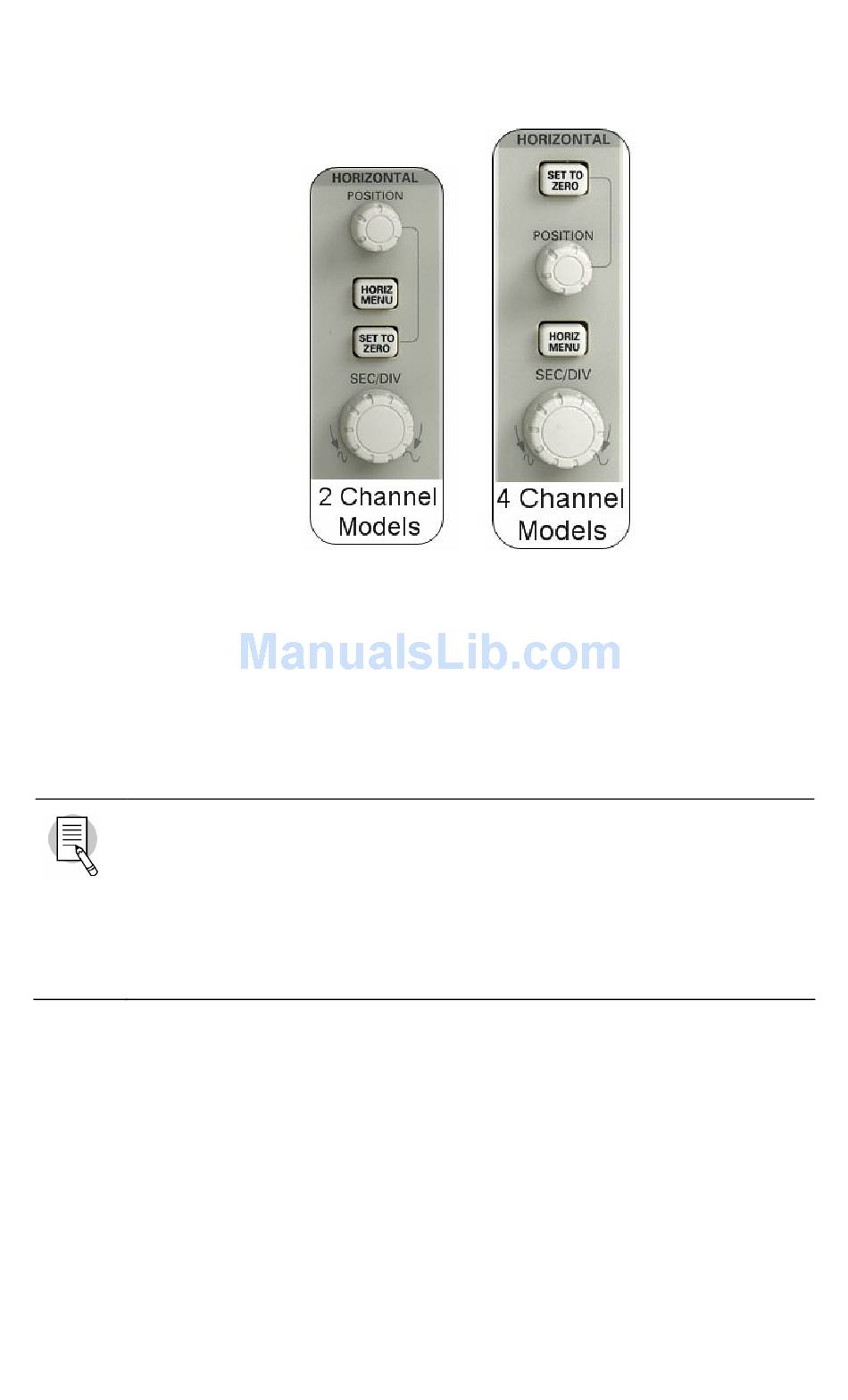

Figure 4.1: The HORIZONTAL control sections
Using HORIZONTAL Controls
4
4-3
