8. Select Cursor 2. Turn the Multipurpose knob to
position the associated cursor on the highest peak of
the waveform.
9. Read the peak-to-peak volts (amplitude) measurement
for the waveform in the side-screen menu box ΔV.
You will see a waveform similar to that shown in Figure 6.9.
The measurement displayed in ΔV is the peak-to-peak volts
(amplitude) measurement for the 5 kHz SINE signal.

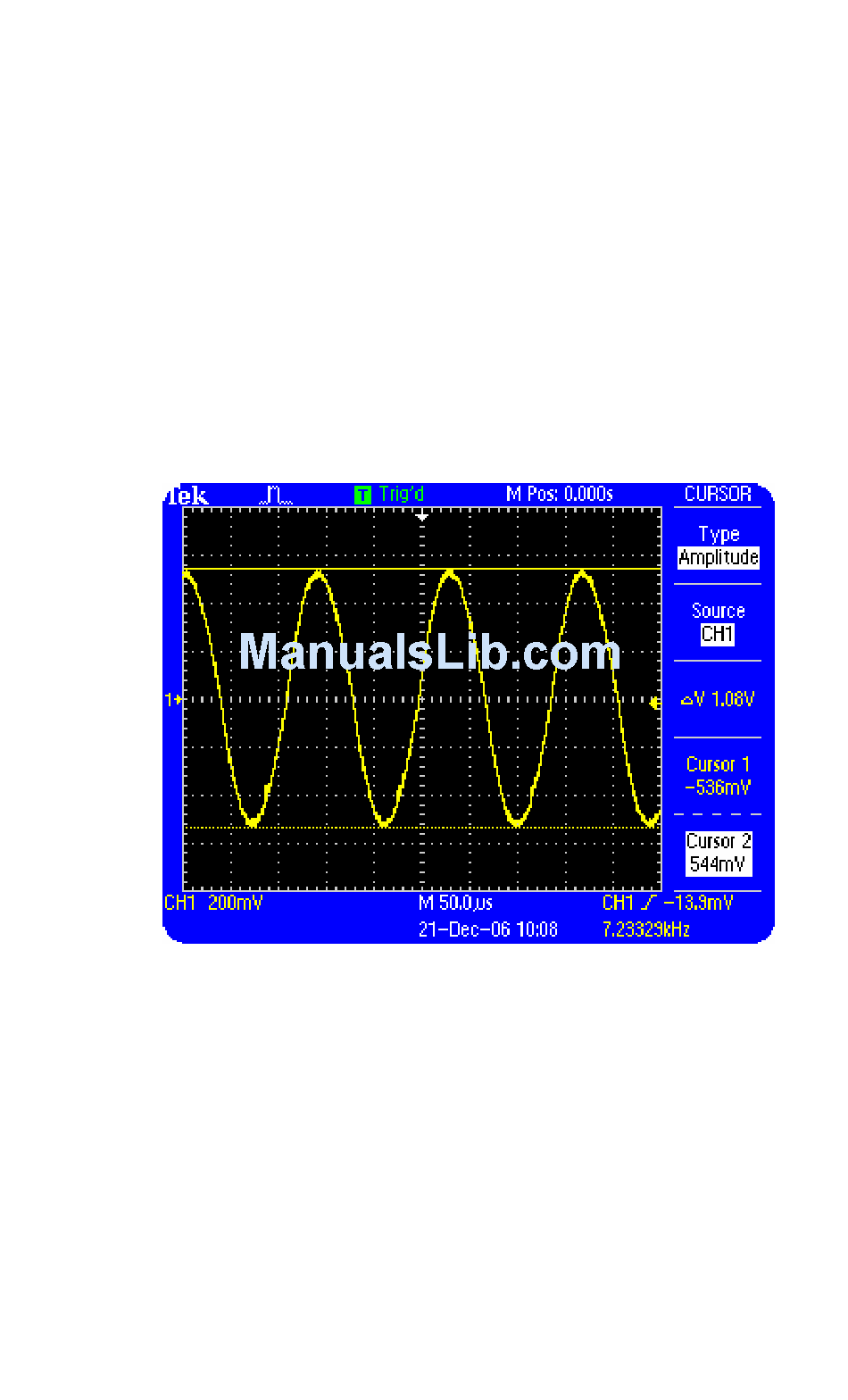

Figure 6.9: Volts/amplitude measurement for a 5 kHz sine
