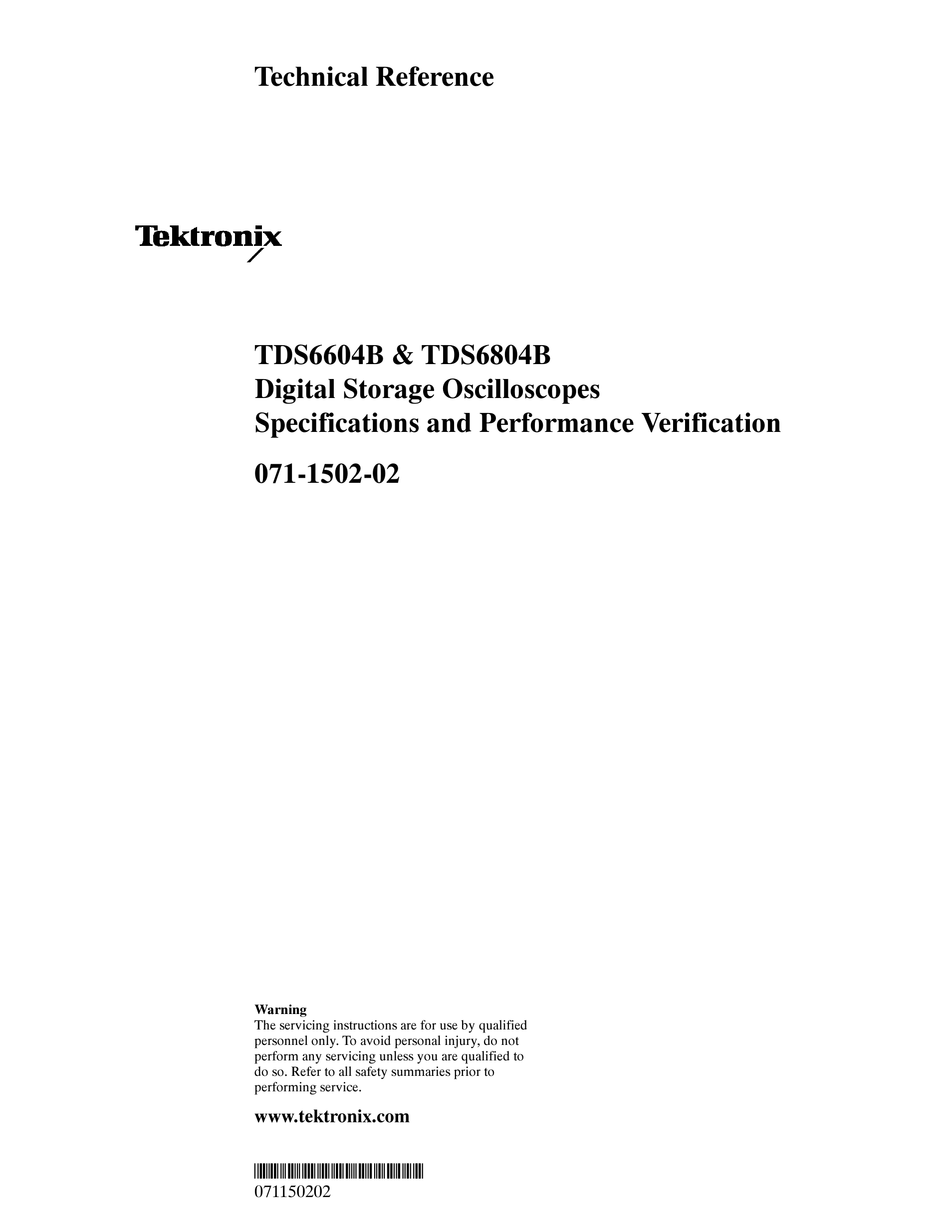

Technical Reference
TDS6604B & TDS6804B
Digital Storage Oscilloscopes
Specifications and Performance Verification
071-1502-02
Warning
The servicing instructions are for use by qualified
personnel only. To avoid personal injury, do not
perform any servicing unless you are qualified to
do so. Refer to all safety summaries prior to
performing service.
www.tektronix.com
*P071150202*
071150202

Advertisement

Table of Contents
loading

Related Manuals for Tektronix TDS6604B

Summary of Contents for Tektronix TDS6604B

  • Page 1 Technical Reference TDS6604B & TDS6804B Digital Storage Oscilloscopes Specifications and Performance Verification 071-1502-02 Warning The servicing instructions are for use by qualified personnel only. To avoid personal injury, do not perform any servicing unless you are qualified to do so. Refer to all safety summaries prior to performing service.
  • Page 2 Copyright © Tektronix, Inc. All rights reserved. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supercedes that in all previously published material. Specifications and price change privileges reserved. Tektronix, Inc., P.O. Box 500, Beaverton, OR 97077...

  • Page 3: Table Of Contents

    Table of Contents Specifications ..........1- -1 Product and Feature Description .
  • Page 4 Table of Contents TDS6000B Series Specifications and Performance Verification Technical Reference...

  • Page 5: Specifications

    Your TDS6000B Series is shown in Table 1- -1. Table 1- 1: TDS6000B Series Number of Maximum sample channels rate (real time) Model Bandwidth TDS6604B 6 GHz 20 GS/s TDS6804B 8 GHz 20 GS/s 1- 1 TDS6000B Series Specifications and Performance Verification Technical Reference...

  • Page 6: Acquisition Features

    Specifications Acquisition Features Separate Digitizers. Ensure accurate timing measurements with separate digitizers for each channel. Acquisition on multiple channels is always concurrent. The digitizers can also be combined to yield a higher sample rate on a single channel. Long Record Lengths. Maximum record length up to 32,000,000 points simulta- neously on all four channels.

  • Page 7: Measurement Features

    Specifications Measurement Features Cursors. Use cursors to take simple voltage, time, and frequency measurements. Automatic Measurements. Choose from a large palette of amplitude, time, and histogram measurements. You can customize the measurements by changing reference levels or by adding measurement gating. Trigger Features Simple and Advanced Trigger Types.

  • Page 8: Specification Tables

    Specifications Dedicated Front Panel Controls. The front panel contains knobs and buttons to provide immediate access to the most common oscilloscope controls. Separate vertical controls are provided for each channel. The same functions are also available through the screen interface. Data Storage and I/O.
  • Page 9 Analog bandwidth with 86 °F), derated by 20 MHz/° C above 30 °C (86 °F) P7380 or TCA-BNC adapter for TDS6604B 8 GHz, Full enhanced bandwidth, operating ambient 15 °C to Analog bandwidth with 30 °C (59 °F to 86 °F), derated by 20 MHz/ °C above 30 °C P7380 or TCA-BNC adapter (86 °F)
  • Page 10 Table 1- 2: Channel input and vertical specifications (Cont.) Characteristic Description Rise time, typical No digital bandwidth enhancement TDS6604B 10 - - 90% rise time is 70 ps vertical sensitivities ≥ 10 mV/div 20 - - 80% rise time is 53 ps vertical sensitivities ≥ 10 mV/div...
  • Page 11 Specifications Table 1- 2: Channel input and vertical specifications (Cont.) Characteristic Description Effective bits, typical Effective bits for 9 div p- - p sine wave input sampled at 50 mV/division and 20 GS/s. Input frequency Effective bits 10 MHz 5.7 bits 1 GHz 5.5 bits 1.5 GHz...
  • Page 12 Specifications Table 1- 3: Horizontal and acquisition system specifications (Cont.) Characteristic Description Record length Maximum record length supported by acquisition hardware, at any sample rate Mode Channels Record length Sample 1, 2, 3, or 4 32,000,000 Hi Res 1, 2, 3, or 4 2,000,000 ≤1.25 GS/s sample rate Seconds/division range...
  • Page 13 Specifications Table 1- 3: Horizontal and acquisition system specifications (Cont.) Characteristic Description Aperture uncertainty, typical Short term: ≤1.5 ps rms, records having duration ≤100 ms ≤800 fs rms, records having duration ≤10 s Long term: ≤15 parts per trillion rms, records having duration ≤1 minute ≤0 ns to 250 s Time base delay time range...
  • Page 14 Specifications Table 1- 4: Trigger specifications Characteristic Description Trigger jitter, typical 1.5 ps rms for low frequency fast rise time signal. n Edge Trigger Sensitivity, DC All sources, for vertical scale settings ≥10 mV/div and ≤1 V/div coupled Trigger Source Sensitivity ≤0.5 div DC to 50 MHz Main trigger, Ch1 - -...
  • Page 15 Specifications Table 1- 4: Trigger specifications (Cont.) Characteristic Description Width type 190 ps 250 ps 175 ps Transition type 330 ps 225 ps 175 ps Window 190 ps - - 20 ps 0 ps Transition trigger, delta time 1 ns to 1 s range Setup/Hold hold time violation For vertical settings from 10 mV/div to 1V/div at the...
  • Page 16 Specifications Table 1- 4: Trigger specifications (Cont.) Characteristic Description Delayed Trigger time delay range Delay time = 4.8 ns to Event count = 1 to 10 >250 s Trigger level or threshold range Trigger Source Sensitivity ±12 divisions from center of Any channel screen ±5 V...
  • Page 17 Specifications Table 1- 5: Serial Trigger specifications (optional) (Cont.) Characteristic Description nClock recovery jitter (RMS) <0.25% bit period + 7 ps rms for PRBS data patterns. <0.25% bit period + 6 ps rms for repeating 0011 data patterns. ± 5% of requested baud. Clock recovery tracking/acquisition range Minimum signal amplitude needed...
  • Page 18 Specifications Table 1- 7: Input/output port specifications Characteristic Description Rear-panel I/O ports Ports located on the rear panel Video output port Upper video port, DB-15 female connector, connect a second monitor to use dual-monitor display mode, supports Basic requirements of PC99 specifications Parallel port (IEEE 1284) DB-25 connector, supports the following modes: -standard (output only)
  • Page 19 Specifications Table 1- 7: Input/output port specifications (Cont.) Characteristic Description External reference input frequency range Input voltage, maximum Input impedance 1.5 kΩ, Cin = 40 pF. Measure impedance at >100 kHz to make the blocking capacitor invisible. n External reference 9.8 MHz to 10.2 MHz.
  • Page 20 Description 0.25 in × 1.25 in size UL198G and CSA C22.2, No. 59, fast acting: 8 A, 250 V (Tektronix part number 159-0046-00, Bussman ABC-8, Littelfuse 314008) 5 mm × 20 mm size IEC127, sheet 1, fast acting “F”, high breaking capacity: 6.3 A, 250 V (Bussman GDA 6.3, Littelfuse 21606.3)
  • Page 21 Specifications Table 1- 11: Environmental specifications Characteristic Description 5 °C to +40 °C (41 °F to +104 °F), excluding CDROM- Temperature, operating RW drives +10 °C to +40 °C (50 °F to +104 °F), including CDROM-RW drive - - 22 °C to +60 °C (8 °F to +140 °F) Nonoperating Humidity, operating 20% to 80% relative humidity with a maximum wet bulb...
  • Page 22 Voltage Changes, Fluctuations, and Flicker If interconnect cables are used, they must be low-EMI shielded cables such as the following Tektronix part numbers or their equivalents: 012-0991-01, 012-0991-02 or 012-0991-03 GPIB Cable; 012-1213-00 (or CA part number 0294-9) RS-232 Cable; 012-1214-00 Centronics Cable;...
  • Page 23 Specifications Table 1- 12: Certifications and compliances (Cont.) Category Standards or description EC Declaration of Conformity - - Compliance was demonstrated to the following specification as listed in the Official Journal of the Low Voltage European Union: Low Voltage Directive 73/23/EEC, amended by 93/68/EEC EN 61010-1/A2:1995 Safety requirements for electrical equipment for measurement control and laboratory use.
  • Page 24 Specifications 1- 20 TDS6000B Series Specifications and Performance Verification Technical Reference...

  • Page 25: Performance Verification

    Performance Verification Two types of Performance Verification procedures can be performed on this product: Brief Procedures and Performance Tests. You may not need to perform all of these procedures, depending on what you want to accomplish. H To rapidly confirm that the oscilloscope functions and was adjusted properly, just do the brief procedures under Self Tests, which begin on page 3- -1.

  • Page 26: Conventions

    Performance Verification Conventions Throughout these procedures the following conventions apply: H Each test procedure uses the following general format: Title of Test Equipment Required Prerequisites Procedure H Each procedure consists of as many steps, substeps, and subparts as required to do the test. Steps, substeps, and subparts are sequenced as follows: 1.
  • Page 27 Performance Verification Toolbar Click here to change to menu bar mode Menu bar Click here to change to toolbar mode Figure 2- 1: Toolbar and menu bar H The procedures assume you have connected a mouse to the oscilloscope so that you can click on the screen controls.
  • Page 28 Performance Verification 2- 4 TDS6000B Series Specifications and Performance Verification Technical Reference...

  • Page 29: Brief Procedures

    Brief Procedures The Self Tests use internal routines to confirm basic functionality and proper adjustment. No test equipment is required to do these test procedures. The Functional Tests utilize the probe-compensation output at the front panel as a test-signal source for further verifying that the oscilloscope functions properly. A BNC cable and a BNC-to-SMA adaptor or a TCA-SMA adapter are required to do these test procedures.

  • Page 30: Functional Tests

    Brief Procedures NOTE. If diagnostic error message 512 is displayed, run signal-path compensa- tion then re- -run diagnostic. d. Verify that no failures are found and reported on-screen. All tests should pass. e. Run the signal-path compensation routine: H Select Instrument Calibration from the Utilities menu ..This displays the instrument calibration control window.

  • Page 31: Verify All Input Channels

    Equipment One P7240 probe required One probe calibration and deskew fixture, Tektronix part number 067-0484-xx One BNC cable, Tektronix part number 012-0076-00 or the cable 012-0208-00, use adapter 015-0554- - 00 or 015-1018-00 using a BNC cable Prerequisites None 1. Initialize the oscilloscope: Push the front-panel DEFAULT SETUP button.
  • Page 32 Brief Procedures TDS6000B series SMA male- - to- - BNC female adapter BNC cable from the PROBE COMPENSATION output to the GAIN CAL SIG input on the fixture. GAIN CAL connections Figure 3- 1: Universal test hookup for functional tests - CH 1 shown 5.
  • Page 33 Brief Procedures 7. Set up the oscilloscope: H Push the front panel AUTOSET button. This sets the horizontal and vertical scale and vertical offset for a usable display and sets the trigger source to the channel that you are testing. H Pull down the Vert menu, select Vertical Setup, and then touch Offset.

  • Page 34: Verify The Time Base

    11. Remove the test hookup: Disconnect the BNC cable, fixture, and the probe from the channel input and the probe compensation output. Verify the Time Base Equipment One SMA cable, such as Tektronix part number 174-1427-XX required One TCA-SMA adapter Prerequisites None 1.
  • Page 35 Brief Procedures 7. Verify that the time base operates: Confirm the following statements. H One period of the square-wave probe-compensation signal is about five horizontal divisions on-screen for the 200 s/div horizontal scale setting. H Rotating the horizontal SCALE knob clockwise expands the waveform on the screen (more horizontal divisions per waveform period), counterclockwise rotation contracts it, and returning the horizontal scale to 200 s/div returns the period to about five divisions.

  • Page 36: Verify The A (Main) And B (Delayed) Trigger Systems

    9. Remove the test hookup: Disconnect the SMA cable from the channel input and the probe compensation output. Verify the A (Main) and B Equipment One SMA cable, such as Tektronix part number 174-1427-00 required (Delayed) Trigger Systems One TCA-SMA adapter...
  • Page 37 Brief Procedures 6. Verify that the main trigger system operates: Confirm that the following statements are true: H The trigger level readout for the A (main) trigger system changes with the trigger-LEVEL knob. H The trigger-LEVEL knob can trigger and untrigger the square-wave signal as you rotate it.
  • Page 38 Brief Procedures 3- 10 TDS6000B Series Specifications and Performance Verification Technical Reference...

  • Page 39: Prerequisites

    Performance Tests This section contains a collection of manual procedures for checking that the TDS6000B Series oscilloscopes performs as warranted. The procedures are arranged in four logical groupings: Signal Acquisition System Checks, Time Base System Checks, Triggering System Checks, and Output Ports Checks.

  • Page 40: Equipment Required

    50 Ω, 3 SMA female connectors Power divider Tektronix part number Checking Delay Between 015-0565-00 Channels Probe, 10X A P7240 probe Tektronix part number P7240 Signal Interconnection Variable amplitude to ±7 V; accuracy Generator, DC Calibra- Wavetek 9500 Checking DC Offset, Gain, tion to 0.1%...
  • Page 41 17. Adapter Male N-to-male SMA Maury part number 8023D1 Checking Analog Bandwidth 18. Adapter (three required) SMA female-to-female Tektronix part number Checking the delay between 015-1012-00 channels 19. Adapter (three required) SMA male-to-female BNC Tektronix part number Checking the delay between...

  • Page 42: Tds6000B Test Record

    Performance Tests TDS6000B Test Record Photocopy this table and use it to record the performance test results for your TDS6000B Digital Storage Oscilloscopes. TDS6604B and TDS6804B Test Record Instrument Serial Number: Certificate Number: Temperature: RH %: Date of Calibration: Technician:...
  • Page 43 Performance Tests TDS6604B and TDS6804B Test Record (cont.) Instrument Serial Number: Certificate Number: Temperature: RH %: Date of Calibration: Technician: TDS6604B and TDS6804B performance test Minimum Incoming Outgoing Maximum 50 mV Vert scale setting, + 878.3 mV __________ __________ + 921.7 mV - - 5 Div position setting, +0.5 V offset...
  • Page 44 Performance Tests TDS6604B and TDS6804B Test Record (cont.) Instrument Serial Number: Certificate Number: Temperature: RH %: Date of Calibration: Technician: TDS6604B and TDS6804B performance test Minimum Incoming Outgoing Maximum Offset accuracy 50 mV Vert scale setting, g, +0.5 V offset + 490.0 mV...
  • Page 45 Performance Tests TDS6604B and TDS6804B Test Record (cont.) Instrument Serial Number: Certificate Number: Temperature: RH %: Date of Calibration: Technician: TDS6604B and TDS6804B performance test Minimum Incoming Outgoing Maximum 50 mV Vert scale setting, g, +0.5 V offset + 490.0 mV...
  • Page 46 Performance Tests TDS6604B and TDS6804B Test Record (cont.) Instrument Serial Number: Certificate Number: Temperature: RH %: Date of Calibration: Technician: TDS6604B and TDS6804B performance test Minimum Incoming Outgoing Maximum Analog bandwidth 3.535 V __________ __________ 500 mV 2.12 V __________...
  • Page 47 Performance Tests TDS6604B and TDS6804B Test Record (cont.) Instrument Serial Number: Certificate Number: Temperature: RH %: Date of Calibration: Technician: TDS6604B and TDS6804B performance test Minimum Incoming Outgoing Maximum Digitally enhanced bandwidth 3.535 V __________ __________ 500 mV 2.12 V...
  • Page 48 Performance Tests TDS6604B and TDS6804B Test Record (cont.) Instrument Serial Number: Certificate Number: Temperature: RH %: Date of Calibration: Technician: TDS6604B and TDS6804B performance test Minimum Incoming Outgoing Maximum Delay between channels __________ __________ 30 ps Channel isolation 1.5 GHz...
  • Page 49 Performance Tests TDS6604B and TDS6804B Test Record (cont.) Instrument Serial Number: Certificate Number: Temperature: RH %: Date of Calibration: Technician: TDS6604B and TDS6804B performance test Minimum Incoming Outgoing Maximum Input impedance 48.75 Ω 51.25 Ω CH1 10 mV __________ __________ 48.75 Ω...
  • Page 50 Performance Tests TDS6604B and TDS6804B Test Record (cont.) Instrument Serial Number: Certificate Number: Temperature: RH %: Date of Calibration: Technician: TDS6604B and TDS6804B performance test Minimum Incoming Outgoing Maximum Serial trigger (Option ST only) Baud rate limits Serial word recognizer...

  • Page 51: Signal Acquisition System Checks

    Performance Tests Signal Acquisition System Checks These procedures check those characteristics that relate to the signal-acquisition system and are listed as checked under Warranted Characteristics in Specifica- tions. Refer to Table 4- -1 on page 4- -2 for test equipment specifications. Check DC Voltage Equipment Two dual-banana connectors (Item 5)
  • Page 52 Performance Tests TDS6000 series Output Sense DC calibrator Dual banana to BNC adapters BNC T connector 50 Ω coaxial cables Figure 4- 1: Initial test hookup b. Initialize the oscilloscope: Press DEFAULT SETUP. c. Modify the default settings: H From the toolbar, touch Horiz and select the Acquisition tab. H Touch Average and set the number of averages to 16.
  • Page 53 Performance Tests c. Set the vertical scale: Set the vertical SCALE to one of the settings listed in Table 4- -2 that is not yet checked. (Start with the first setting listed). Table 4- 2: DC Voltage measurement accuracy Position Scale Offset Generator...
  • Page 54 Performance Tests Turn on the measurement called mean and read the results here. Figure 4- 2: Measurement of DC accuracy at maximum offset and position Check against limits: H CHECK that the readout for the measurement Mean readout on screen is within the limits listed for the current vertical scale and position/offset/generator settings.

  • Page 55: Check Offset Accuracy

    Performance Tests Check Offset Accuracy Equipment Two dual-banana connectors (Item 5) required One BNC T connector (Item 6) One DC calibration generator (Item 9) One SMA male-to-female BNC adapter (Item 20) Two precision 50 Ω coaxial cables (Item 4) Prerequisites The oscilloscope must meet the prerequisites listed on page 4- - 1 WARNING.
  • Page 56 Performance Tests b. Initialize the oscilloscope: Press DEFAULT SETUP. c. Modify the default settings: H From the toolbar, touch Horiz and select the Acquisition tab. H Touch Average and set the number of averages to 16. 2. Confirm input channels are within limits for DC accuracy at maximum offset and position: Do the following substeps —...
  • Page 57 Performance Tests Table 4- 3: Offset accuracy (Cont.) Scale Position Offset Generator setting setting (Divs) setting setting Accuracy limits 500 mV +5 V +5.0 V +4.895 V to +5.105 V 0.0 V - - 65 mV to +65 mV - - 5 V - - 5.0 V - - 5.105 V to - - 4.895 V +2.5 V...
  • Page 58 Performance Tests Turn on the measurement called mean and read the results here. Figure 4- 4: Measurement of offset accuracy Check against limits: H CHECK that the readout for the measurement Mean readout on screen is within the limits listed for the current vertical scale and position/offset/generator settings.
  • Page 59 Performance Tests Check Maximum Input Equipment Two dual-banana connectors (Item 5) Voltage required One BNC T connector (Item 6) One 10X attenuator (Item 1) One DC calibration generator (Item 9) One SMA male-to-female BNC adapter (Item 20) Two precision 50 Ω coaxial cables (Item 4) Prerequisites The oscilloscope must meet the prerequisites listed on page 4- - 1 WARNING.
  • Page 60 Performance Tests TDS6000 series Output Sense DC calibrator Dual banana 10X Attenuator to BNC 50 Ω coaxial cables adapters BNC T connector Figure 4- 5: Initial test hookup b. Initialize the oscilloscope: Press DEFAULT SETUP. c. Modify the default settings: H From the toolbar, touch Horiz and select the Acquisition tab.
  • Page 61 Performance Tests H Touch Close. c. Set the vertical scale: H Set the vertical SCALE to one of the settings listed in Table 4- -4 that is not yet checked. (Start with the first setting listed). H From the toolbar touch VERT and touch Position. H Use the keypad to set vertical position to - -3 divisions (press CLR, 3, - -, and then ENTER, on the keypad).

  • Page 62: Check Maximum Input Voltage

    Performance Tests NOTE. When setting the Wavetek to output 10 V, use the following procedure: Press the Aux button Press the fourth soft key down (Selects the pulse with an exclamation point) Set the amplitude to 10 V Press the - >| key to select the pulse energy Set the energy to 50J Press the Output On key Press the Trig Pulse soft key to trigger the pulse (this will generate a 10 V pulse...

  • Page 63: Check Analog Bandwidth

    Performance Tests h. Test all channels: Repeat substeps a through g for all vertical channels. 3. Disconnect the hookup: a. Set the generator output to 0 V. b. Disconnect the cable, attenuator, and adapter from the generator output and the input connector of the channel last tested. Check Analog Bandwidth Equipment One sine wave generator (Item 12)
  • Page 64 0.35 db of the reference frequency (10 MHz) through the bandwidth frequency listed in Table 4- -5 on page 4- -27. The 0.35 db requirement is necessary to ensure a bandwidth that meets Tektronix specifications. You can perform bandwidth PV using an unleveled sine wave generator (with amplitude error >...
  • Page 65 Set the triggering coupling: Touch the Coupling DC button. Table 4- 5: Analog bandwidth Reference Test frequency Limits V ti l Vertical Horizontal amplitude lit d TDS6604B TDS6804B - 3 dB Limits scale scale (6 divisions) ≥42.4 mV 10 mV 60 mV 200 ps...
  • Page 66 Performance Tests Measure the test signal: H Set the frequency of the generator, as shown on screen, to the test frequency in Table 4- -5 that corresponds to the vertical scale set in substep c. See Figure 4- -8. H Set the horizontal SCALE to the horizontal scale setting in Table 4- -5 that corresponds to the vertical scale set in substep c.
  • Page 67 Performance Tests H Passed the 100 mV vertical scale setting just checked in this procedure. H Passed the Verify Internal Adjustment, Self Compensation, and Diagnostics procedure found under Self Tests, on page 3- -1. NOTE. Passing the signal path compensation confirms the signal path for all vertical scale settings for all channels.
  • Page 68 Performance Tests STOP. DO NOT use the vertical position knob to reposition any channel while doing this check. To do so invalidates the test. 1. Install the test hookup and preset the instrument controls: a. Initialize the front panel: Press the DEFAULT SETUP button. b.
  • Page 69 Performance Tests Hint: As you are adjusting the generator amplitude, push PUSH TO SET 50% frequently to speed up the updating of the waveform amplitude on screen. b. The horizontal SCALE should already be set to 500 ps. Now set it to 125 ps.
  • Page 70 Performance Tests Read results Display the waveforms Locate the time reference Align each cursor to the time points for these waveforms reference points Figure 4- 10: Measurement of channel delay g. Check against limits: Use the cursors to measure the skew from CH 1 to CH 2, CH 1 to CH 3, and CH 1 to CH 4.

  • Page 71: Check Channel Isolation (Crosstalk)

    Performance Tests Add the first CH 1 to CH 3 skew measurement to the second CH 1 to CH 3 skew measurement and divide the result by 2. Use Table 4- -6. m. Add the first CH 1 to CH 4 skew measurement to the second CH 1 to CH 4 skew measurement and divide the result by 2.
  • Page 72 Performance Tests Leveled TDS6000B series sine wave generator Output 50 Ω termination 50 Ω coaxial cable Figure 4- 11: Initial test hookup 1. Install the test hookup and preset the instrument controls: a. Initialize the oscilloscope: Press the DEFAULT SETUP button. b.
  • Page 73 Performance Tests H Connect TCA-adapters to the CH 2, CH 3, and CH 4 inputs. H Connect 50 termination to the adapters on the CH 2, CH 3, and CH 4 inputs. 2. Display the test signal: If your instrument bandwidth is ≤1.5 GHz, skip to step 4.
  • Page 74 Performance Tests H Set the Vertical SCALE for all channels to 50 mV. H Repeat steps a through g. H Move the signal to the CH 1 input, change the Trigger Source to CH 1, and move the 50 termination to the CH 4 input. H Press PUSH TO SET 50%.
  • Page 75 H Set the Horizontal SCALE to 2 to 5 cycles of the signal. H Set the generator frequency to 8 GHz (TDS6804B) or 6 GHz (TDS6604B) of your instrument. Set the test signal amplitude for about five divisions on screen. Now fine adjust the generator output until the CH 1 Amplitude readout indicates the amplitude is 1.0 V.

  • Page 76: Check Input Impedance

    Performance Tests H Move the coaxial cable to CH 1, set the Trigger SOURCE to CH 1, and move the 50 termination to the CH 4 input. H Set the Vertical SCALE of CH 1, CH 2, CH 3, and CH 4 to 20 mV. H Set the test signal amplitude for about five divisions on screen.
  • Page 77 Performance Tests 1. Install the test hookup and preset the instrument controls: a. Hook up the test-signal source: Connect, through a 50 precision coaxial cable, the output of the multimeter to CH 1 through adapters (see Figure 4- -12). b. Set the Vertical SCALE to 10 mV per division. 2.

  • Page 78: Time Base System Checks

    Performance Tests Time Base System Checks These procedures check those characteristics that relate to the time base system and are listed as checked under Warranted Characteristics in Specifications. Check Long-Term Sample Equipment One timer-counter (Item 11) Rate and Delay Time required One 50 Ω, precision coaxial cable (Item 4) Accuracy and Reference...
  • Page 79 Performance Tests 3. Confirm reference is within limits for logic levels: a. Display the test signal: H Move the cable from the timer-counter to the CH 1 input through an adapter. H Set the Vertical SCALE to 1 V. H Use the Vertical POSITION knob to center the display on screen. b.
  • Page 80 Performance Tests H Touch the Close button. H Set the Vertical SCALE to 50 mV. H Set the generator for a 10.0 MHz sine wave. H Set the generator to output a 4 division signal. Adjust the output until the Pk-Pk readout displays 200 mV. c.
  • Page 81 Performance Tests b. Set the oscilloscope controls: H Touch Utilities and select External Signals. H Touch the External button to select the internal reference (the button name changes to Internal). c. Perform a signal path compensation: H Touch Utilities and select Instrument Calibration. H Touch Calibrate and wait for the signal path compensation to finish.

  • Page 82: Check Delta Time Measurement Accuracy

    Performance Tests Check Delta Time One 50 Ω, precision coaxial cable (Item 4) Equipment Measurement Accuracy required One Connector, BNC “T”, male BNC-to-dual female BNC (Item 6) One Pulse Generator, Wavetek 9500 or equivalent (Item 21) One SMA female to BNC male connector (Item 24) One BNC elbow connector (Item 25) One SMA “T”, male to two SMA female connectors (Item 23) Two SMA termination connectors, short circuit, (Item 26)
  • Page 83 Performance Tests 50 Ω 2X attenuator. The attenuator is connected to one side of the female BNC T connector. The other side of the BNC T is connected to BNC male to SMA adapter. The SMA side is connected to the male side of the SMA T connector.
  • Page 84 Table 4- 7: Delta time measurement Instrument type Pulse rise time range Delta time accuracy limit ≤0.030 ns TDS6604B 140 ps - - 400 ps ≤0.030 ns TDS6804B 140 ps - - 400 ps e. Repeat for all other channels: H Note the vertical scale setting of the channel just confirmed.

  • Page 85: Trigger System Checks

    Performance Tests 2. Disconnect all test equipment from the instrument. Trigger System Checks These procedures check those characteristics that relate to the trigger system and are listed as checked in Specifications. Check Time Accuracy for Equipment One sine wave generator (Item 12) Pulse, Glitch, Timeout, required One 10X attenuator (Item 1)
  • Page 86 Performance Tests 2. Confirm that the trigger system is within time-accuracy limits for pulse- glitch or pulse-width triggering (time range ≤500 ns): a. Display the test signal: Set the output of the sine wave generator for a 100 MHz, five-division sine wave on screen. Press PUSH TO SET 50%.
  • Page 87 Performance Tests Set upper and lower limits that ensure triggering. Then change limits until triggering stops. Figure 4- 18: Measurement of time accuracy for pulse and glitch triggering 3. Confirm the trigger system is within time-accuracy limits for pulse-glitch or pulse-width triggering (time range >520 ns): a.

  • Page 88: Check Sensitivity, Edge Trigger, Dc Coupled

    Performance Tests H Touch Upper Limit; then use the multipurpose knob to slowly decrease the Upper Limit readout until triggering stops. H CHECK that the Upper Limit readout, after the oscilloscope loses triggering, is within 1.9 s to 2.1 s, inclusive. H Enter the time on the test record.
  • Page 89 Performance Tests TDS6000B Series Sine wave generator To AUX IN Figure 4- 19: Initial test hookup 2. Confirm the trigger system is within sensitivity limits (50 MHz): a. Display the test signal: H Set the generator frequency to 50 MHz. H From the toolbar, touch MEAS.
  • Page 90 Performance Tests H Press the Trigger Slope button to select the positive slope. H Adjust the Trigger LEVEL knob so that there is a stable trigger. CHECK that the trigger is stable for the test waveform on the positive slope. H Press the Trigger Slope button to select the negative slope.
  • Page 91 3. Confirm the AUX Trigger input: a. Display the test signal: H Remove the 10X attenuator and reconnect the cable to CH 1. H Set the signal amplitude as follows: TDS6604B 2.5 divisions TDS6804B 2.5 divisions H Now fine adjust the generator output until the CH 1 Amplitude...
  • Page 92 4. Confirm that the trigger system is within sensitivity limits (full bandwidth): a. Set the Horizontal Scale: Set the Horizontal SCALE to 200 ps. b. Display the test signal: H Set the generator frequency to full bandwidth as follows: TDS6604B 3 GHz TDS6804B 3 GHz H Set the test signal amplitude for about seven divisions on screen.

  • Page 93: Output Signal Checks

    Performance Tests H Set the generator amplitude on screen as follows: TDS6604B 4 divisions TDS6804B 4 divisions H Now fine adjust the generator output until the CH 1 Amplitude readout indicates the amplitude is as follows (Readout may fluctuate): TDS6604B...
  • Page 94 Performance Tests Check Outputs — CH 3 Two precision 50 Ω coaxial cables (Item 4) Equipment Signal Out and required One calibration generator (Item 10) Aux Trigger Out Two SMA male-to-female BNC adapter (Item 20) Prerequisites See page 4- - 1. Also, the oscilloscope must have passed Check DC Voltage Measurement Accuracy on page 4- - 13.
  • Page 95 Performance Tests H From the toolbar, touch Horiz and select the Acquisition tab. H Touch Average and set the number of averages to 64. H Touch the Close button. 2. Confirm AUX OUT is within limits for logic levels: a. Display the test signal: H Press the Vertical CH 3 button to turn off CH 3.

  • Page 96: Check Probe Compensation Output

    Performance Tests Check Probe Equipment Two dual-banana connectors (Item 5) Compensation Output required One BNC T connector (Item 6) Two precision 50 Ω coaxial cables (Item 4) One DC calibration generator (Item 9) One SMA-female-to-SMA female cable (Item 22) One SMA-to-BNC adapter (Item 20) Prerequisites See page 4- - 1.
  • Page 97 Performance Tests H Press PUSH TO SET 50%. H Use the Vertical POSITION knob to center the display on screen. H From the toolbar, touch Horiz and select the Acquisition tab. H Touch Average and set the number of averages to 128. 2.
  • Page 98 Performance Tests H Touch the Save Wfm to Ref1 Save button to save the probe compensation signal in reference 1. H Disconnect the cable from CH 1 and the probe compensation connector. H Touch the Display button to toggle it to on to displayed the stored signal.
  • Page 99 Performance Tests H Record the setting of the DC generator. H Adjust the output of the DC calibration generator until it precisely overlaps the base (lower) level of the stored probe compensation signal. (This value will be near - -370 mV). H Record the setting of the DC generator.

  • Page 100: Serial Trigger Checks (Option St Only)

    Performance Tests Serial Trigger Checks (Option ST Only) These procedures check those characteristics that relate to the serial trigger system and are listed as checked in Specifications. Check Serial Trigger Baud One precision 50 Ω coaxial cables (Item 4) Equipment Rate Limits and Word required One sine-wave generator (Item 12)
  • Page 101 Performance Tests H Adjust the trigger LEVEL to trigger at 25% (- -1 division) on the sine wave. Table 4- 8: Serial pattern data Serial pattern data Trigger location One UI before the 0 DB6D B6DB At the 0 B6DB 6DB6 One UI after the 0 6DB6 DB6D 2.
  • Page 102 Performance Tests Triggered 1 UI before a 0 Triggered on a 0 Triggered 1 UI after a 0 Figure 4- 28: Isolated 0 triggering 4- 64 TDS6000B Series Specifications and Performance Verification Technical Reference...
  • Page 103 Performance Tests p. Touch the Clear button. q. Enter data into Serial Pattern Data field for the next setting in Table 4- -8 that is not yet checked. r. Touch Apply. s. Verify that the instrument triggers one Unit Interval (UI) after the 0 in the input signal (see Figure 4- -28).
  • Page 104 Performance Tests Triggered 1 UI before a 1 Triggered on a 1 Triggered 1 UI after a 1 Figure 4- 29: Isolated 1 triggering 4- 66 TDS6000B Series Specifications and Performance Verification Technical Reference...
  • Page 105 Performance Tests m. Verify that the instrument triggers one Unit Interval (UI) after the 1 in the input signal (see Figure 4- -29). Enter pass or fail in the test record. 4. Verify that the pattern matching circuits can do isolated 0: a.
  • Page 106 Performance Tests Triggering on a 1. Step 1, 4, 7, 10, . . . Triggering 1 clock cycle after a 1. Step 2, 5, 8, 11, . . . Triggering 2 clock cycles after a 1. Step 3, 6, 9, 12, . . . Figure 4- 30: N modulo 3 triggering 4- 68 TDS6000B Series Specifications and Performance Verification Technical Reference...
  • Page 107 Performance Tests Check Serial Trigger Clock One precision 50 Ω coaxial cables (Item 4) Equipment Recovery Range required One sine-wave generator (Item 12) One TCA-BNC or TCA-SMA adapter (item 20) Prerequisites See page 4- - 1. Also, the oscilloscope must have passed Check DC Voltage Measurement Accuracy on page 4- - 13.
  • Page 108 Performance Tests H From the toolbar, touch Trig and select the A Event tab. H Touch the Select button. H Touch the Comm button. Set Source to Ch1, Type to R Clk, and Coding to NRZ. 2. Verify the clock recovery at frequency: a.
  • Page 109 Performance Tests Table 4- 10: Clock recovery input frequencies and baud rates (Cont.) Input frequency Recovered clock Baud rate 594 MHz 2500 Mbaud 477.5 MHz 1950 Mbaud 462.5 MHz 1850 Mbaud 462.5 MHz 1757 Mbaud 439 MHz 1850 Mbaud 312.5 MHz 1250 Mbaud 310 MHz 1240 Mbaud...
  • Page 110 Performance Tests Recovered clock locked (1250 MHz) Recovered clock locked (625 MHz through 304.8 kHz) A possible display with the recovered clock not locked Figure 4- 32: Clock recovery 4- 72 TDS6000B Series Specifications and Performance Verification Technical Reference...

  • Page 111: Sine Wave Generator Leveling Procedure

    Performance Tests Sine Wave Generator Leveling Procedure Some procedures in this manual require a sine wave generator to produce the necessary test signals. If you do not have a leveled sine wave generator, use one of the following procedures to level the output amplitude of your sine wave generator.
  • Page 112 Performance Tests 2. Set the Generator: H Set the sine wave generator to a reference frequency of 10 MHz. H Adjust the sine wave generator amplitude to the required number of divisions as measured by the oscilloscope. 3. Record the reference level: Note the reading on the level meter. 4.
  • Page 113 Performance Tests TDS6000B series Sine wave generator Output Level meter Connect the sine wave generator to the oscilloscope and the power sensor as Power sensor directed in the text. Input Figure 4- 34: Equipment setup for maximum amplitude 3. Record the reference level: H Disconnect the sine wave generator from the oscilloscope.
  • Page 114 Performance Tests 4- 76 TDS6000B Series Specifications and Performance Verification Technical Reference...
