Introduction to Oscilloscopes and Probes
Square and Rectangular Waves
A square wave represents voltage signals that turn on and
off at regular intervals. It is a standard wave used for testing
amplifiers, televisions, radios, and computer circuits.
A rectangular wave represents high and low time periods of
a square wave that are unequal.

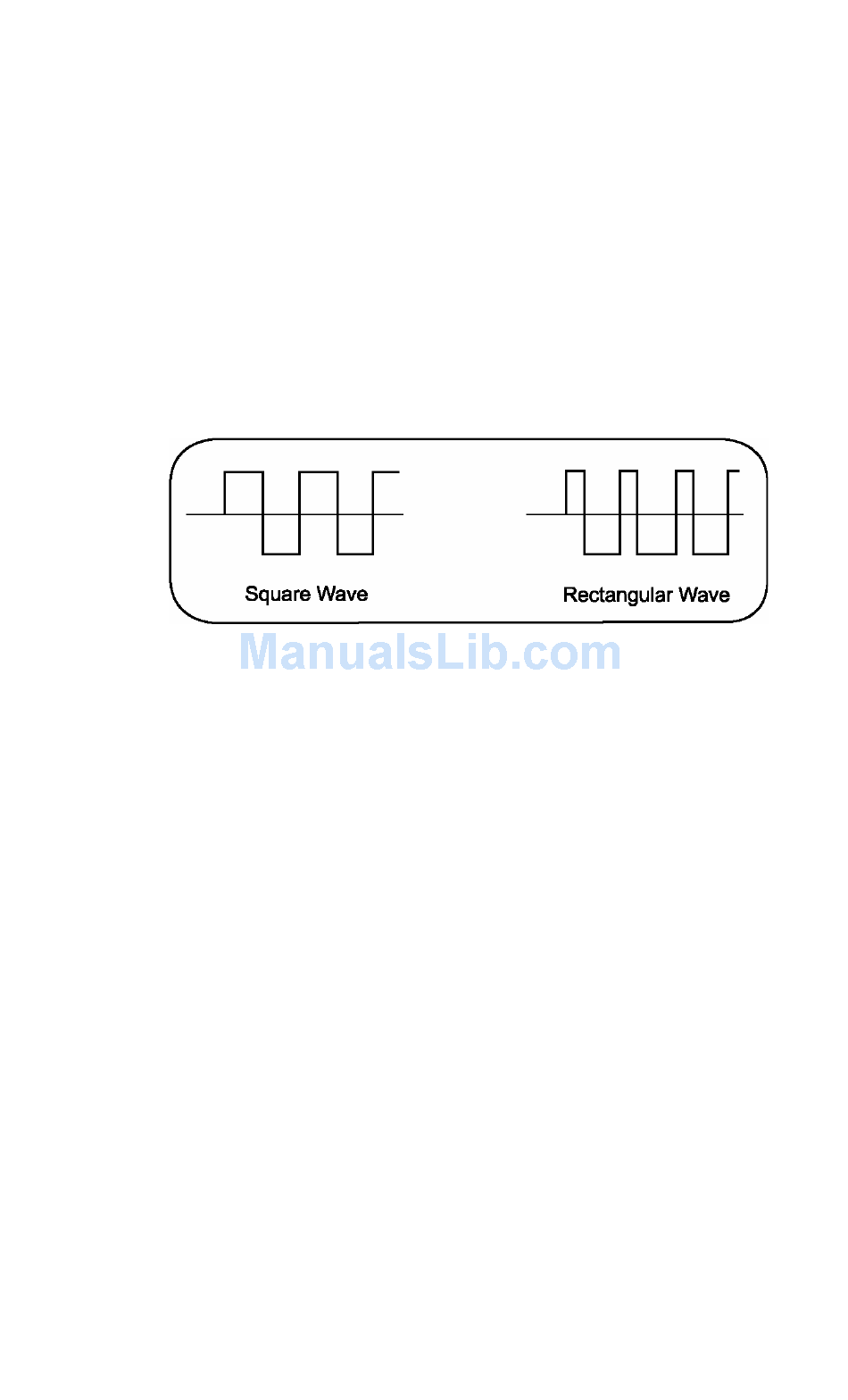

Figure 1.8 shows square and rectangular waves.
1-16 TDS1000B and TDS2000B Series Oscilloscopes – Operator Training Kit
Figure 1.8: Square and rectangular waves
