Getting Started with the TDS1000B and TDS2000B Series Oscilloscopes
The three subsections of the VERTICAL controls are
located on the front panel as shown in Figure 2.8. The
TDS1000B and TDS2000B oscilloscopes have a set of
VERTICAL controls for each channel.

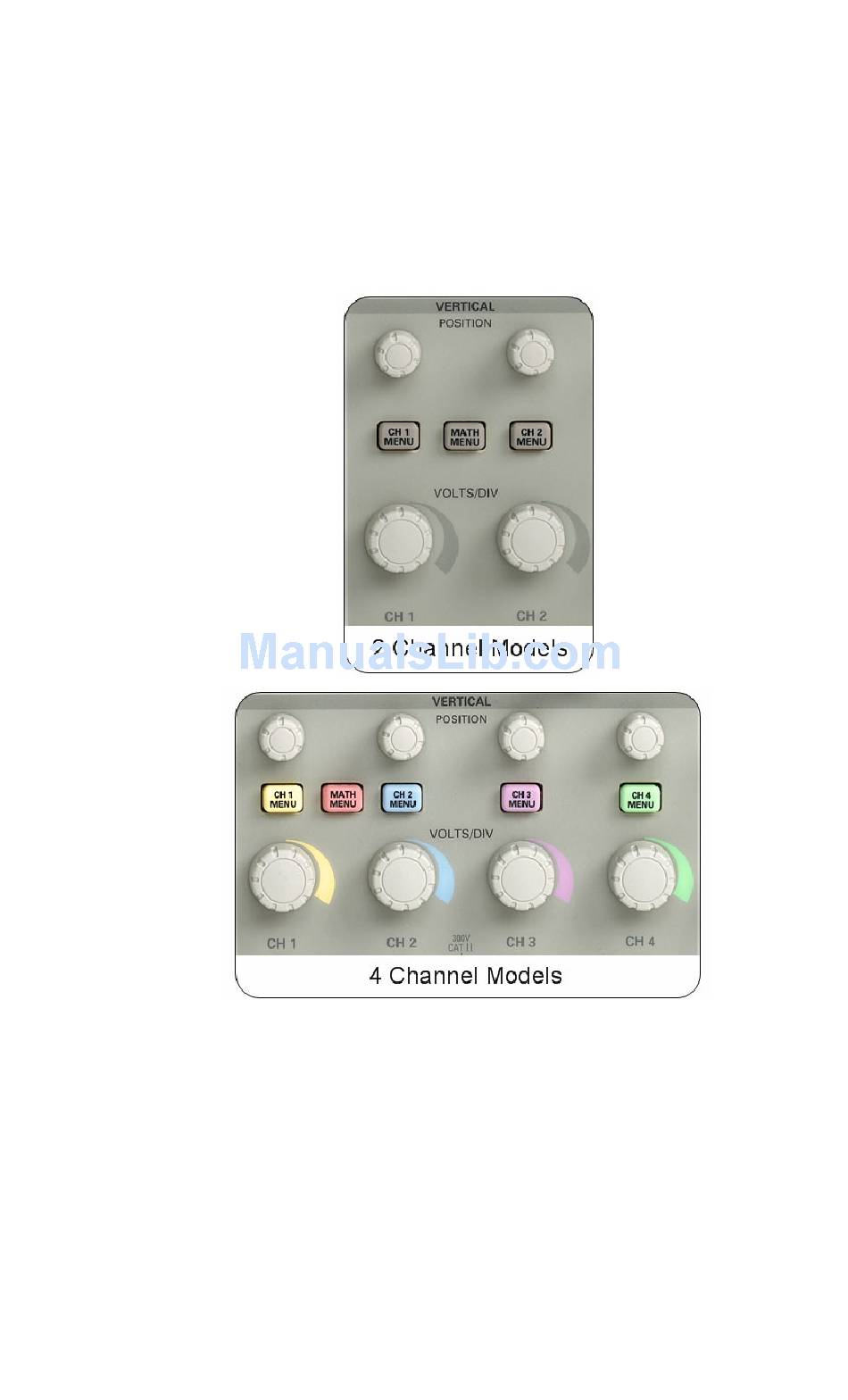

Figure 2.8: TDS1001B and TDS2024B VERTICAL controls
TDS1000B and TDS2000B Series Oscilloscopes – Operator Training Kit
2-27
