2
Getting Started with the TDS1000B and TDS2000B Series Oscilloscopes
Sine
The oscilloscope displays the following options when a sine
wave or a similar signal is detected by the Autoset function.
These options are shown in Figure 2.28.

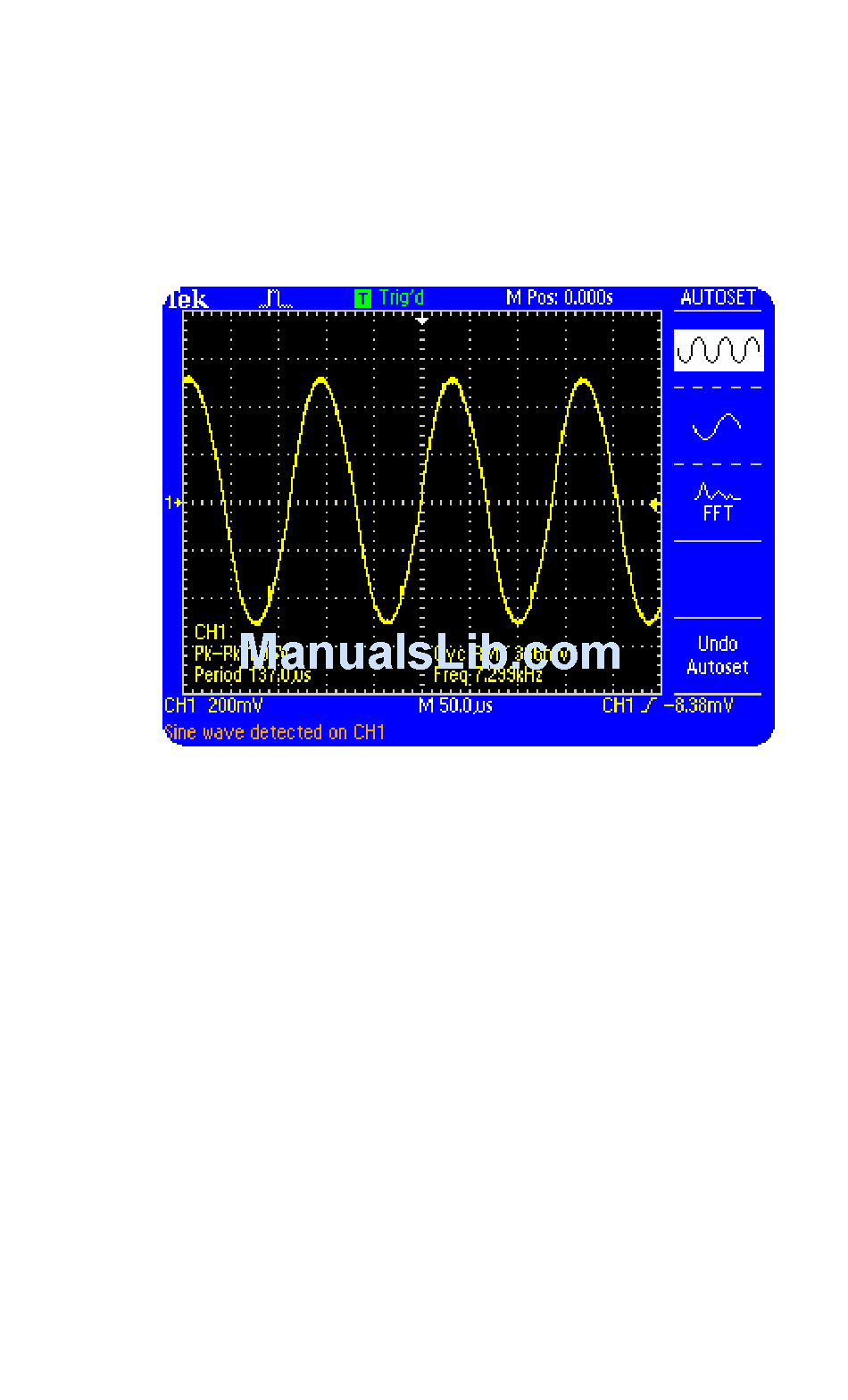

Figure 2.28: AUTOSET options for sine waves
TDS1000B and TDS2000B Series Oscilloscopes – Operator Training Kit
2-105
