3 Components and Power Supply

3.4.2 PoE Source

The ATLAS 60 NW router can be powered through an Ethernet cable that complies with the PoE 802.3af standard
(15.4 W per port).
To use the PoE source option, you need to install a MiniPoE card.
3.4.2.1 Installing the MiniPoE card
To correctly insert the card, please follow these steps:
(1) Switch off the device and remove the data cables, as described in section
(2) Remove the device from the workplace and place it in a stable, safe location where it can be easily accessed
and handled.

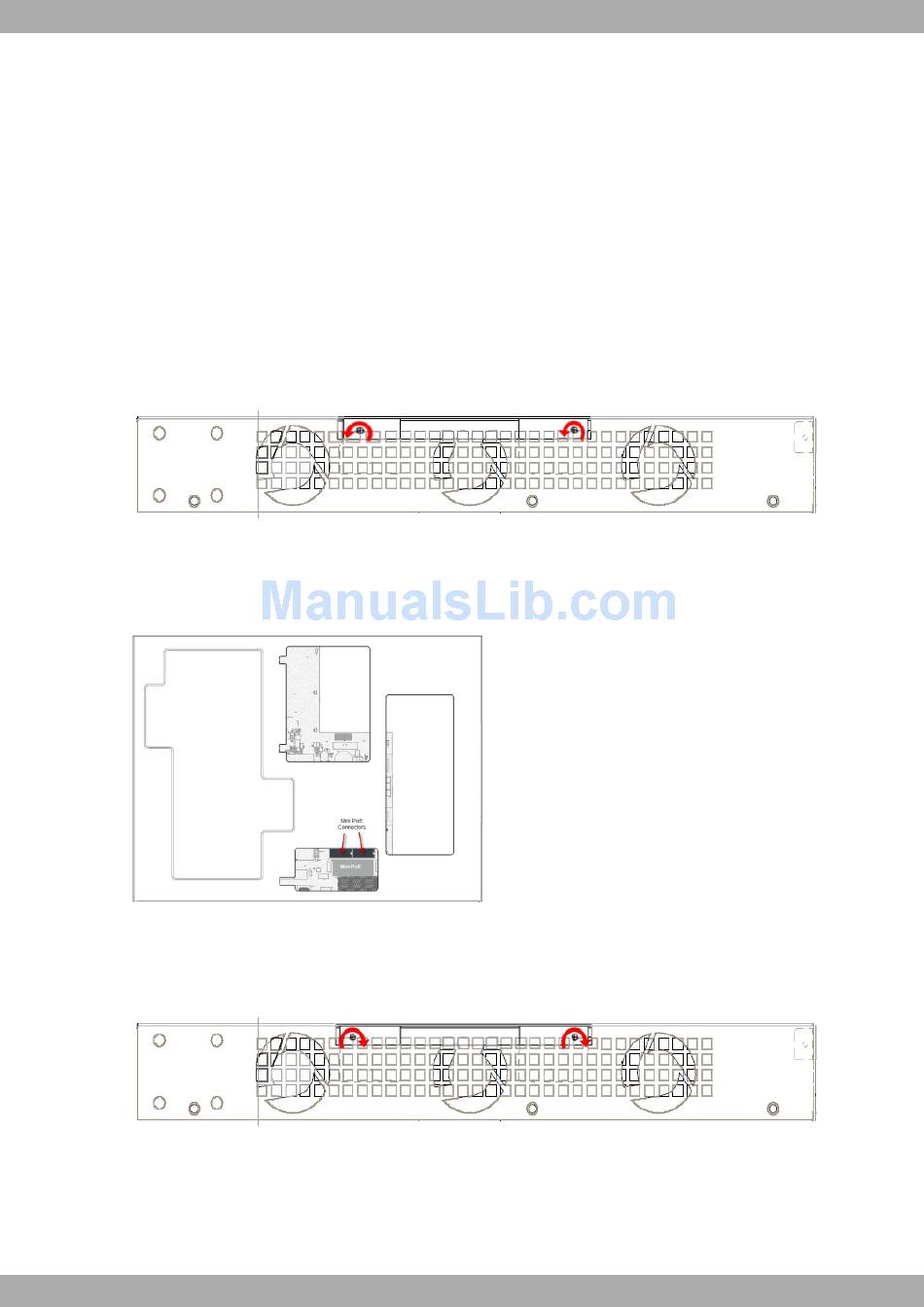

(3) Remove the two screws from the side panel to be able to dismantle the flap that gives access to the MiniPoE
card. Please see
Removing the screws for the top panel flap
Fig. 29:
(4) Once the screws have been removed, slide the flap and lift it (making sure no grooves attach the flap to the top
panel). Place it in a safe location.
(5) Find the place where the MiniPoE card needs to be located.
MiniPoE card location
Fig. 30:
(6) Place the PMC card so that this adjusts to the two connectors. This operation must be carried out carefully,
without forcing any piece or part of the device. Check that the card is clearly settled over the connectors.
(7) Reposition the top panel flap and screw it into place. Please see
Rearranging the top panel's flap screws
Fig. 31:
(8) Connect and switch on the device, as described in section
lems, switch off the device and make sure that the above steps have been carried out correctly. If the problem
persists, please contact your supplier
(9) Connect a terminal to the console and check that the device detects the MiniPoE card:
18
Fig. 29 on page 18.
Disconnecting
Fig. 31 on page 18.
Connecting on page 17. Should you detect any prob-
