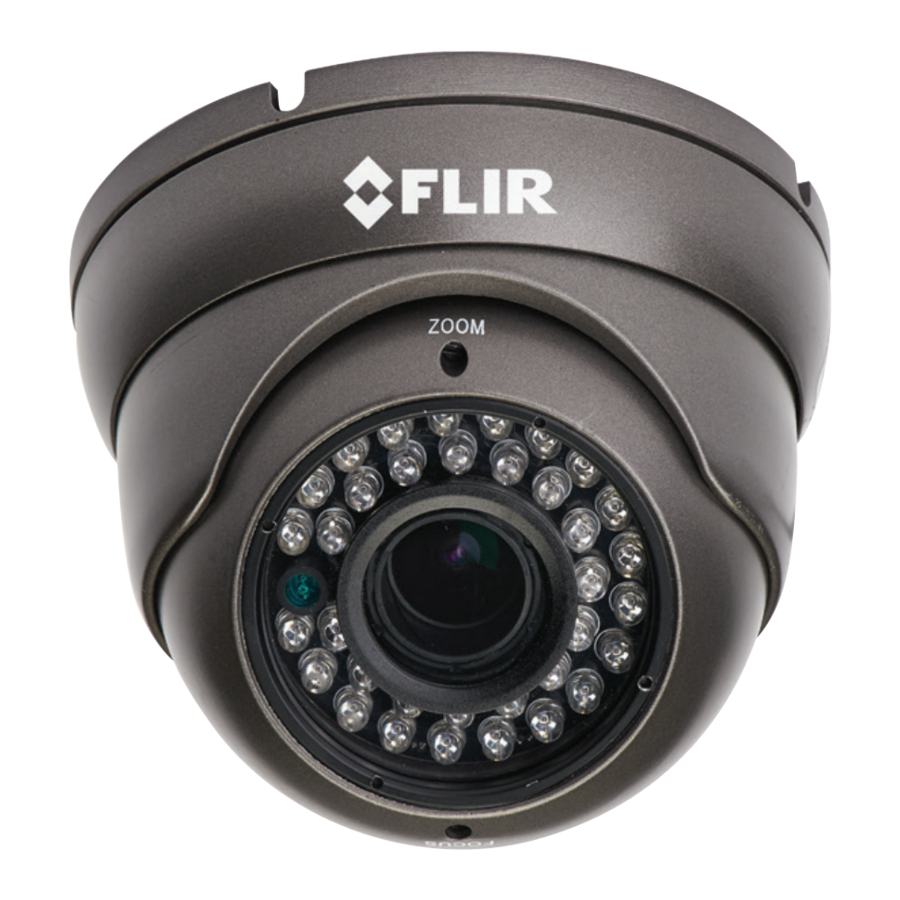

FLIR DBV534TL - 900 TVL Varifocal Outdoor Ir Dome Camera Quick Setup Guide

Table of Contents

Contents

1 Contents
2 Features
3 Safety Precautions
4 Installing the Camera
5 Setting up the Camera
6 Camera Specifications
7 Dimensions
8 Documents / Resources
- 8.1 Download manual

Features

1/3" Sony Exmor™ Megapixel sensor with 960H DSP
Outstanding image clarity in low light conditions
Advanced 3D Digital Noise Reduction (3D-DNR)
110ft (33m) Smart IR Night Vision*
2.8–12mm Varifocal Lens
External Zoom/Focus Adjustment
IP66 Weatherproof Rating**
3-Axis Design for Wall/Ceiling Mounting
Vandal Resistant
12V DC Operation

* IR Illumination range under ideal conditions. Objects at or beyond this range may be partially or completely obscured, depending on the camera application.
** Not recommended for submersion in water.

Safety Precautions

Use an appropriate low voltage power cable to prevent fire or electrical shock.
Make sure to install the camera in an area that can support the camera weight.
There are no user serviceable parts inside the camera. Please do not disassemble the camera.
Do not clean the lens cover with an abrasive cleaning material. Please use a soft cloth to clean the lens cover.

Installing the Camera

ATTENTION - Test the camera prior to selecting a permanent mounting location by temporarily connecting the camera(s) and cables to the DVR.

To install the camera:

Use the included Allen key to loosen the dome cover from the camera base.
Rotate the camera base counterclockwise to separate it from the ball camera and dome cover.
Use the camera base to drill holes for the cables and mounting screws.
NOTE: Insert the included drywall anchors if installing the camera in drywall.
Feed the BNC / power cable through the camera base. Connect the video and power cable as shown in the next section 'Setting up the Camera'.
Mount the camera base to the wall or ceiling using the included screws.
Position the dome cover over the camera and screw it clockwise halfway onto the camera base.
Move the ball camera to the desired position. While holding the ball camera firmly in place, screw the dome cover the rest of the way to secure it to the camera base. Holding the camera prevents it from moving while installing the dome cover.
Use the included Allen key to tighten the dome cover.

Setting up the Camera

Connect the BNC connector of the camera to the video cable.
DC Power—Power Adapter: Connect a 12V DC Power Adapter (not included) to the camera. Plug the Power Adapter into a local power outlet.

DC Power—Power Pigtail (not included): Connect a Power Pigtail to the camera. Connect the terminating wires of the cable directly to the DC power source.

NOTE: For pigtail connection with 12V DC, make sure to check polarity specifications on the power adapter.

A REGULATED UL / CSA APPROVED 12V DC power supply is REQUIRED for use with this camera. Use of a non-regulated, non-conforming power supply can damage this product and voids the warranty.

Use the included flat-head screwdriver to adjust the ZOOM and FOCUS control screws as required.
Insert rubber weatherproofing plugs (2x) firmly into the ZOOM and FOCUS screw-holes to ensure a weatherproof seal.

Camera Specifications

Image Sensor	1/3" Sony Exmor™ Megapixel CMOS
Video Format	NTSC
Effective Pixels	H: 1305 V: 1049
Horizontal Resolution	900 TVL
Scan System	2:1 Interlace
Sync System	Internal
S / N Ratio	48dB
Iris	AES
AES Shutter Speed	1/60 ~ 1/100,000 sec.
Min. Illumination	0.01 LUX (IR Off) 0 LUX (IR LEDs On)
Video Output	Composite 1.0Vpp @ 75ohm
Lens Focal Length / Type	2.8–12mm F1.4 / Varifocal
FOV (Diagonal)	29–93°
Termination	Video: BNC Female
IR Range / Qty.	110ft / 33m; 36 IR LED's
Power Requirement	12V DC ± 10%
Power Consumption	470mA MAX with IR LED
Operating Temp. Range	–4° ~ 122°F / –20° ~ 50°C
Environmental Rating	IP66
Dimensions	Diameter: 4.8" (121mm) Height: 3.4" (86mm)
Weight (including stand)	1.4lbs / 0.6kg
