Puzzi 8/1 C

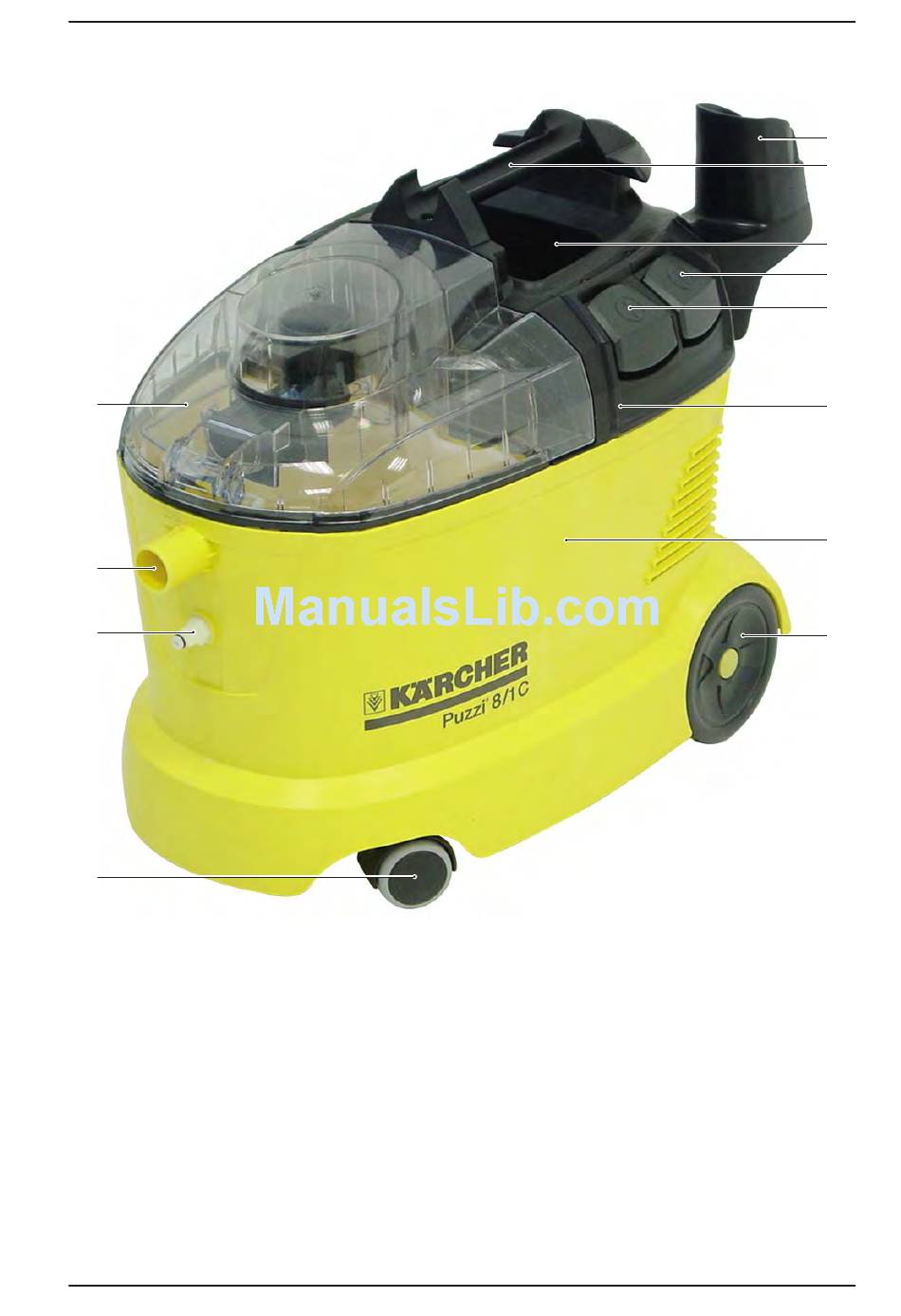

View from the front
12
11
10
9
1 Bracket, floor tool with suction tube
2 Carrying handle and suction tube storage
during transport
3 Filler opening, fresh water
4 Switch (S2), water pump (M2)
5 Switch (S1), suction motor (M1)
6 Unit housing, upper section
New Unit Information 05.2007
7 Unit housing, lower section
8 Wheel (2x)
9 Swivel casters (2x)
10 Connection, fresh-water hose
11 Connection, suction hose
12 Cover, wastewater tank
Unit functions
1
2
3
4
5
6
7
8
