Puzzi 8/1 C

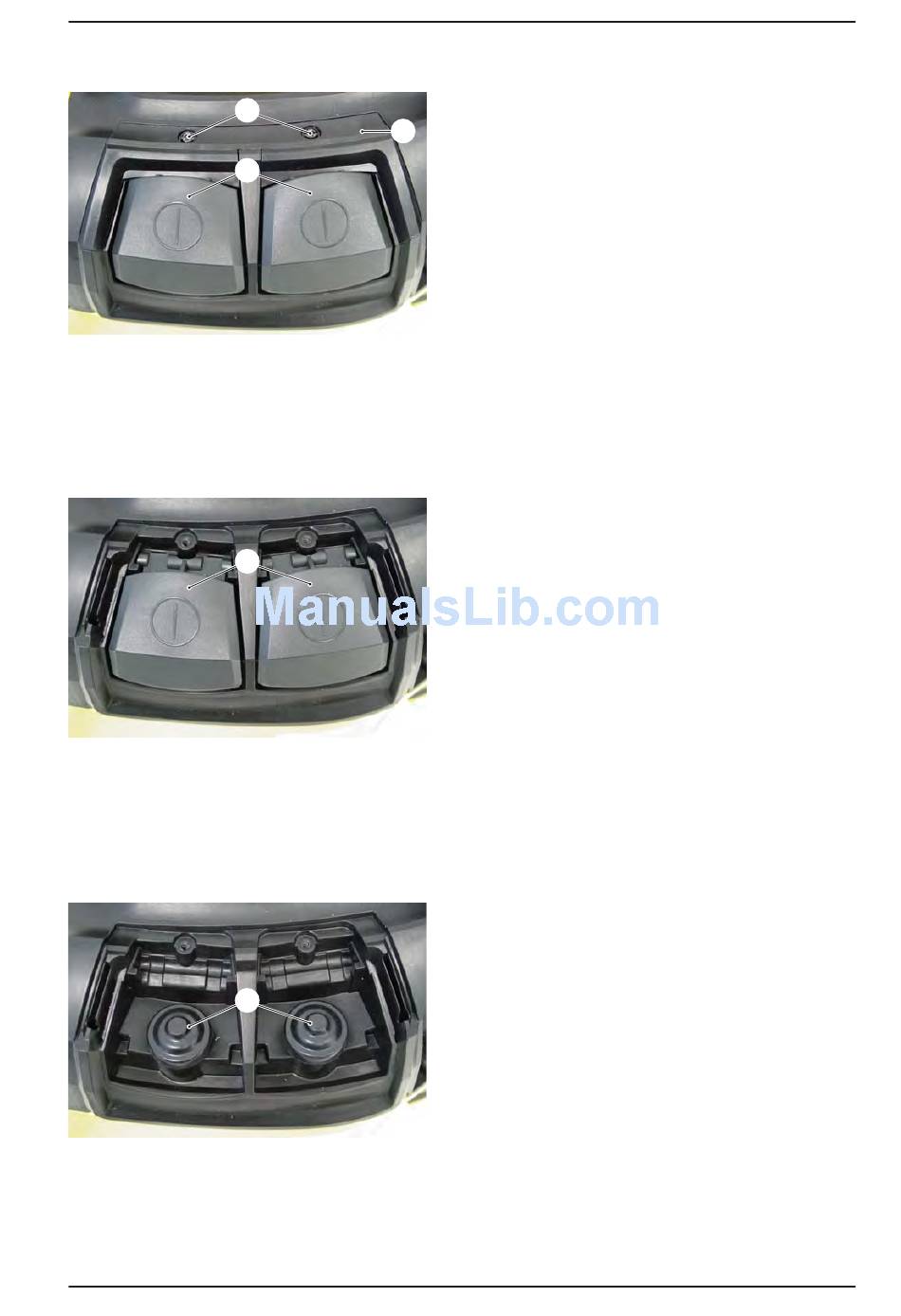

Unit switch
Switch elements installed
Bracket removed
Switch elements removed
New Unit Information 05.2007
1
2
3
3
4
Basic settings and service procedures
Replacing switches
If one of the switches (S1) or (S2) is defective,
it can be removed and replaced as follows.
– Remove the retaining screws (1).
– Remove switch elements bracket (2).
– Remove switch elements (3).
– Remove rubber covers (4).
(Procedure continued on Page 18)
1 Retaining screws (2x), bracket, switch
elements
2 Bracket, switch elements
3 Switch elements
4 Rubber covers
Page 17 / 29
