Kärcher Puzzi 8/1 C Unit Information page 21

Hide thumbs

Advertisement

Puzzi 8/1 C

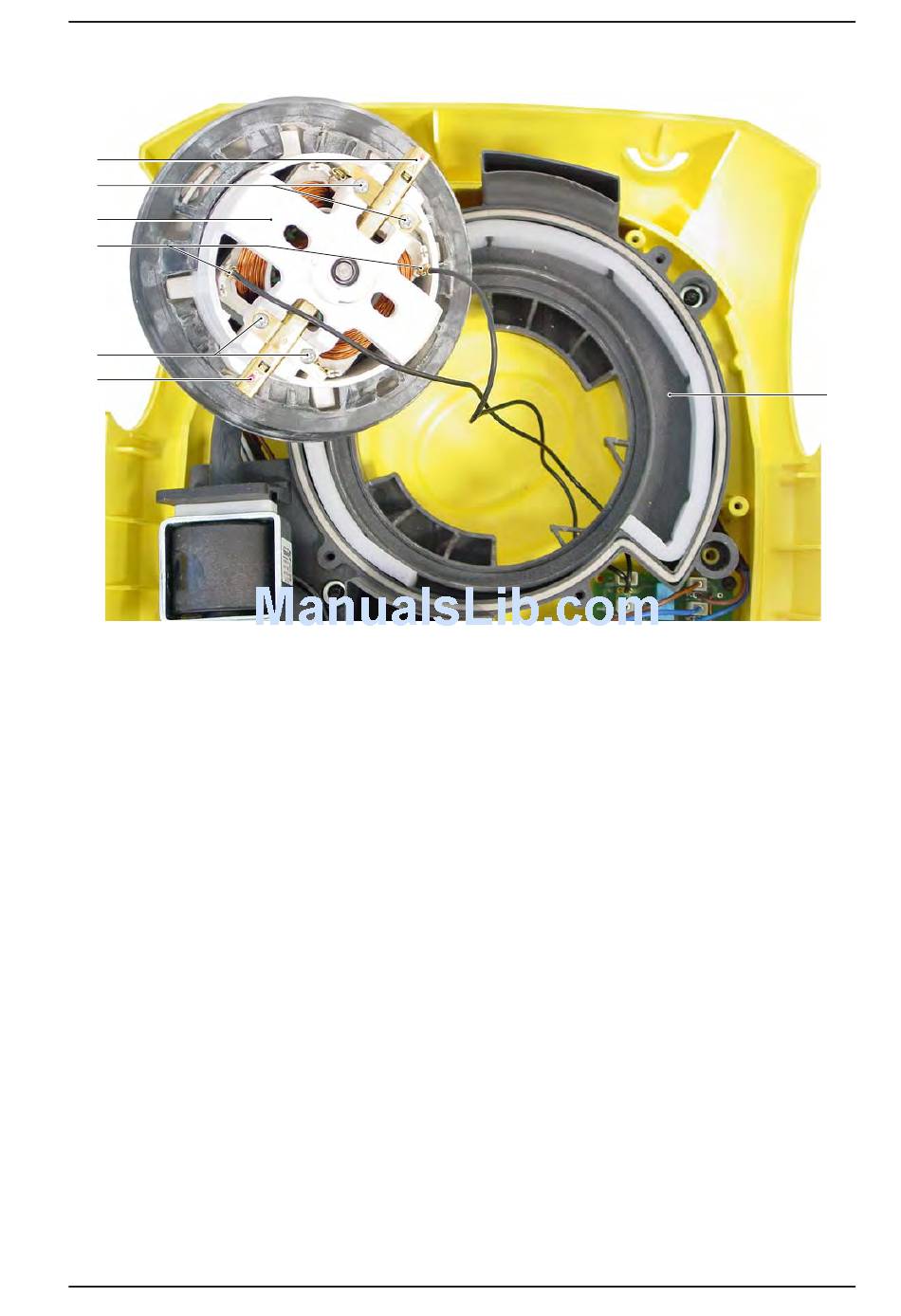

Suction motor
2
3
5
4
3
2
1 Holder, suction motor
2 Carbon brushes
3 Retaining screws, carbon brushes
4 Cable connection, suction motor
5 Suction motor (M1)
New Unit Information 05.2007
Basic settings and service procedures
Replacing the carbon brushes
– Remove the retaining screws (3).
– Remove carbon brushes (2).
– Install new carbon brush in reverse order.
1
Page 21 / 29
