Puzzi 8/1 C
Guide handle
Guide handle
Loosen/tighten Allen screws
Allen key bracket
New Unit Information 05.2007
1
2
3
4
3
5
4
Basic settings and service procedures

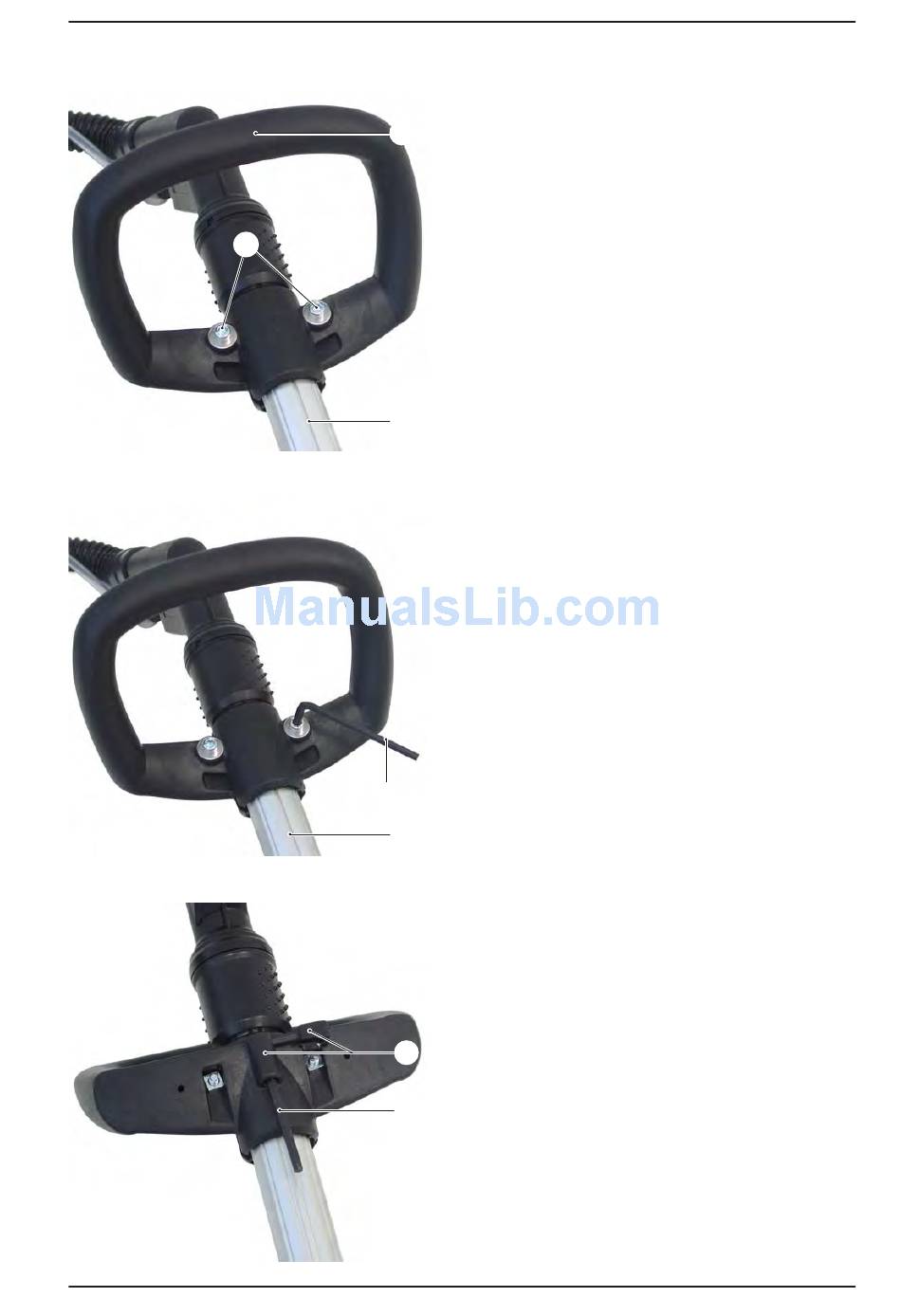

Adjusting the guide handle
The guide handle is pushed onto the spray /
suction tube and is attached with two Allen
screws.
– Loosen Allen screws (2) with an Allen key (4).
– Push the guide handle (1) up or down onto the
spray / suction tube until the required position
is reached.
– Tighten Allen screws (2).
Allen key bracket
The Allen key (4) is inserted in a bracket (5) on
the underside of the guide handle (1).
1 Guide handle
2 Allen screws (2x)
3 Spray / suction tube
4 Allen key
5 Bracket, Allen key
Page 25 / 29
