Basic settings and service procedures

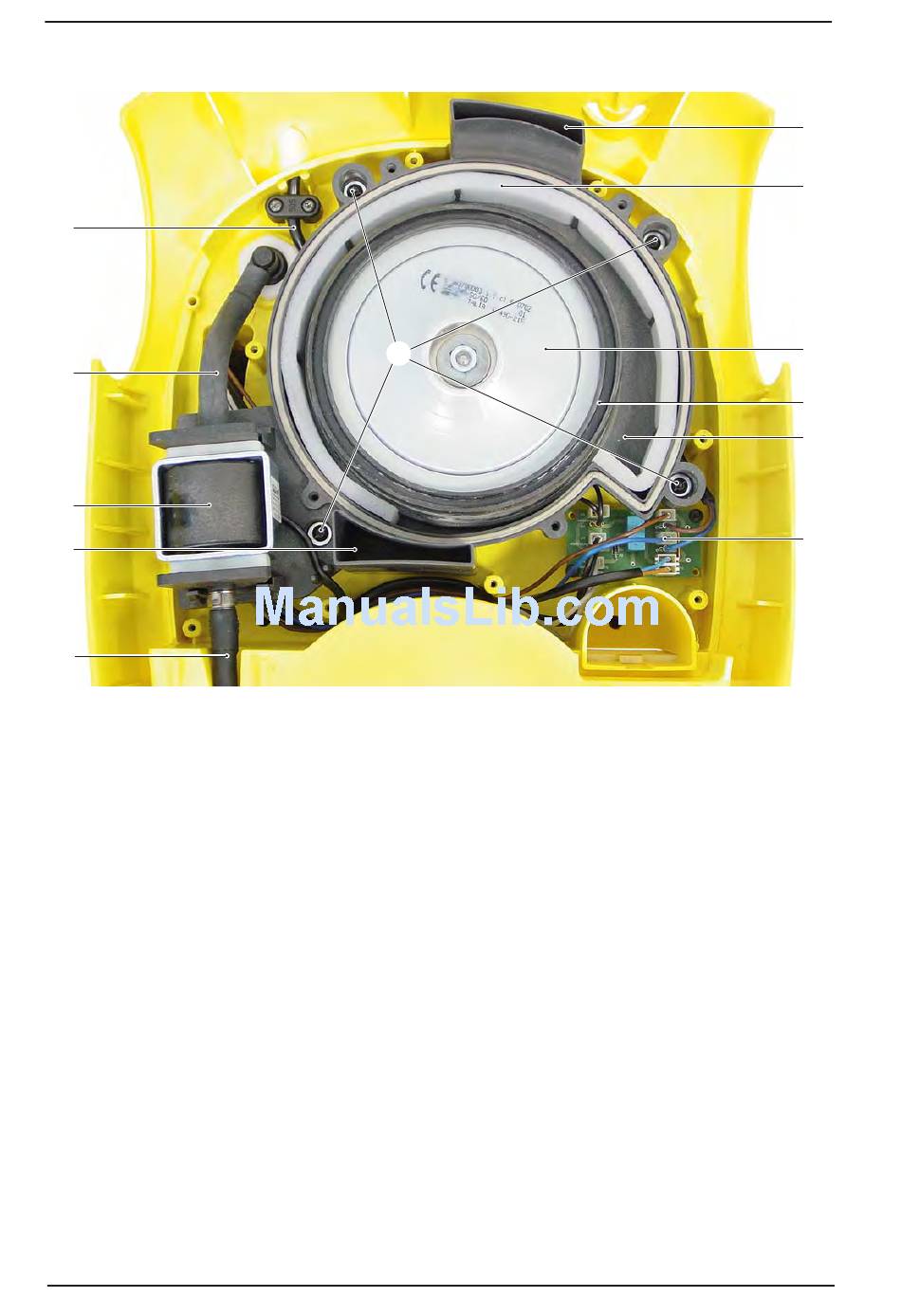

Suction motor cover removed
10
9
8
1
7
1 Air discharge, motor cooling air
2 Sound insulation
3 Suction motor (M1)
4 Rubber ring
5 Holder, suction motor
6 Printed circuit board (N1)
7 Fresh-water hose to the spray/suction
hose
8 Water pump (M2)
9 Water hose from fresh-water tank
10 Mains cable
11 Retaining screws, suction motor holder
Page 20 / 29
11
Remove suction motor
– Pull the suction motor (3) out of the suction
motor holder (5).
– Remove wiring (see Page 21, Item 4) at the
suction motor (3).
Puzzi 8/1 C
New Unit Information 05.2007
