Basic settings and service procedures
Spray nozzle
Spray nozzle on the floor tool
Spray nozzle on the floor tool
1 Latch tabs
2 Spray tube
3 Spray nozzle
Page 24 / 29
1
2
3
2
3

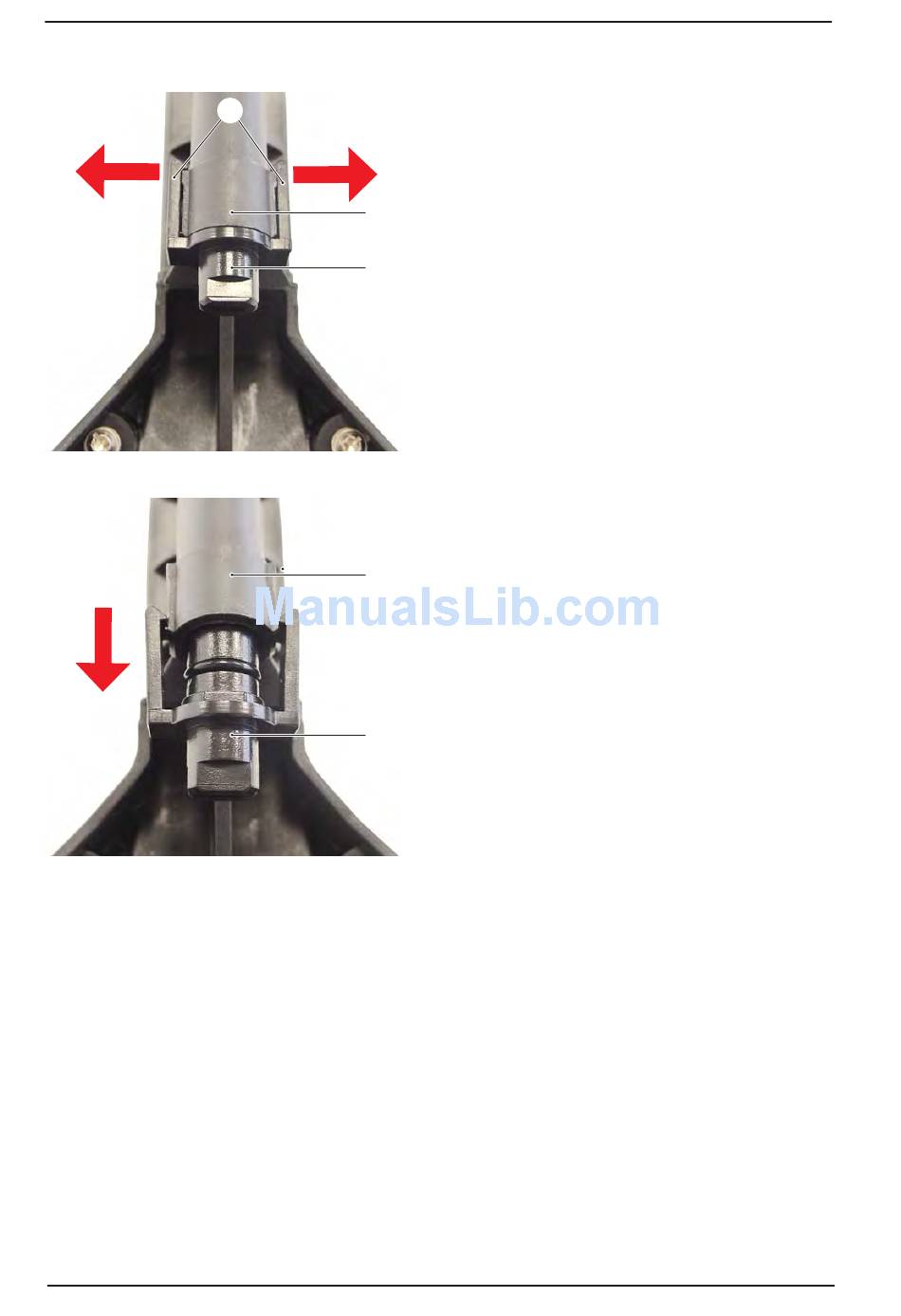

Replacing the spray nozzle
The spray nozzle (3) is inserted in the spray tube
(2) and is held by two latching tabs (1) on the left
and right. If it is defective or blocked it can be
replaced as follows:
– Push latch tabs (1) apart (see arrow direction).
– Pull the spray nozzle (3) towards the front and
out of the spray tube (2).
– Push the new spray nozzle into the spray tube
(2), until it audibly latches into position.
New Unit Information 05.2007
