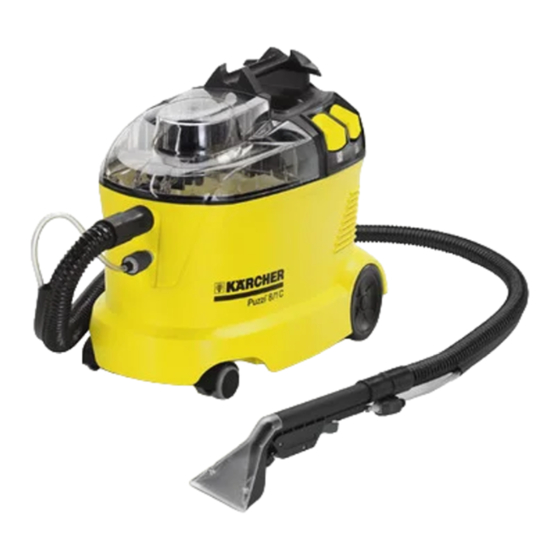

Kärcher Puzzi 8/1 C Quick Start

Karcher puzzi 8/1 c pressure washer quickstart
Hide thumbs

Advertisement

QUICKSTART
Puzzi 8/1 C
Start up
1
A
2
Operation
1
A
2
A
3
A
Warning
These are only brief instructions! Please read and comply with these instructions prior to using or servicing your
appliance.
The non-compliance of the operating and safety instructions may lead to damages of the appliance and to dangers
for the operator and other persons.
B
A
B
B
B
EN
C
B
C
C
C
A Insert the coupling of the fresh water
hose into the fresh water connection
of the appliance and lock into place.
B Insert the suction hose into the suction
hose connection on the appliance.
A Connect the fresh water hose to the
elbow of the manual nozzle.
B Connect the suction hose to bender of
the manual nozzle.
A Remove the lid.
B Remove the wastewater container from
the appliance.
C Refill the wastewater container with fresh
water.
A Fill in fresh water.
B Fill detergent solution/the tab including i
ts water soluble packaging into the fresh
water reservoir. The fill level must not
exceed the "MAX" mark. After 5 minutes,
the tab will be completely dissolved.
C Insert dirt water reservoir into the appliance
and attach lid.
A Press the spray switch to turn on the
detergent pump.
B Press the suction switch to turn on the
suction turbine.
C If the dirt water reservoir is full, switch
off the suction and spray switches.
5.964-158.0 02/12
1

Advertisement

loading

  Related Manuals for Kärcher Puzzi 8/1 C

  Summary of Contents for Kärcher Puzzi 8/1 C

  • Page 1 QUICKSTART Puzzi 8/1 C Warning These are only brief instructions! Please read and comply with these instructions prior to using or servicing your appliance. The non-compliance of the operating and safety instructions may lead to damages of the appliance and to dangers for the operator and other persons.
  • Page 2: Finish Operation

    QUICKSTART Operation A Use the lever on the bender to spray on detergent solution. B Spray and suction off detergent solution in one work cycle. A Highly soiled spots should be presoaked and the detergent solution should soak 5 to 10 minutes. B Vacuum up the detergent solution in the course of the second work step.
