Puzzi 8/1 C

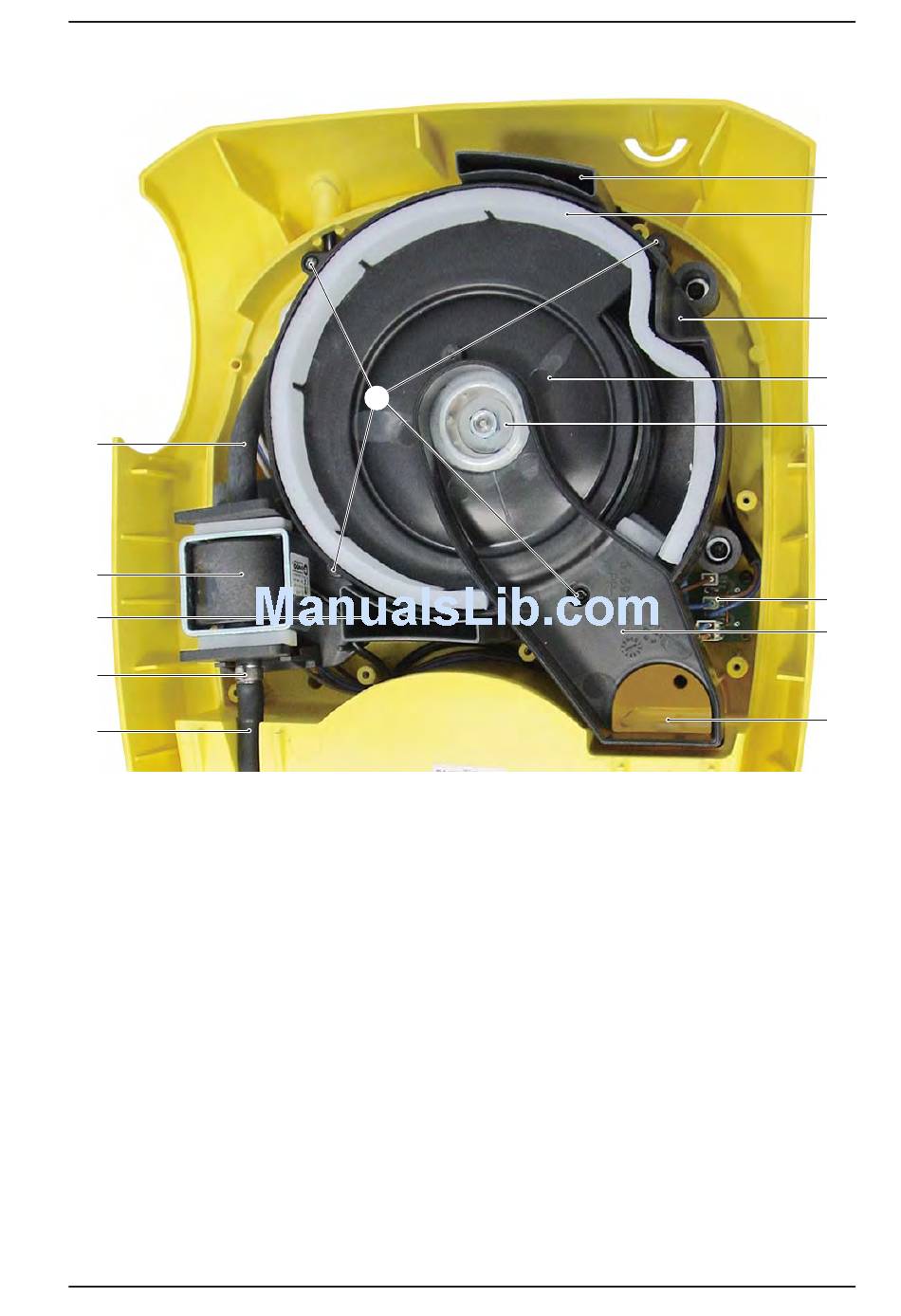

Floor cover removed

1 Air discharge, motor cooling air

2 Sound insulation

3 Holder, suction motor

4 Cover, suction motor (air circuit)

5 Suction motor (M1)

6 Printed circuit board (N1)

7 Air duct, drawn in air from floor tool

8 Air intake opening with fluff strainer

9 Fresh-water hose to the spray/ suction

hose

10 Hose clamp

11 Water pump (M2)

12 Water hose from fresh-water tank

13 Retaining screws (4x), suction motor

cover

New Unit Information 05.2007

Basic settings and service procedures

Remove floor cover

– Remove retaining screws (see Page 9,

Item 8).

– Remove floor cover.

Remove suction motor cover

– Remove retaining screws (13).

– Remove suction motor cover.

Page 19 / 29
