Puzzi 8/1 C

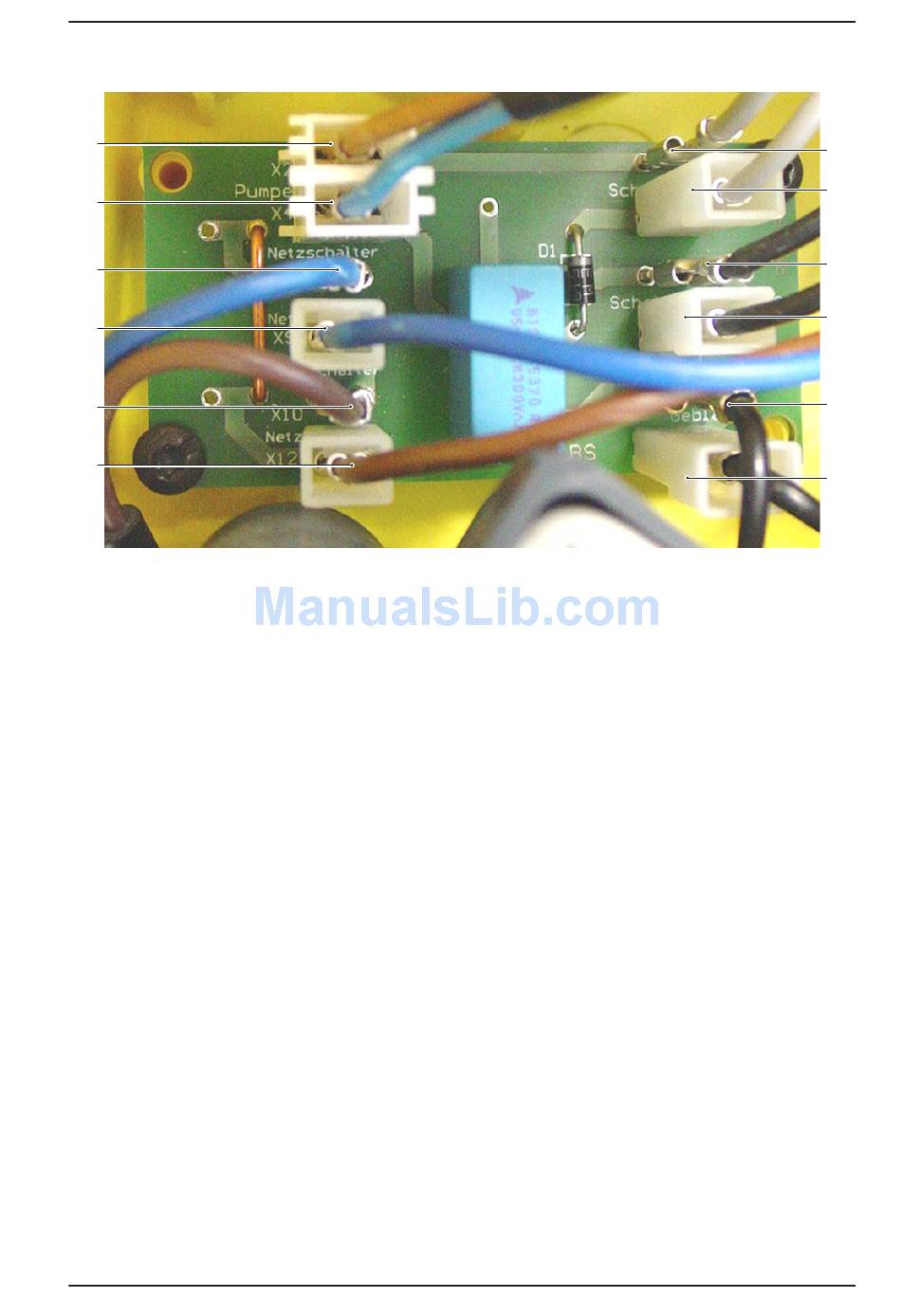

Printed circuit board (N1)

1 Terminal strip (X1), switch (S2), water

pump (M2)

2 Terminal strip (X3), switch (S2), water

pump (M2)

3 Terminal strip (X5), switch (S1), suction

motor (M1)

4 Terminal strip (X7), switch (S1), suction

motor (M1)

5 Terminal strip (X8), suction motor (M1)

6 Terminal strip (X6), suction motor (M1)

7 Terminal strip (X12), mains connection to

switch (S1), suction motor (M1)

8 Terminal strip (X10), mains connection

9 Terminal strip (X9), mains connection to

switch (S1), suction motor (M1)

10 Terminal strip (X11), mains connection

11 Terminal strip (X4), water pump (M2)

12 Terminal strip (X2), water pump (M2)

New Unit Information 05.2007

Unit functions

Page 11 / 29
