Puzzi 8/1 C
Wheel
5
4

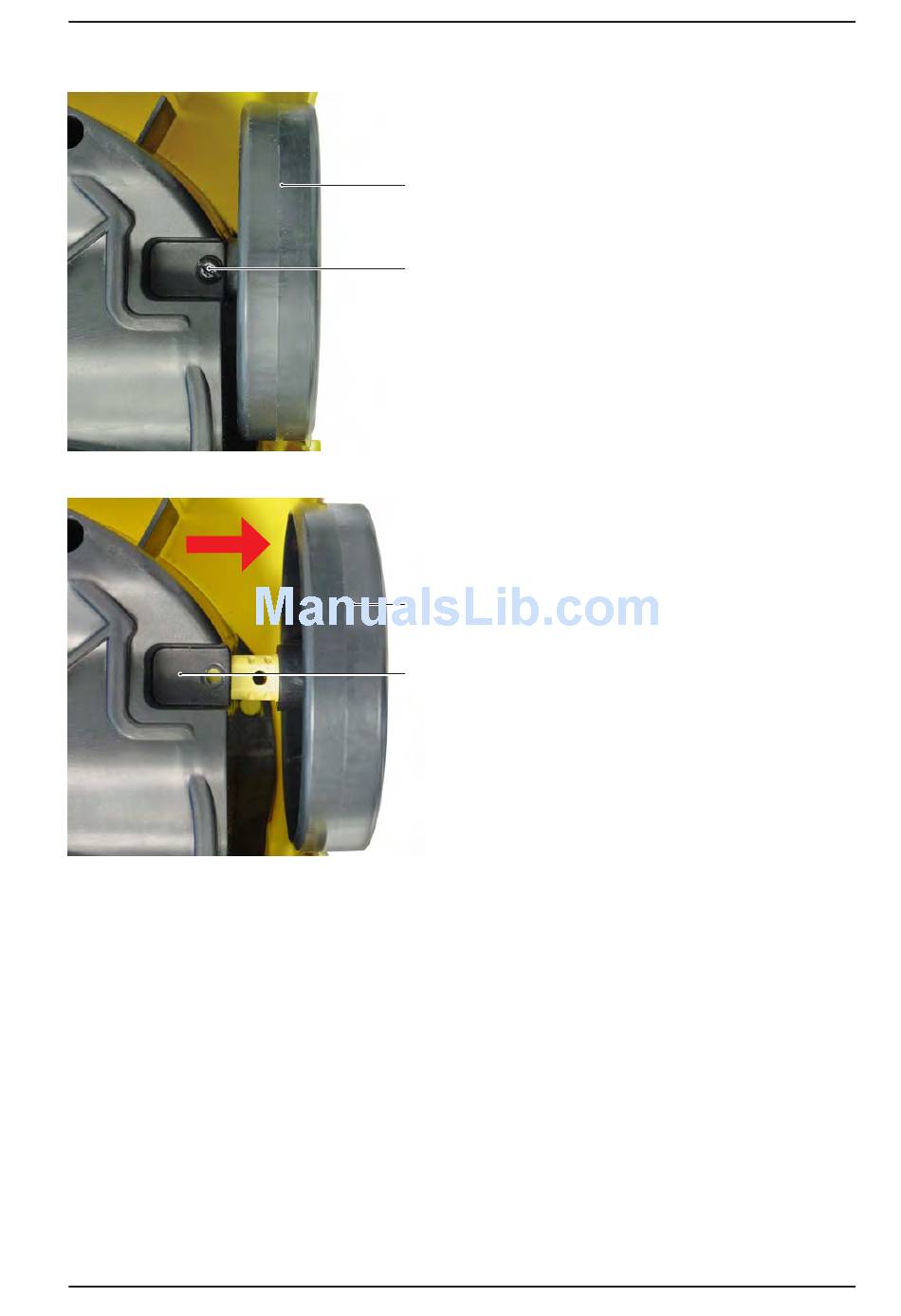

Wheel installed
Wheel, retaining screw removed
1 Wheel, installed
2 Retaining screw, wheel
3 Holder, wheel
New Unit Information 05.2007
Basic settings and service procedures
Replacing the wheel
– Remove the retaining screw (2).
– Pull the wheel (1) out of the holder (3).
– Install new wheel in reverse order.
1
2
1
3
Page 23 / 29
