Puzzi 8/1 C

Spray / suction tube

Threaded connection closed

Threaded connection open

Floor tool for carpets

New Unit Information 05.2007

Threaded connection

The threaded connection (2) is used to connect

the handle section (see Page 12, Item 5) and the

floor tool (4) with the spray / suction tube.

– Open threaded connection (left-hand thread)

(3) and push onto the spray / suction tube.

– If the spray / suction tube is fitted up to the limit

stop in the threaded connection, close the

threaded connection again (left-hand thread)

(2).

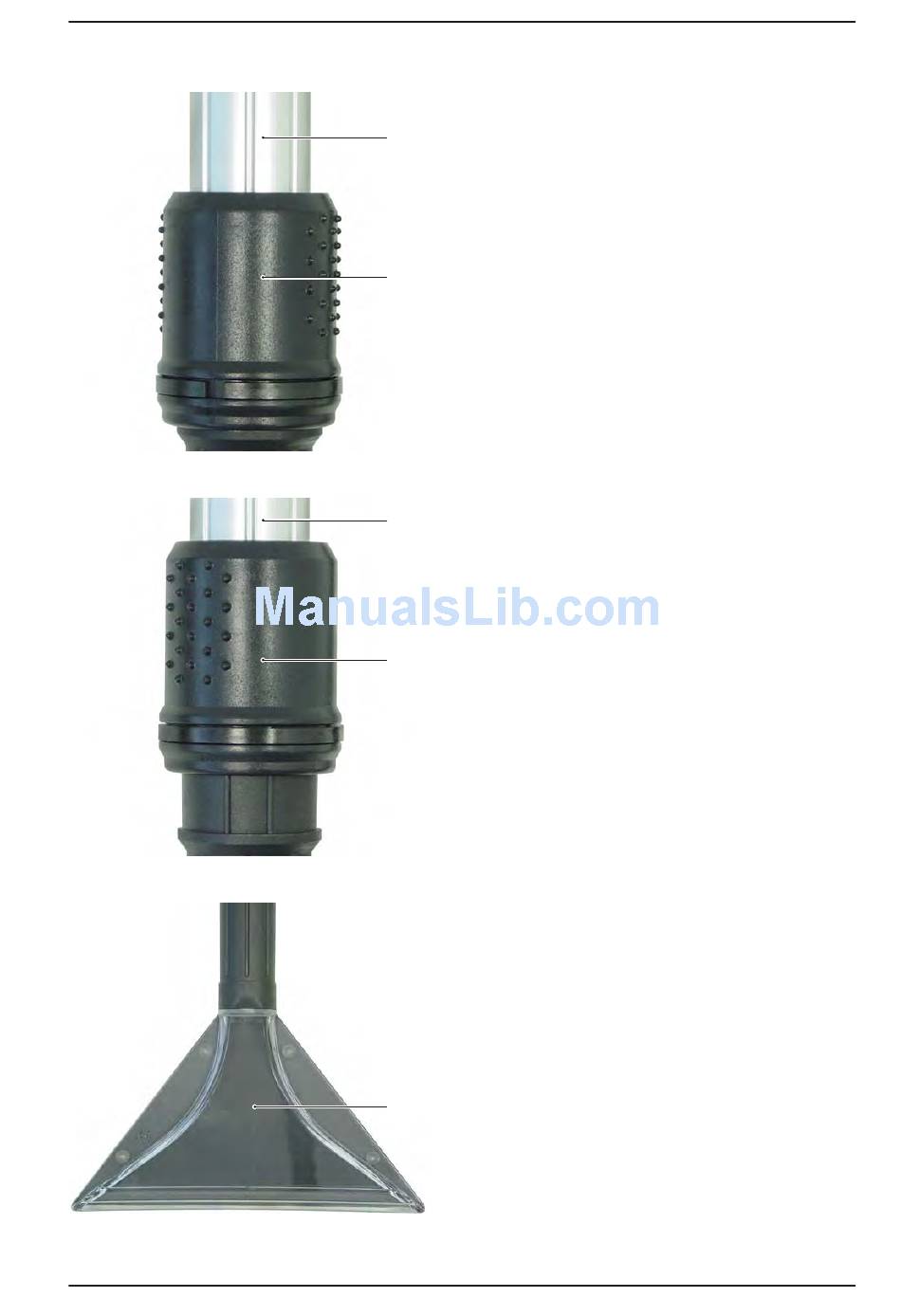

1 Spray / suction tube

2 Threaded connection closed, connection

to the spray / suction tube

3 Threaded connection open, connection to

the spray / suction tube

4 Floor tool for carpets, working width

230 mm

Unit functions

Page 13 / 29
