Basic settings and service procedures
Unit switch
2

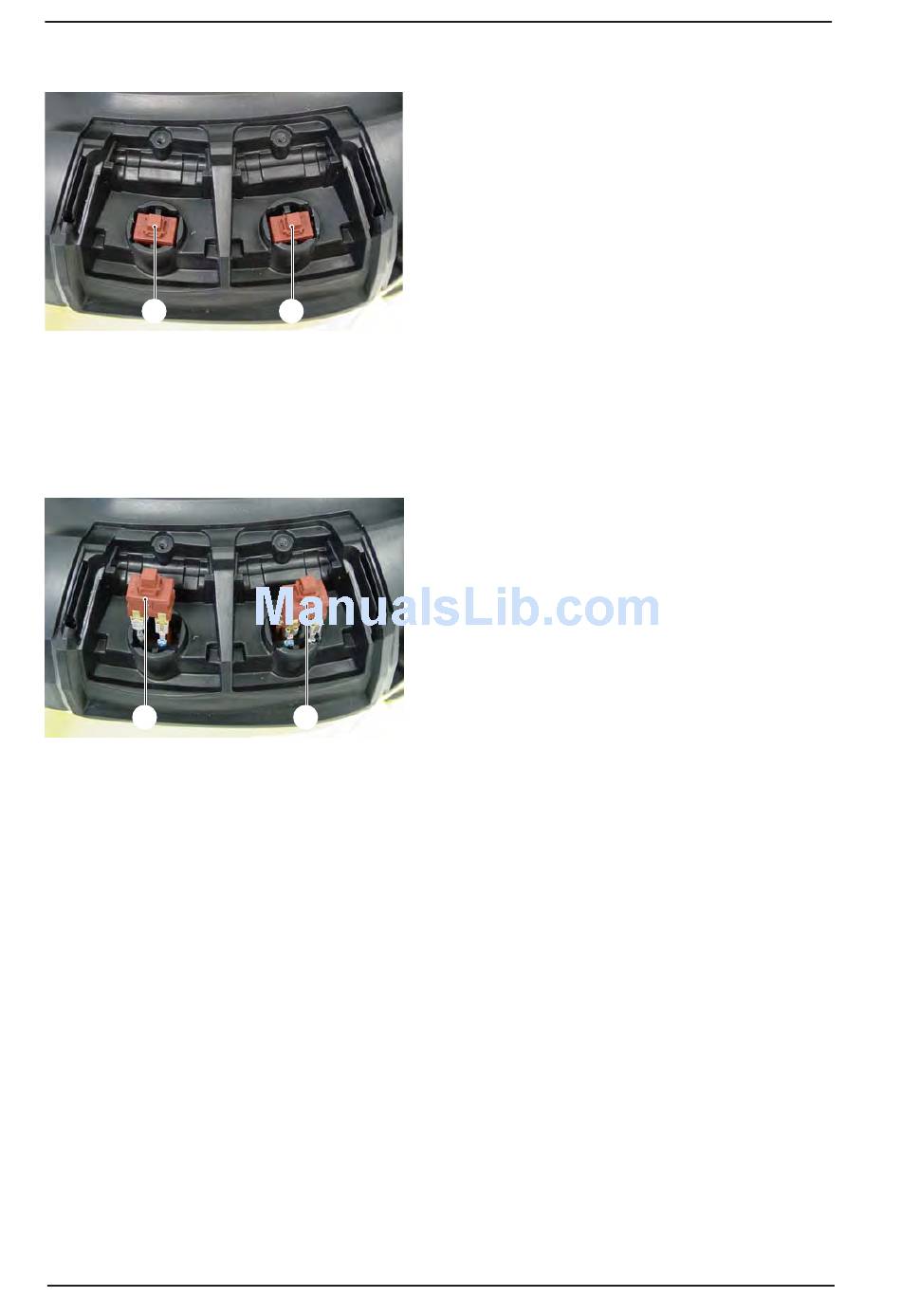

Rubber covers removed
2
Switches (S1) and (S2) pulled out
1 Switch (S2), water pump (M2)
2 Switch (S1), suction motor (M1)
Page 18 / 29
Replacing switches
– Pull the relevant switch (1, 2) out of the bracket.
– Remove the cable connections from the rele-
– Install new switch in reverse order.
1
1
vant switch (1, 2) and note the cable
assignment at the switch.
New Unit Information 05.2007
Puzzi 8/1 C
