Attach using four flat washers (14606000) and four ¼-20 hex bolts

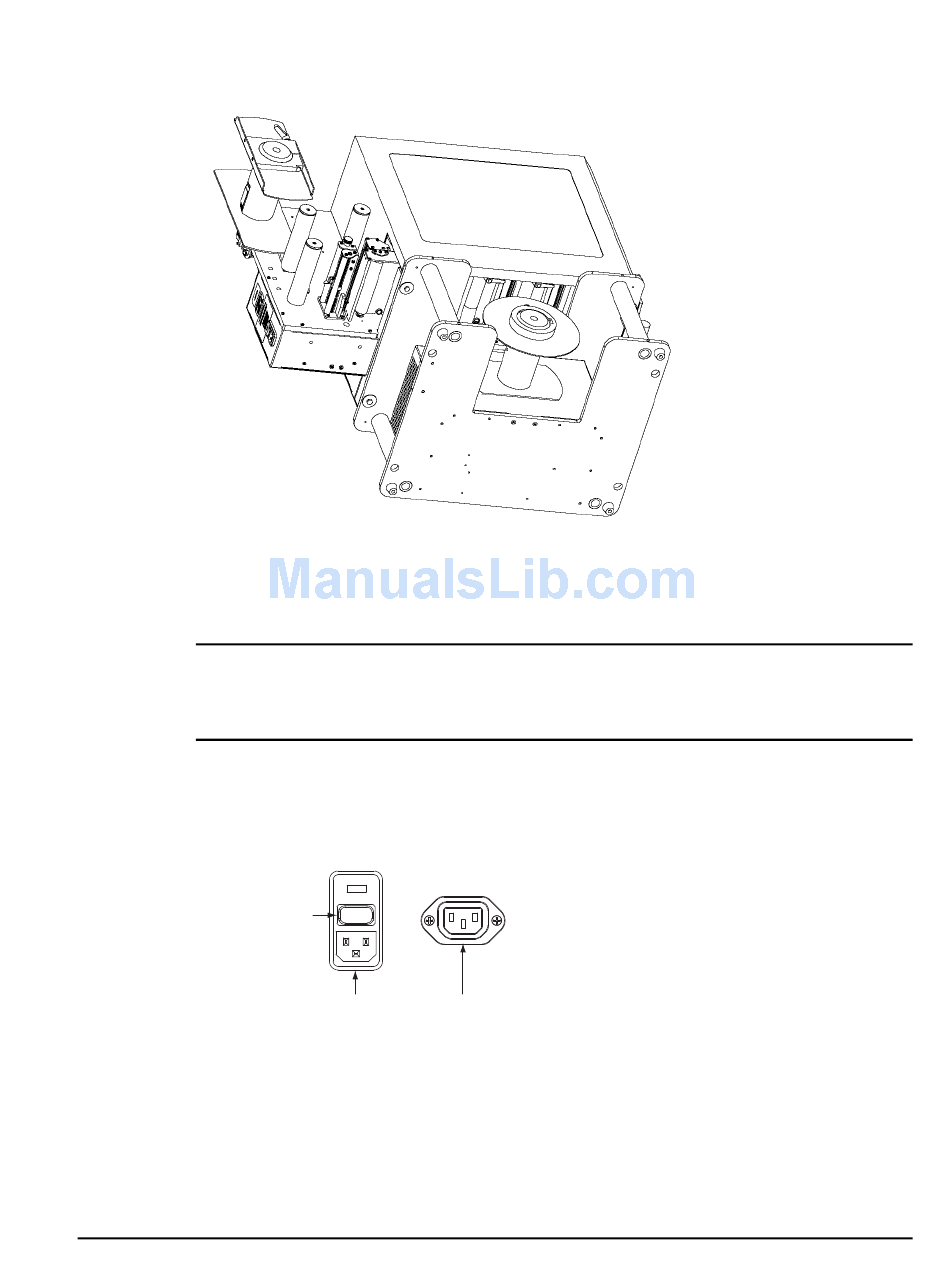

(1117017). These only need to be hand tight. A bottom view is illustrated
below.
4 Connect the 9-pin cable (24164001) between the QLS-4100 Xe utility port
and the 9-pin connector on the Print & Peel Base.
Note: If your QLS-4100 Xe was manufactured prior to October 2008, you
will need to install a utility port adapter (26732101) in the QLS-4100 Xe
utility port. Install the adapter before connecting the 9-pin cable.
5 Connect the jumper cord from the Print & Peel Base power jumper port
to the QLS-4100 Xe power input port. Turn the QLS-4100 Xe power
switch to the on position.
On/Off Switch
QLS-4100 Xe
Power Power
Input Jumper
8-9
