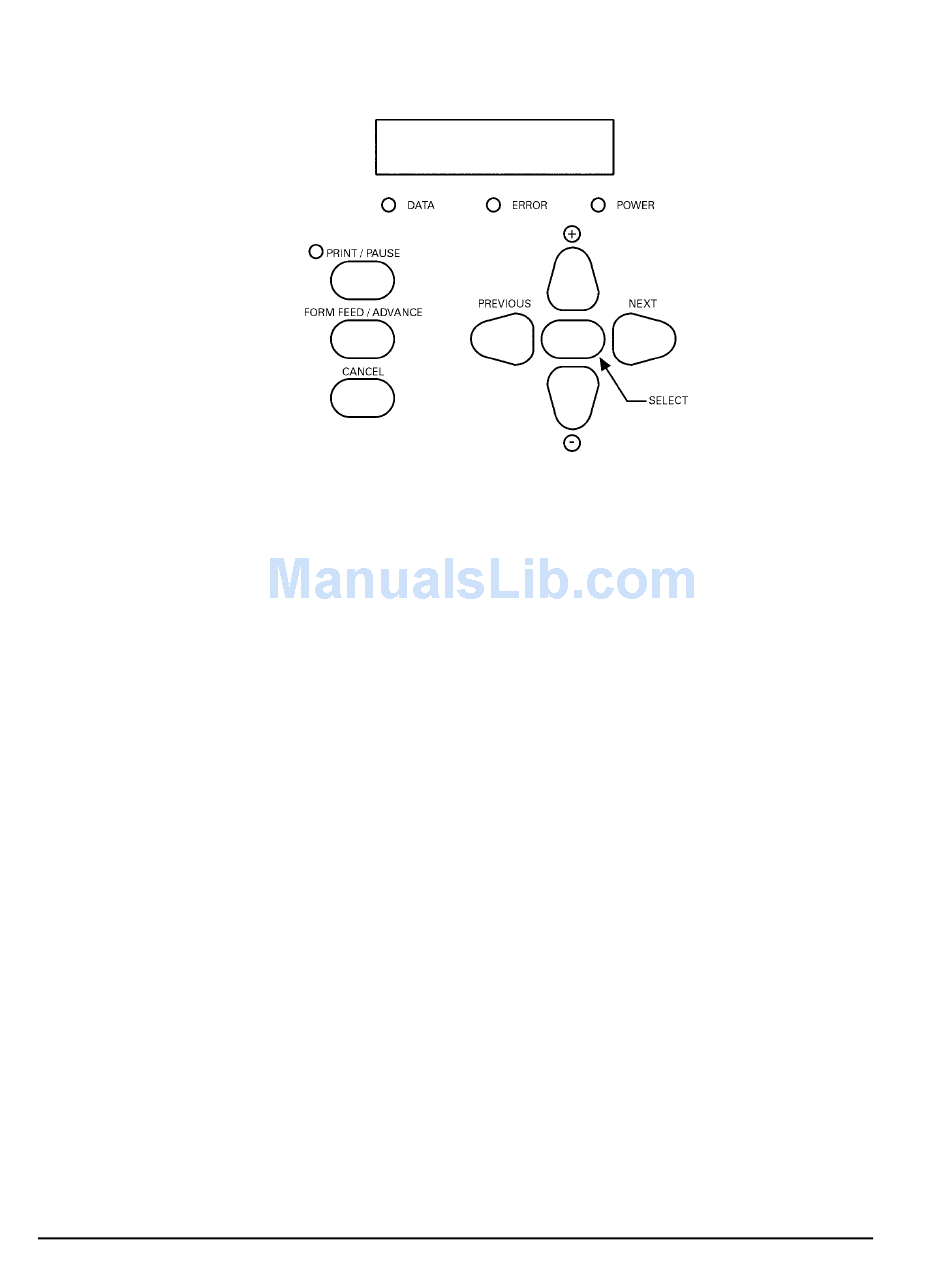

Keypad Layout and Functions

The keypad buttons perform the following general functions.
PRINT/PAUSE
FORM FEED/ADVANCE
CANCEL
PREVIOUS/NEXT
+
-
SELECT
4-2
Toggles the printer between Ready and Pause
states
Pauses or resumes printing
If viewing a sub-menu, returns you to main
Pause menu
When the printer is in a Pause state, feeds the
media by one calibrated label length each time
the key is pressed, or continually advances the
media when the key is held
Cancels the current label(s) or test pattern
Cycles the display though menu choices
Displays current settings for various printer
parameters
Increases values within menus
Decreases values within menus
Accepts the displayed setting
Pressing select twice returns user to top-level
menu
Keypad controls and menus
