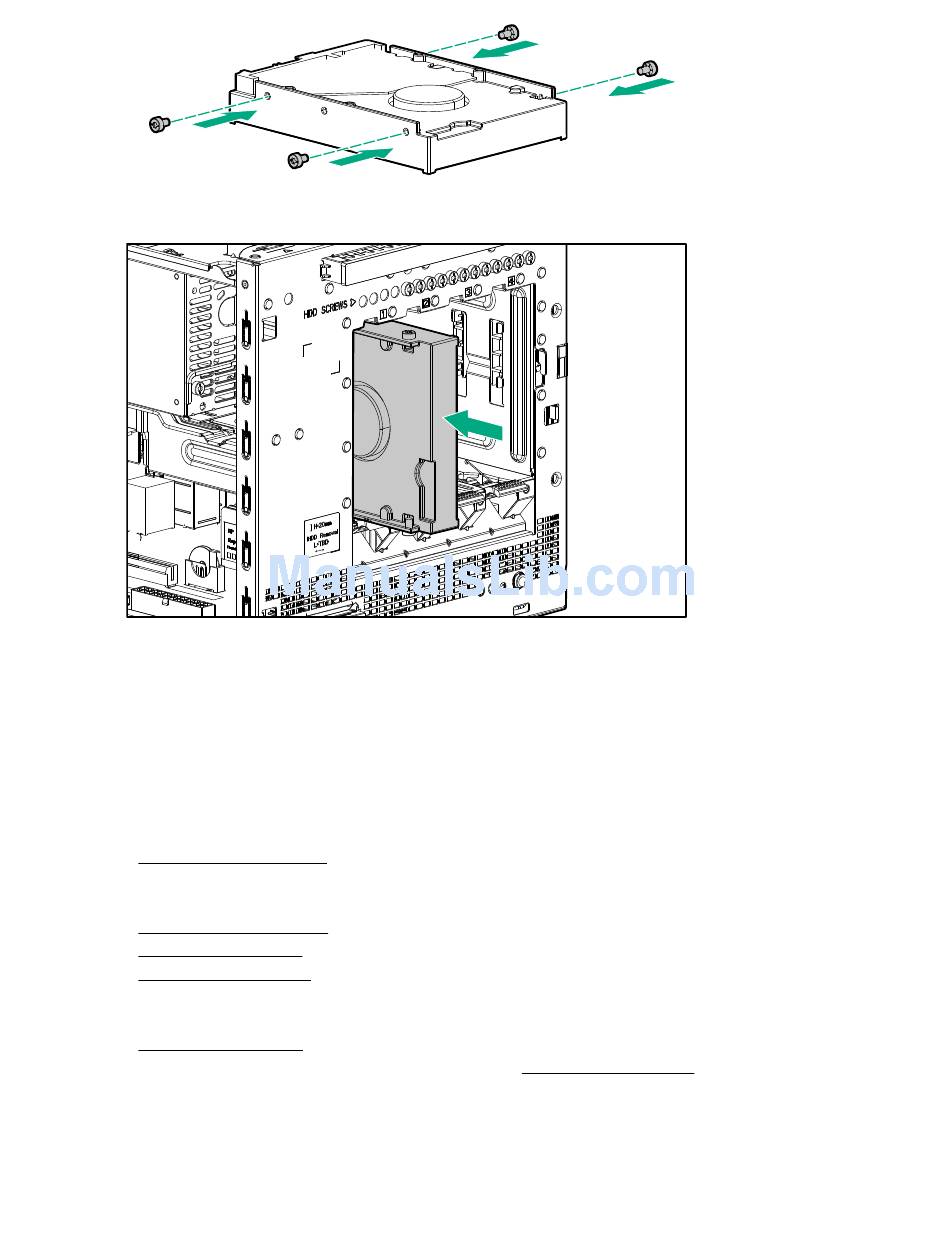

3. Slide the drive into the drive bay until it clicks into place.

Installing an SFF drive

About this task
To install SFF drives in the drive bays, install the SFF drive converter option. In general, SFF drives give
greater power and space savings. SFF drives can require as little as half the power and generate significantly
less heat than LFF drives.
Procedure
1. Power down the server on page 22.
2. Disconnect the power cord from the AC source, and then from the server.
3. Disconnect all peripheral cables from the server.
4. Remove the front bezel on page 23.
5. Install the SFF drive on page 34.
6. Install the front bezel on page 25.
7. Connect all peripheral cables to the server.
8. Connect the power cord to the server power jack, and then to the AC source.
9. Power up the server on page 22.
10. Determine the status of the server drives from the drive LED definitions.
11. To configure drive arrays, do one of the following:
