Item Component
8 Display port 2
9 USB 2.0 ports (2)
10 USB 3.0 ports (2)
11 NIC port 1 (1 Gb)
12 NIC port 2 (1 Gb)
1
This expansion slot is open-ended, which enables down-plugging. Down-plugging means a larger-width
expansion board can be installed in a smaller-width connector. For this server, the expansion slot supports
low-profile expansion boards with a physical connector link width of up to ×16. The board operates at the
highest common negotiable link width specified for the slot.
2
To support 4K resolution at a full 60 Hz frame rate, this Display port requires dual-channel memory
configuration. Single-channel memory configuration will only support up to 30 Hz frame rate.
3
This NIC port supports 10/100/1000 Mbps data transfer rate per port.

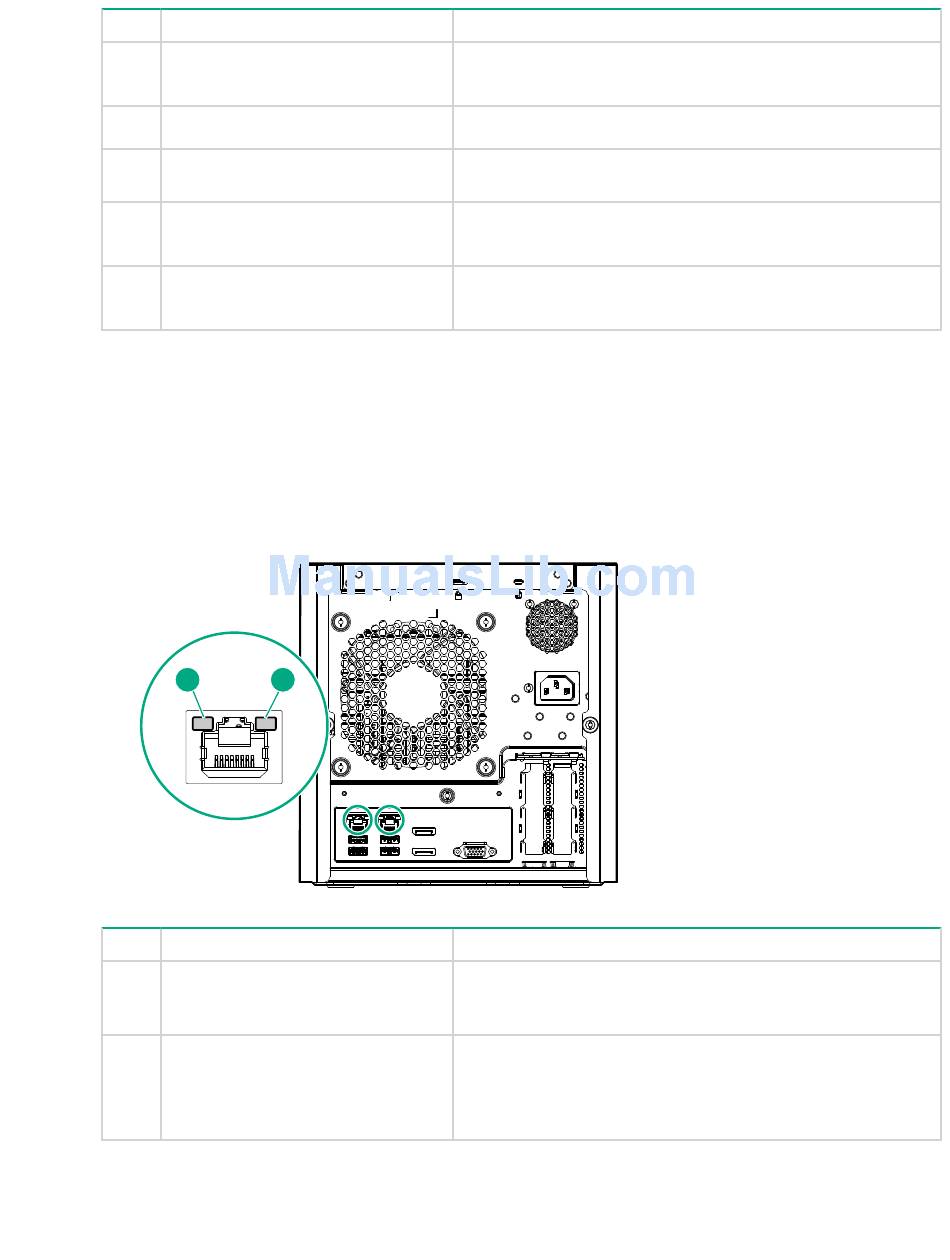

Rear panel LEDs

1
Item Description
1 NIC link LED
2 NIC status LED
2
Description
Connects to a digital display device, such as a high-resolution
set top boxes or TV displays.
Connect USB 2.0 devices to these ports.
Connect USB 3.0 devices to these ports. USB 3.0 support
after POST varies by operating system.
Connect an Ethernet cable here to connect the server to a
3
wired network.
Connect an Ethernet cable here to connect the server to a
3
wired network.
Status
Solid green = Link exists
Off = No link exists
Solid green = Linked to network
Flashing green = Network active
Off = No network activity
2
Rear panel LEDs 9
