Component identification
This chapter describes the external and internal server features and components.

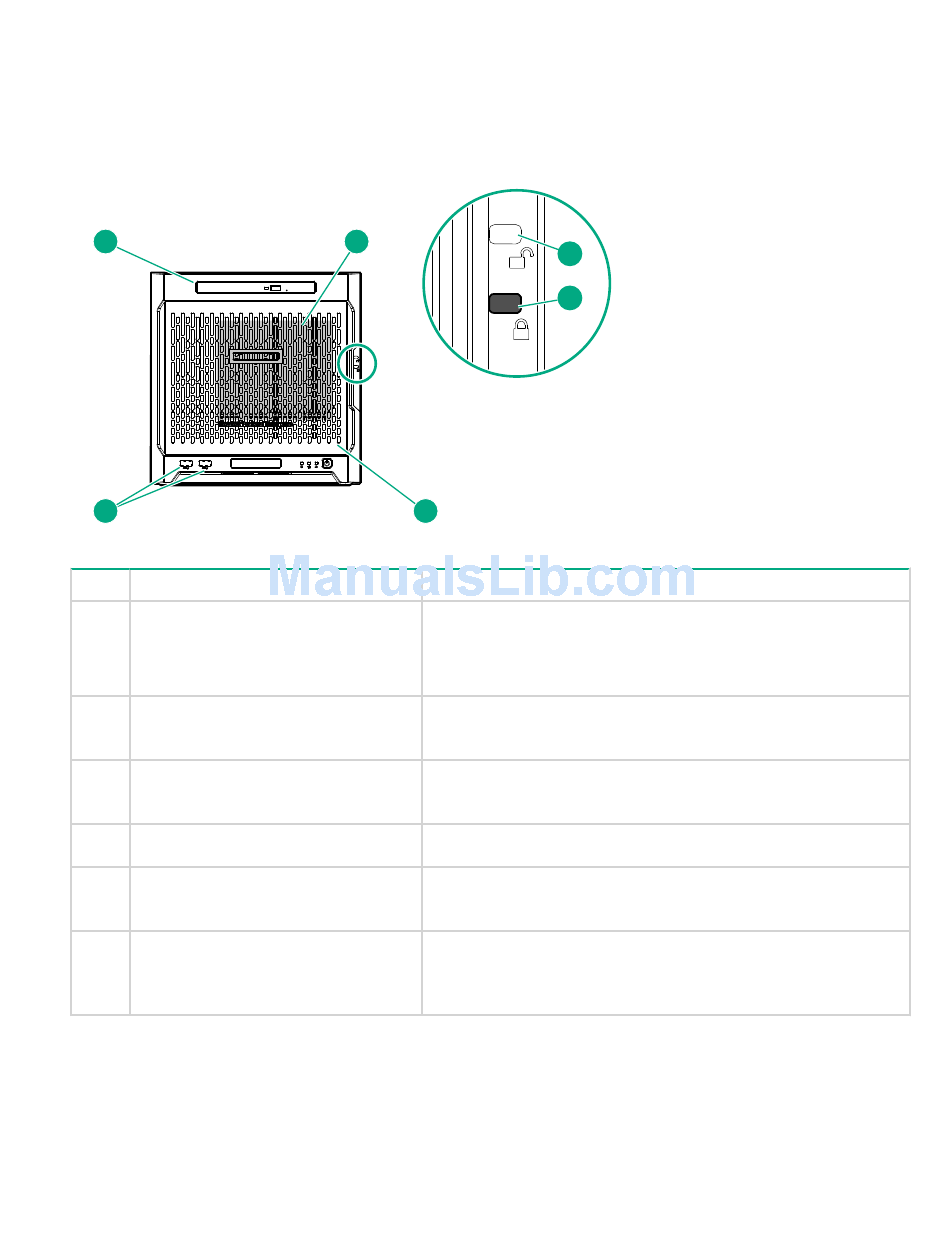

Front panel components
6
5
Item
Component
1
Drive bays (4, behind the front
bezel)
2
Front bezel unlock indicator
3
Front bezel lock indicator
4
Front bezel
5
USB 3.0 ports (2)
6
Media bay
6
Component identification
1
4
Description
By default, the drive bays support 3.5-inch LFF SATA drives.
To support 2.5-inch SFF drives, install the SFF drive converter
option.
To remove the front bezel from the chassis, this groove must
show the blue indicator.
To lock the front bezel in the chassis, this groove must show
the blue indicator.
To access the front drive bays, remove this bezel.
Connect USB 3.0 devices to these ports. USB 3.0 support
after POST varies by operating system.
When the relevant enablement options kits are installed, this
bay supports either a slim-type optical disc drive or solid state
drive option.
2
3
