Cabling

Cabling overview

This section provides guidelines that help you make informed decisions about cabling the server and
hardware options to optimize performance.
CAUTION:
When routing cables, always be sure that the cables are not in a position where they can be pinched or
crimped.

Four-bay non-hot-plug drive cabling

The four-bay non-hot-plug drive cable assembly consists of the drive power and SATA cables attached to a
bracket. If either the drive power or SATA cable becomes defective, the entire cable assembly will need to be
replaced.

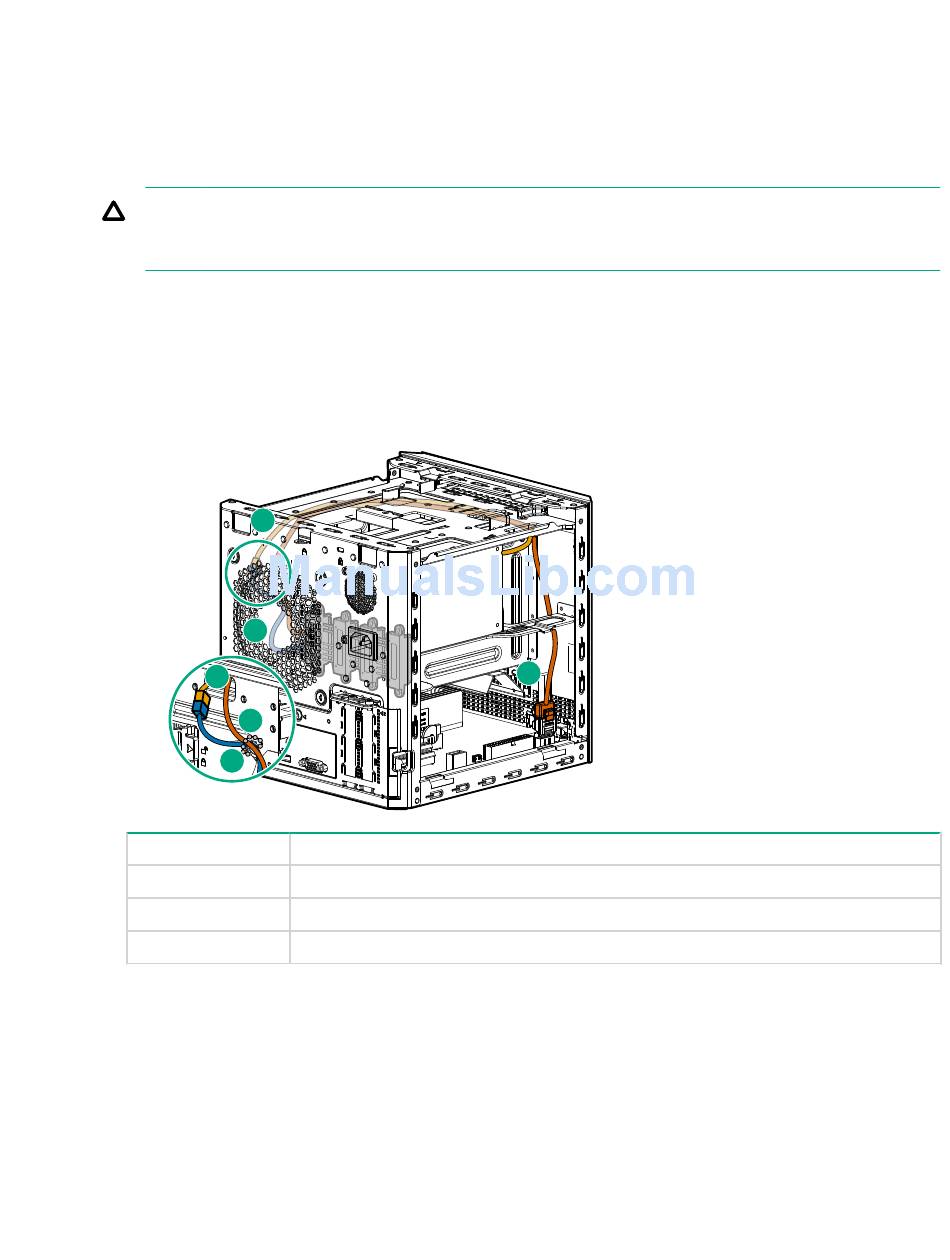

• LFF/SFF drive SATA cable connected to the system board
1
Item
1
2
3
• LFF/SFF drive SATA cable connected to an HBA
1
2
3
2
Description
P2 power supply cable
LFF/SFF drive power cable
LFF/SFF drive SATA cable
3
Cabling 55
