7. Application Examples
Set term 27 to
Set Preset reference 0 to first preset speed (par. 3-10 [0]) in percentage of Max Reference speed
(par. 3-03). Ex.: 60%
Set preset reference 1 to second preset speed (par. 3-10 [1]) Ex.: 0% (zero).
Set the timer 0 for constant running speed in par. 13-20 [0]. Ex.: 2 sec.
Set Event 1 in par. 13-51 [1] to
Set Event 2 in par. 13-51 [2] to
Set Event 3 in par. 13-51 [3] to
Set Event 4 in par. 13-51 [1] to
Set Action 1 in par. 13-52 [1] to
Set Action 2 in par. 13-52 [2] to
Set Action 3 in par. 13-52 [3] to
Set Action 4 in par. 13-52 [4] to
7
Set the smart logic control in par. 13-00 to ON.

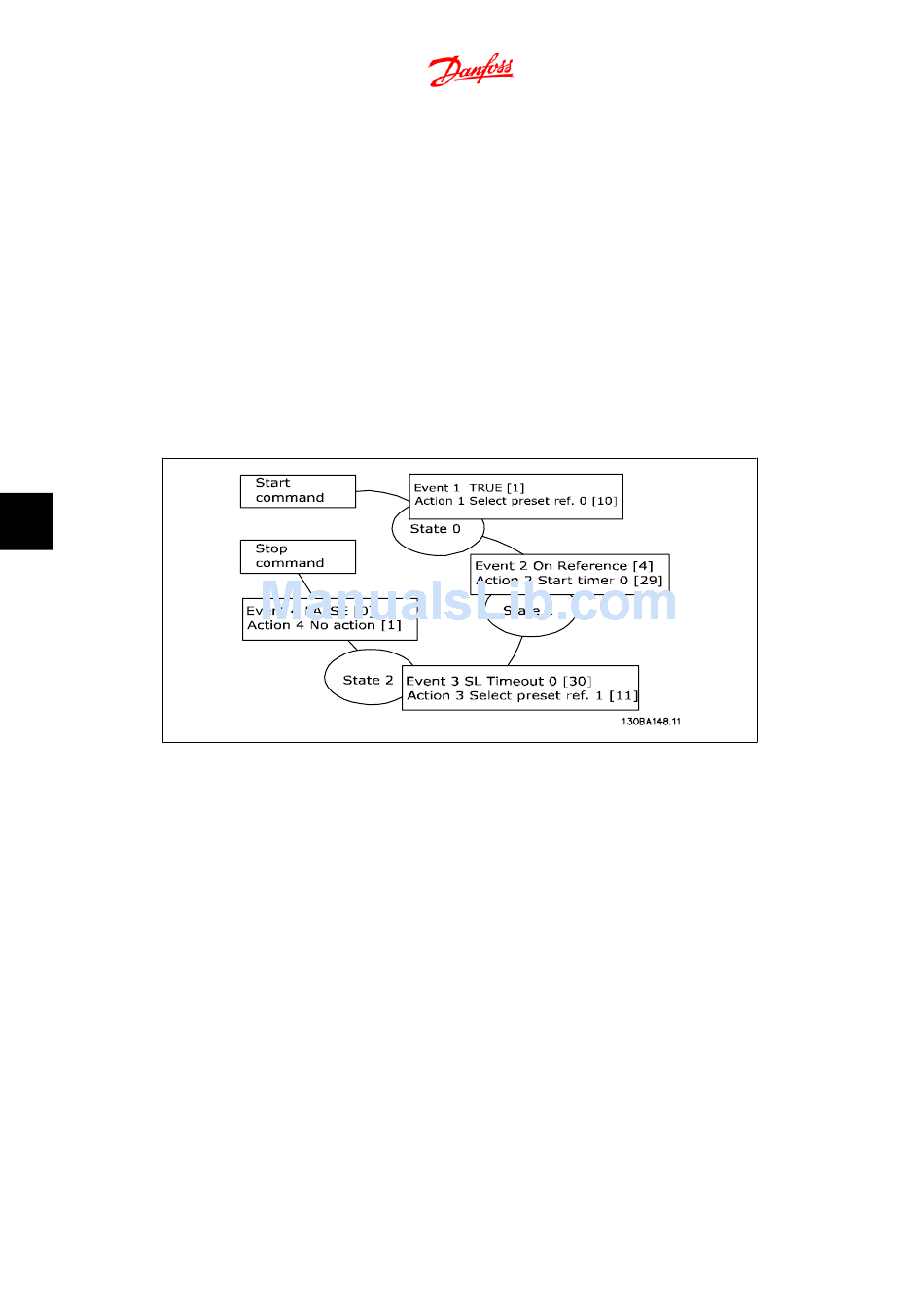

Start/stop command is applied on terminal 18. If stop signal is applied, the adjustable frequency
drive will ramp down and go into free mode.
148
No Operation (par. 5-12)
True
[1]
On Reference
Time Out 0
False
[0]
Select preset 0
Start Timer 0
Select preset 1
No Action [1]
