3.11.2. Safe Stop Installation (FC 302 and FC 301 - A1 enclosure only)

To carry out an installation of a Catego-
ry 0 Stop (EN60204) in accordance with
Safety Category 3 (EN954-1), follow
these instructions:
3
1.
2.
3.

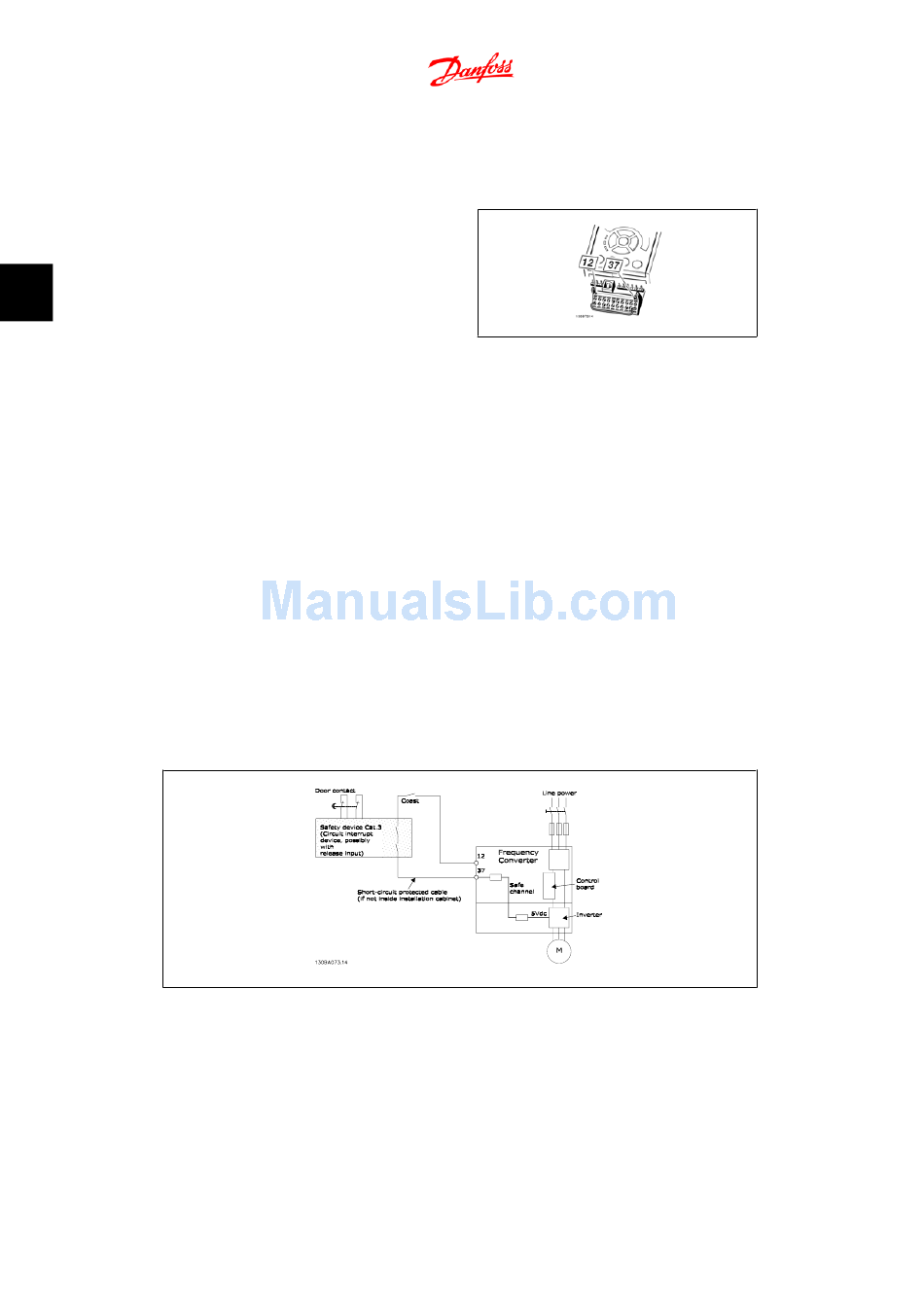

The illustration below shows a Stopping Category 0 (EN 60204-1) with safety Category 3 (EN
954-1). The circuit interruption is caused by an opening door contact. The illustration also shows
how to connect a non-safety-related hardware coast.
3.6: Illustration of the essential aspects of an installation to achieve a Stopping Category 0 (EN 60204-1)
with safety Category 3 (EN 954-1).
3.11.3. Installation for Safe Stop in combination with MCB112
If the ex-certified thermistor module MCB112, which uses Terminal 37 as its safety-related switch-
off channel, is connected, the output X44/11 of MCB112 must be AND-ed with the safety-related
56
The bridge (jumper) between Termi-
nal 37 and 24 V DC must be re-
moved. Cutting or breaking the
jumper is not sufficient. Remove it
entirely to avoid short-circuiting. See
jumper on illustration.
Connect terminal 37 to 24 V DC by a
short circuit-protected cable. The 24
V DC voltage supply must be inter-
ruptible by an EN954-1 category 3
circuit interrupt device. If the inter-
rupt device and the adjustable fre-
quency drive are placed in the same
installation panel, you can use a reg-
ular cable instead of a protected one.
Unless the FC302 itself has protec-
tion class IP 54 and higher, it must
be placed in an IP 54 enclosure. Con-
sequently, FC301 A1 must always be
placed in an IP 54 enclosure.
MG.33.B9.22 - VLT
3.5: Bridge jumper between terminal 37 and 24
VDC
®
is a registered Danfoss trademark.
