ControlMaster CM10, CM30 and CM50
Universal process controllers,

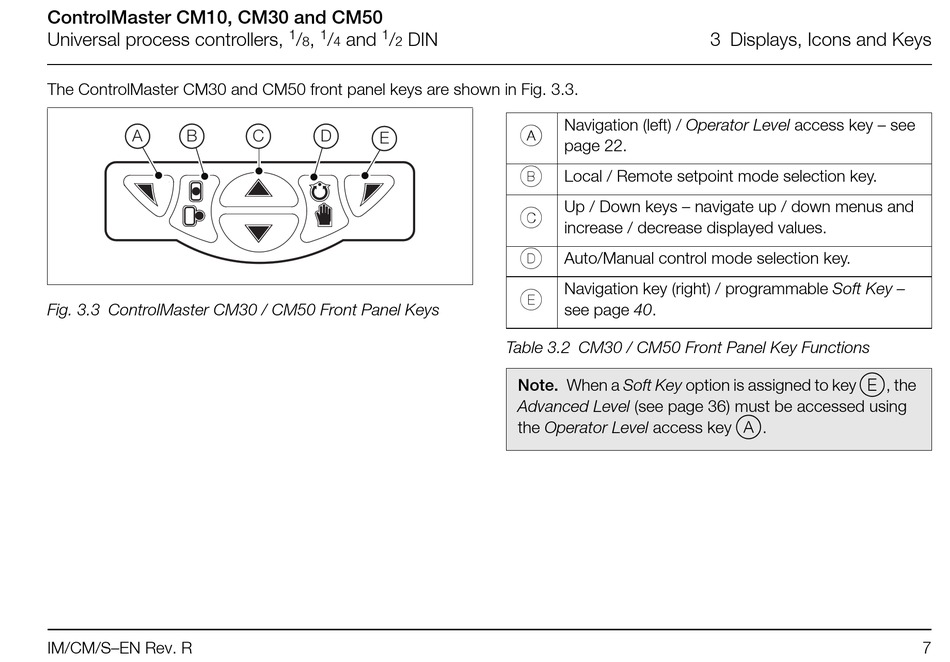

The ControlMaster CM30 and CM50 front panel keys are shown in Fig. 3.3.
A B
Fig. 3.3 ControlMaster CM30 / CM50 Front Panel Keys
IM/CM/S–EN Rev. R
1 1 1
/ , / and / DIN
8 4 2
C D
E
Navigation (left) / Operator Level access key – see
A
page 22.
B
Local / Remote setpoint mode selection key.
Up / Down keys – navigate up / down menus and
C
increase / decrease displayed values.
D
Auto/Manual control mode selection key.
Navigation key (right) / programmable Soft Key –
E
see page 40.
Table 3.2 CM30 / CM50 Front Panel Key Functions
Note. When a Soft Key option is assigned to key E, the
Advanced Level (see page 36) must be accessed using
the Operator Level access key A.
3 Displays, Icons and Keys
