Public/guest network access
Location-aware authentication

Example

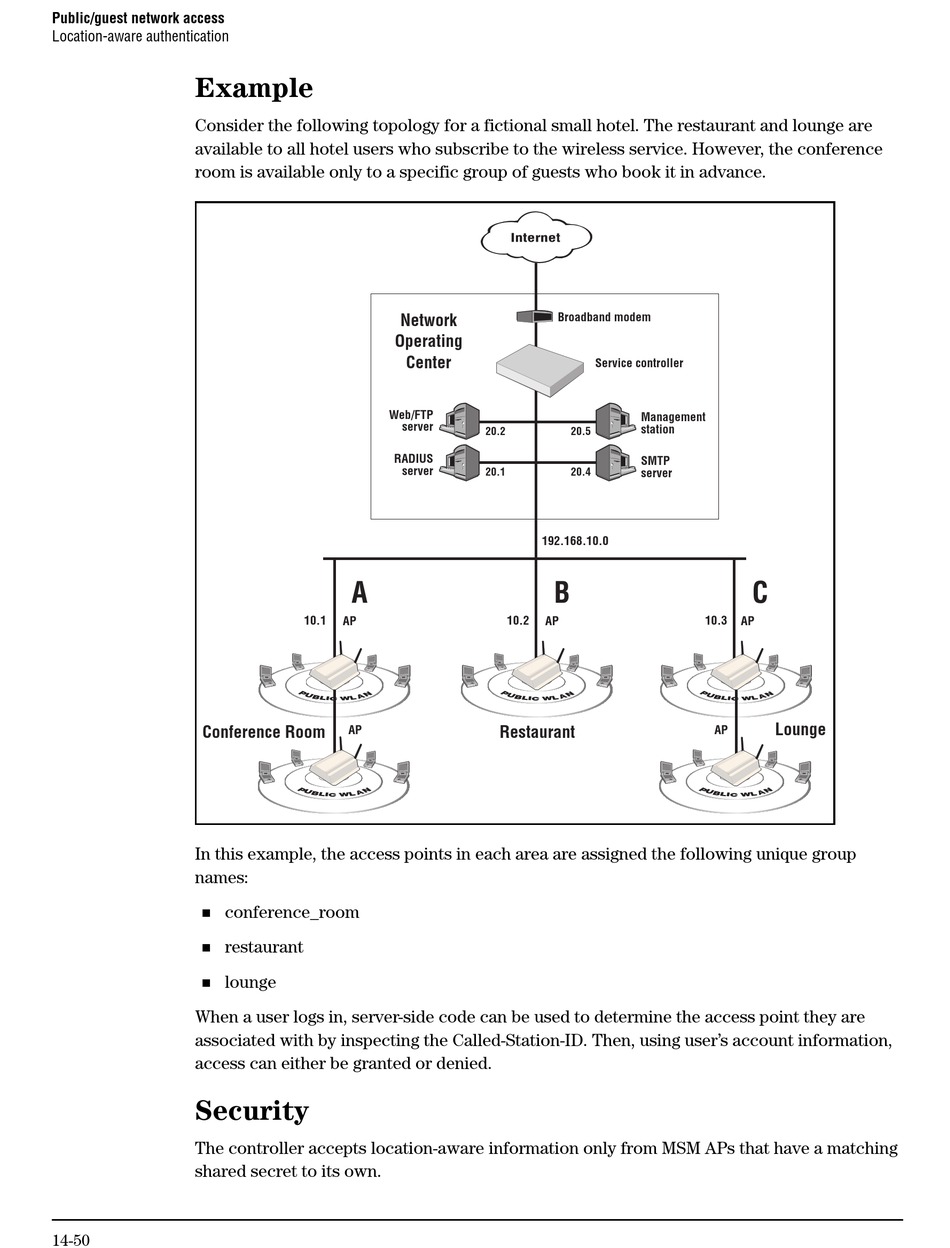

Consider the following topology for a fictional small hotel. The restaurant and lounge are
available to all hotel users who subscribe to the wireless service. However, the conference
room is available only to a specific group of guests who book it in advance.
Conference Room
In this example, the access points in each area are assigned the following unique group
names:
 conference_room
 restaurant
 lounge
When a user logs in, server-side code can be used to determine the access point they are
associated with by inspecting the Called-Station-ID. Then, using user's account information,
access can either be granted or denied.

Security

The controller accepts location-aware information only from MSM APs that have a matching
shared secret to its own.
14-50
Network
Operating
Center
Web/FTP
server
RADIUS
server
A
10.1
AP
AP
Broadband modem
Service controller
Management
station
20.2 20.5
SMTP
20.1 20.4
server
192.168.10.0
B
10.2
AP
Restaurant
C
10.3
AP
Lounge
AP
