HP MSM760 Controllers Quickstart
This document describes how to install the MSM760 Access Controller (J9421A), and the MSM760 Premium
Mobility Controller (J9420A). These products are hereafter referred to as controller. The controller works
with HP 802.1 1n and 802.1 1ac access points to deliver a high-performance networking solution. For a list
of supported APs, see the HP MSM7xx Controllers Release Notes.
For additional installation information, and instructions on how to initially configure the controller, see the
HP MSM760 Controllers Installation Guide.
Hardware overview

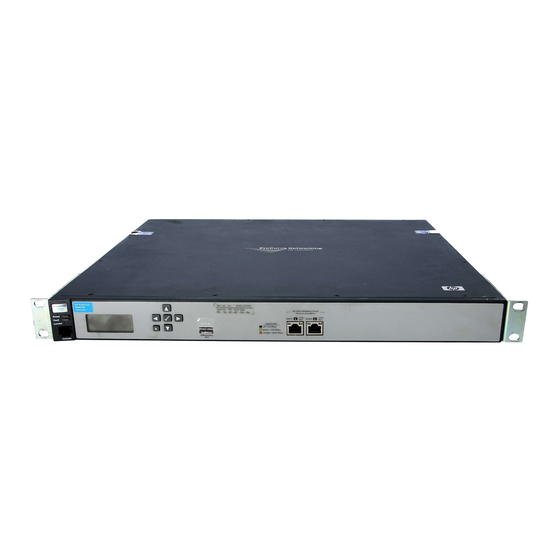

Figure 1 MSM760 front view
1
3
4
1. Power, Fault, and Locator LEDs
2. Ethernet Ports: 1=Internet, 2=LAN
3. Console port
4. LCD display
Package contents
Controller, console cable, two mounting brackets, eight 8 mm screws, four 5/8 inch screws, four rubber
feet, power cord, and documentation.
LCD display
The LCD displays the following:
The controller type, either Mobility Controller or Access Controller.
The maximum number of supported APs, as defined by the installed license.
The IP address of the Internet port. (Until the controller receives its IP address from a DHCP server, the
address displays as: 0.0.0.0)
During start up, the LCD displays a system booting message.
*5998-7942*
© Copyright 2014, 2015 Hewlett-Packard Development Company, L.P.
Printed in China
The information in this document is subject to change without notice.
HP Part Number: 5998-7942
Published: June 2015
Edition: 1
5
6
2
7
5. Keypad (not used)
6. USB port (not used)
7. Ethernet LEDs

Advertisement

Table of Contents
loading

Related Manuals for HP MSM760

Summary of Contents for HP MSM760

  • Page 1 Mobility Controller (J9420A). These products are hereafter referred to as controller. The controller works with HP 802.1 1n and 802.1 1ac access points to deliver a high-performance networking solution. For a list of supported APs, see the HP MSM7xx Controllers Release Notes.

  • Page 2: Mac Address

    On briefly at the beginning of the self-test after the controller is powered on or reset. If it remains on, the controller has encountered a fatal hardware failure, or has failed its self-test. For more information, see the HP MSM760 Controllers Installation Guide. Locator (blue) The locator LED is used to locate a specific controller in a group of equipment, typically a rack.

  • Page 3: Prepare The Installation Site

    Cabling infrastructure—Ensure the cabling infrastructure meets the necessary network specifications. Cable type: Use Category 5 or better, 100-ohm unshielded twisted-pair (UTP) or shielded twisted-pair (STP) balanced cable. For 1000 Mbps operation, HP recommends Category 5e or better. Length limit: 100 meters...

  • Page 4: Installing The Controller

    NOTE: The controller is compatible with the IEEE 802.3ab standard including the Auto MDI/MDI-X feature, which allows use of either straight-through or crossover twisted-pair cables for connecting to any network devices including end nodes, such as computers, or to other switches, hubs, and routers.

  • Page 5: Restarting The Controller

    The controller can be restarted by disconnecting, and then reconnecting the power cord, or by using its management tool. Resetting to factory defaults HP recommends that you use the controller web interface to reset the controller to factory defaults as described in the HP MSM760 Controllers Installation Guide Support and other resources For worldwide technical support information, see the HP support website at www.hp.com/support.

  • Page 6: Belarus Kazakhstan Russia Marking

    к-сі, 28В, тел./факс: +7 (727) 355 35 50, +7 (727) 355 35 51 Manufacturing Date – The manufacturing date is included in the product serial number, CCYMPPPZZZ (HP serial number format for this product). The manufacturing date is indicated by YM in the serial number, where Y indicates the year counting from within each new decade, with 2010 as the starting point, and M is the month when the unit was manufactured.

  • Page 7: Specifications

    Specifications Dimensions H: 4.2 cm (1.64 inch), W: 44.3 cm (17.42 inch), D: 39 cm (15.4 inch) Weight 6.1 kg (13.45 lb) AC voltage 100–127/200–240 volts Maximum current 2 A/1 A Frequency range 50/60 Hz Temperature Operating: 5°C to 40°C (41°F to 122°F), Non-operating: -40°C to 65°C (-40°F to 149°F) Relative humidity Operating: 15% to 80% at 40°C (104°F), Non-operating: 20% to 90% at 65°C (149°F) (non-condensing)
