Installing a Link
Connecting the PoE Device to a Network
Connect the PoE to network equipment such as a switch from the LAN‐In port. Connecting
network equipment to the LAN‐Out port may damage it.
Powering up the ODU from a Poe Device
Connecting the ODU port labelled IDU to a powered up PoE is sufficient. If you have not
already closed and weather‐sealed the ODU port marked IDU, then inside it you can see an
amber colored power LED which turn green when the ODU is activated. (See Chapter 5.)
Mounting the Lightning Protection Units
The use of lightning protection is dependent on regulatory and end user requirements. The
RADWIN 2000 C Plus ODU is designed with surge limiting circuits to minimize the risk of
damage due to lightning strikes. RADWIN recommends the use of additional surge arrestor
devices to protect the equipment from nearby lightning strikes.
In what follows, ODU may be any type of RADWIN outdoor radio unit and IDU may be any
type of RADWIN IDU used with such products (PoEs, IDU‐H, etc).

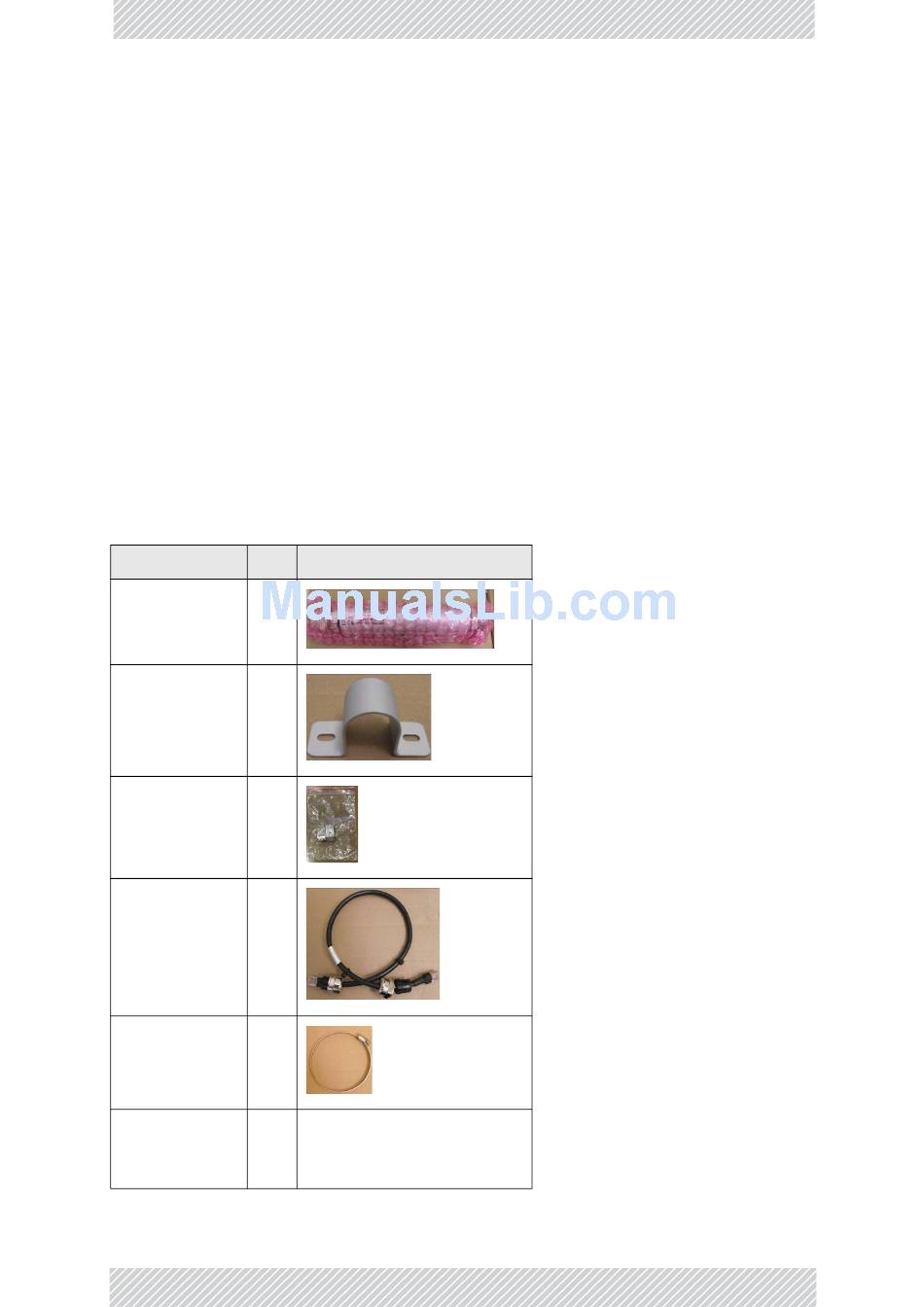

Table 4‐1: LPU Kit contents
Item Qty
LPU (shown
1
wrapped)
U wall clamp 1
RJ‐45
connectors
2
(shown
wrapped)
0.5m CAT‐5e
1
cable
Metal tie 1
Quick
Installation 1
Guide
