Installing a Link
Mounting an ODU
Use a mounting kit to mount an ODU on a wall or pole as shown in the following figures:
•
•
•
Note
•

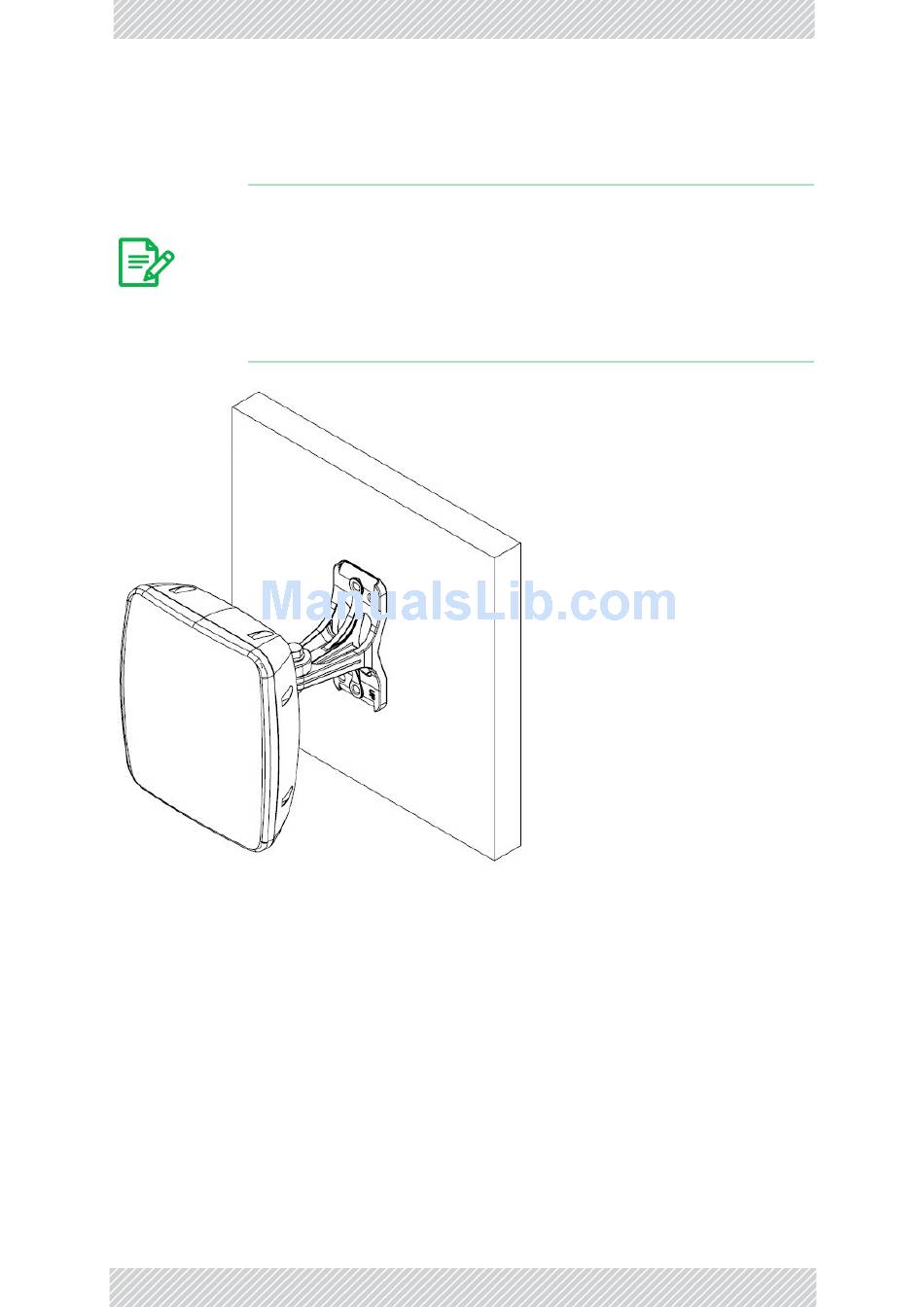

Figure 4‐14: Mounted ODU: Mounted to a wall
The mounting kit has an extra arm enables the ODU to be mounted at large angles relative to
the wall or pole, or to a horizontal pole, as shown:
RADWIN 2000 C Plus User Manual
When mounting an ODU on a pole or wall, ensure that the unit is ori‐
ented so that the cable connectors are at the bottom.
Do not mount an ODU horizontally
Ensure that there are no direct obstructions in front of an integrated
antenna ODU or interference from man‐made obstacles.
For complete instructions on using the mounting kit, see the included
Quick Installation Guide.
Release 3.5.70
Chapter 4
4‐13
