Activating the Master ODU
The choice of Tx Power, antenna gain and cable loss (between the radio and the
antenna) determines the EIRP and is affected by such considerations as radio limita‐
tions and regulatory restrictions.
Before completing antenna installation, you might like to consider the background
information about setting antenna parameters, in Setting Antenna Parameters.
When setting Required Tx Power, it is your responsibility to chose a value in
compliance with your local regulations.
Warning
Choose your Antenna Type, Required Tx Power, Antenna Gain and Cable Loss. We
will set Required Tx Power to 5 dBm for our example. Click Next.

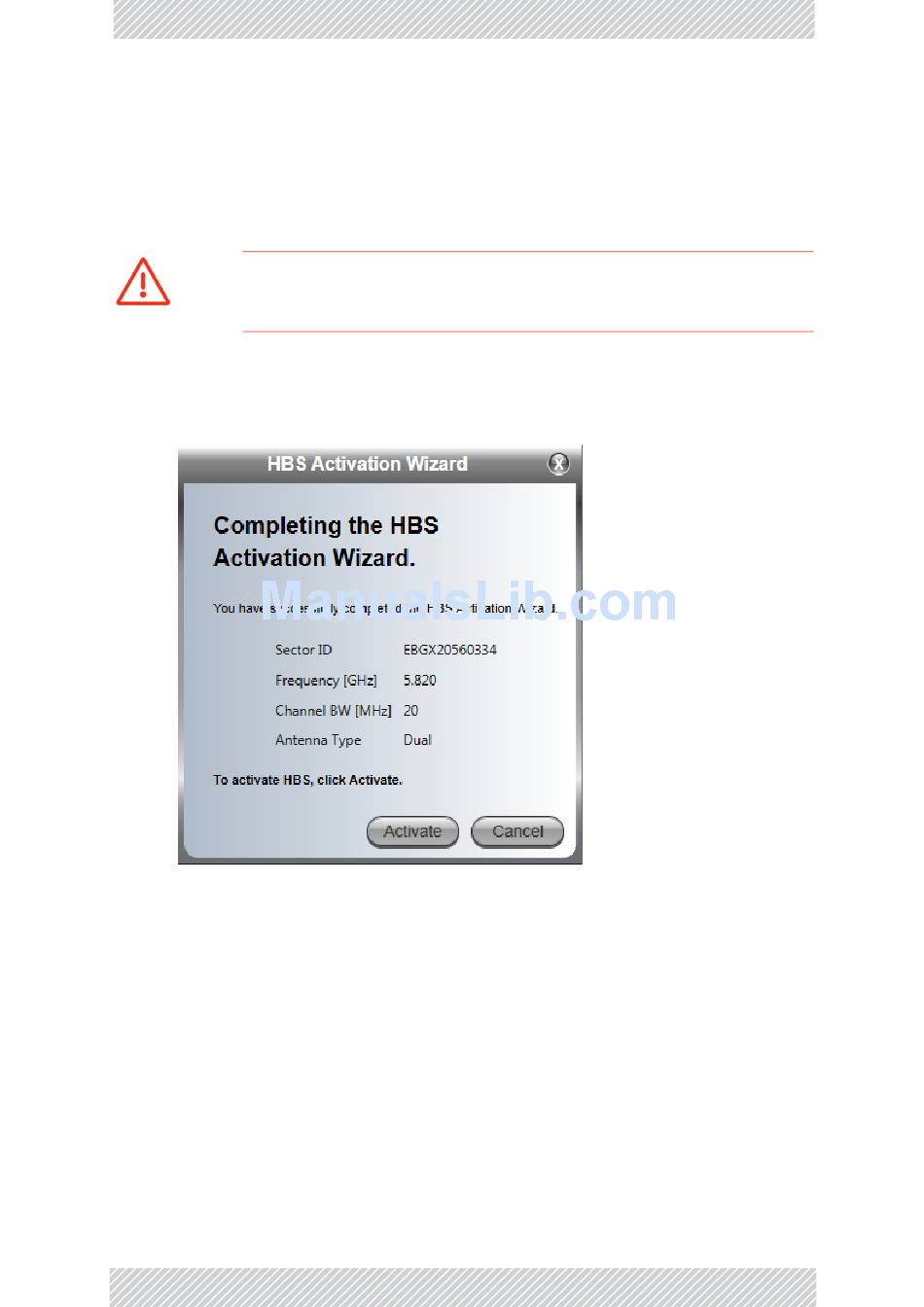

11. The Summary window of the Wizard is displayed.
Check that all information showed is correct and click Activate. After a few moments
the Slave ODU will be displayed in the Manager HSU panel as shown in the next fig‐
ure:
RADWIN 2000 C Plus User Manual
Release  3.5.70
Chapter 6
6‐11
