Obtaining Reports
• Current gives you the latest entry.
• 15 Minutes provides data in a scroll down list in 15 minute intervals
• Daily (24 hours) shows results for the last 30 days at midnight.

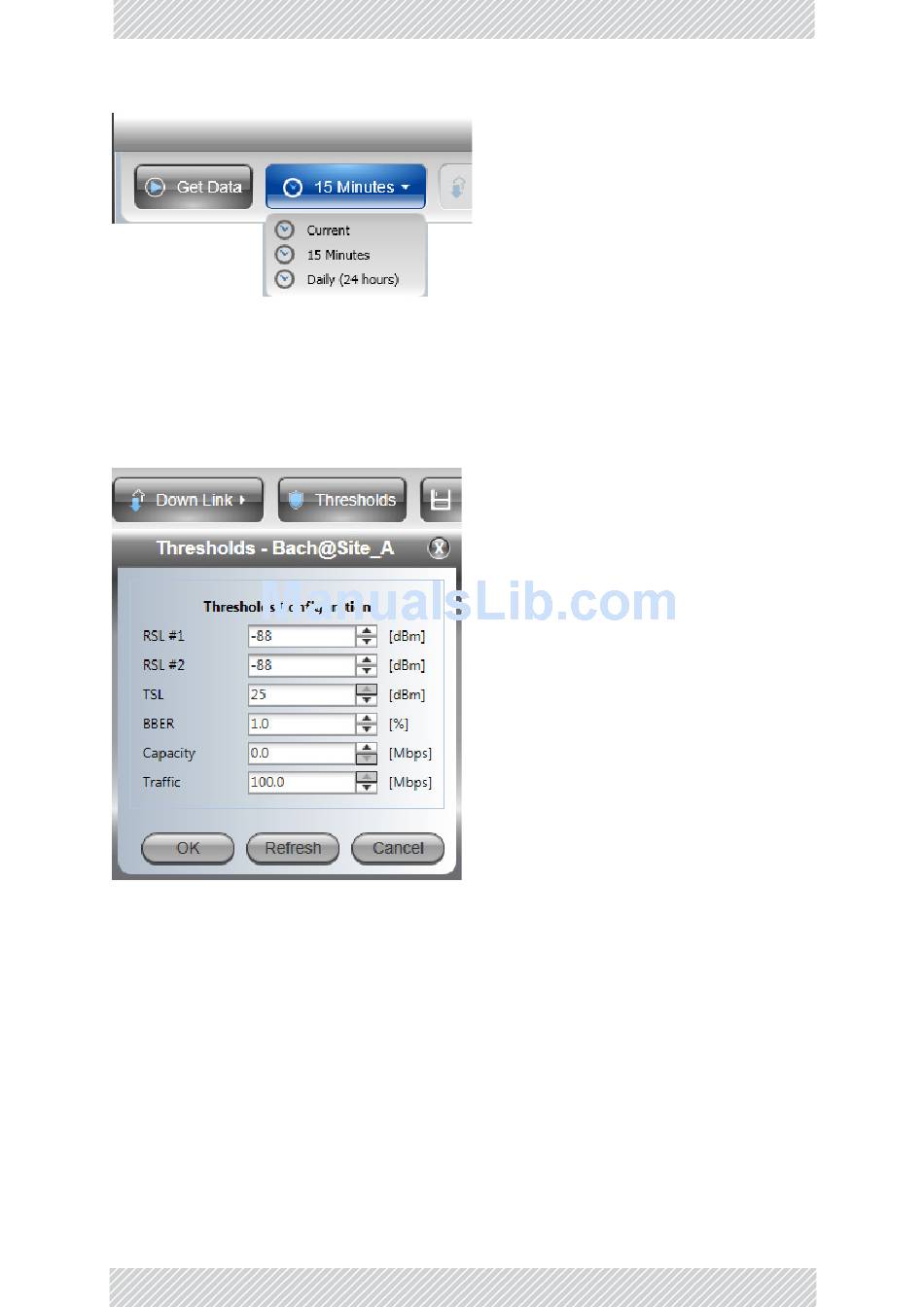

The Threshold button enables you to set the upper traffic thresholds for reporting. Traffic
conditions above the threshold indicate congestion and probably lost frames. The thresholds
are set separately for uplink and downlink:
Figure 9‐2: Setting the upper traffic threshold ‐ Downlink
To get data for display, click Get Data. The process may take a few seconds.
Here is an extract for the downlink Performance Monitoring report based on 15 minutes
recording:
RADWIN 2000 C Plus User Manual Release 3.5.70
Chapter 9
9‐7
