Multiple Distributed Sites with Communication

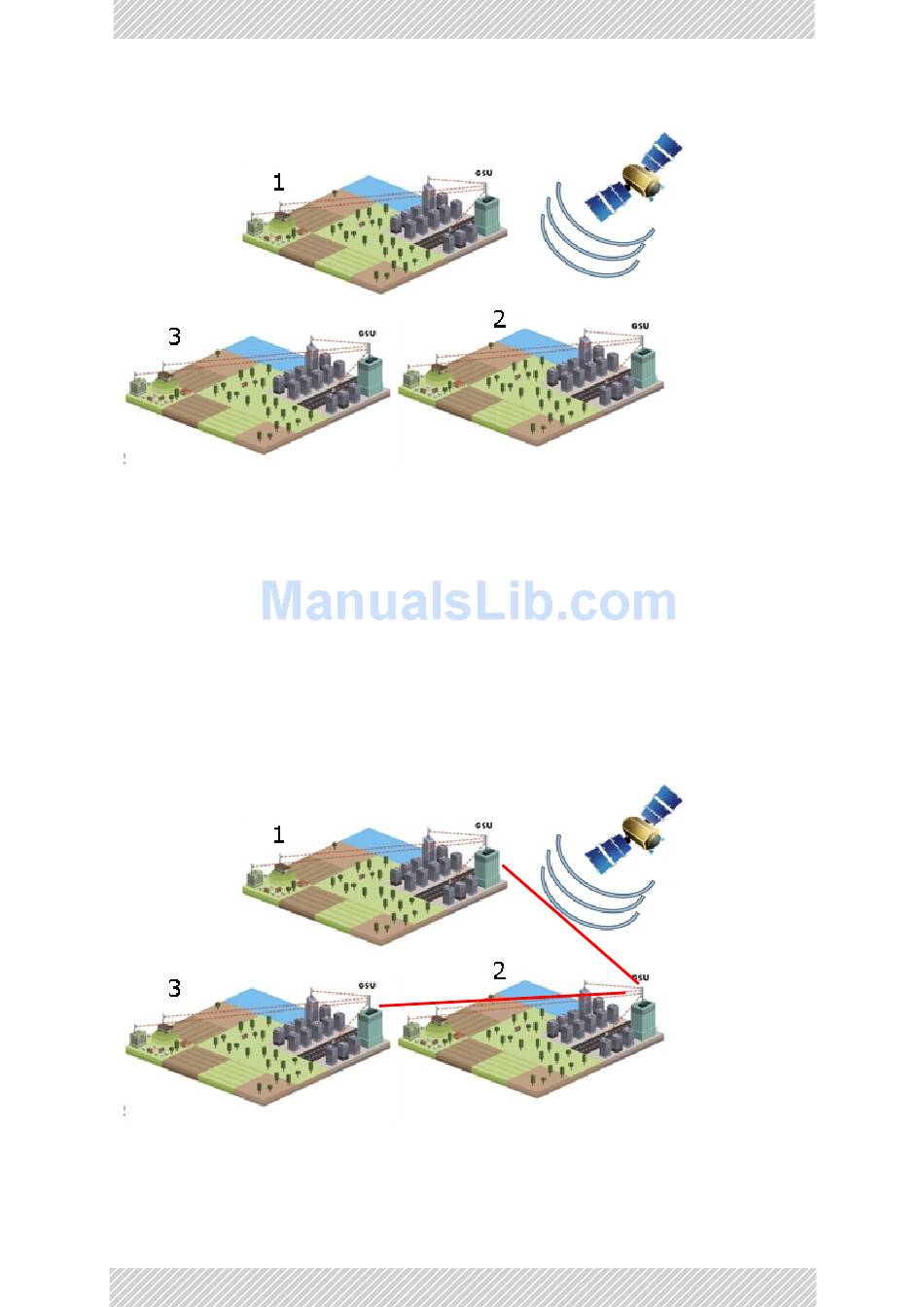

Figure 11‐1: GSU Scenario ‐ Independent distributed sites
Multiple Distributed Sites with Communication
What happens if, in Figure
shown in Figure 11‐2?
Consider GSU 1 and GSU 2: Both collocated towers transmit and receive simultaneously.
However, the radios communicating at GSU 1 and GSU 2 must transmit and receive in turn
according to the scheme in marked "Normal Phase" in Figure
situation, if all the links must send and receive together. It is further complicated by adding a
third and further sites as shown.
Figure 11‐2: GSU Scenario ‐ Communicating distributed sites
