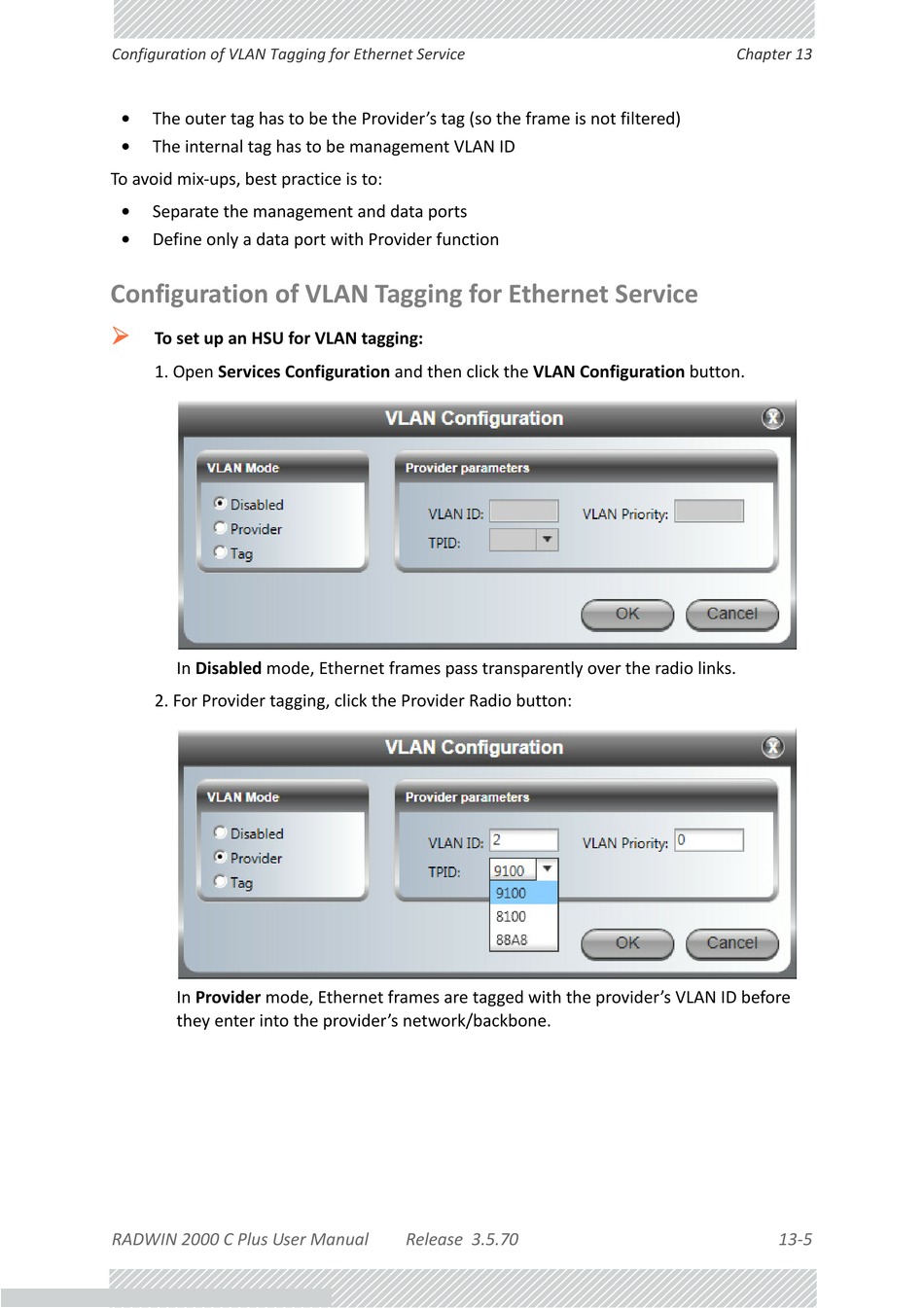

Radwin 2000 C PLUS User Manual page 172

Configuration of VLAN Tagging for Ethernet Service
• The outer tag has to be the Provider's tag (so the frame is not filtered)
• The internal tag has to be management VLAN ID
To avoid mix‐ups, best practice is to:
• Separate the management and data ports
• Define only a data port with Provider function
Configuration of VLAN Tagging for Ethernet Service

To set up an HSU for VLAN tagging:
1. Open Services Configuration and then click the VLAN Configuration button.
In Disabled mode, Ethernet frames pass transparently over the radio links.
2. For Provider tagging, click the Provider Radio button:
In Provider mode, Ethernet frames are tagged with the provider's VLAN ID before
they enter into the provider's network/backbone.
RADWIN 2000 C Plus User Manual Release 3.5.70
Chapter 13
13‐5
