IDU‐H aggregation unit

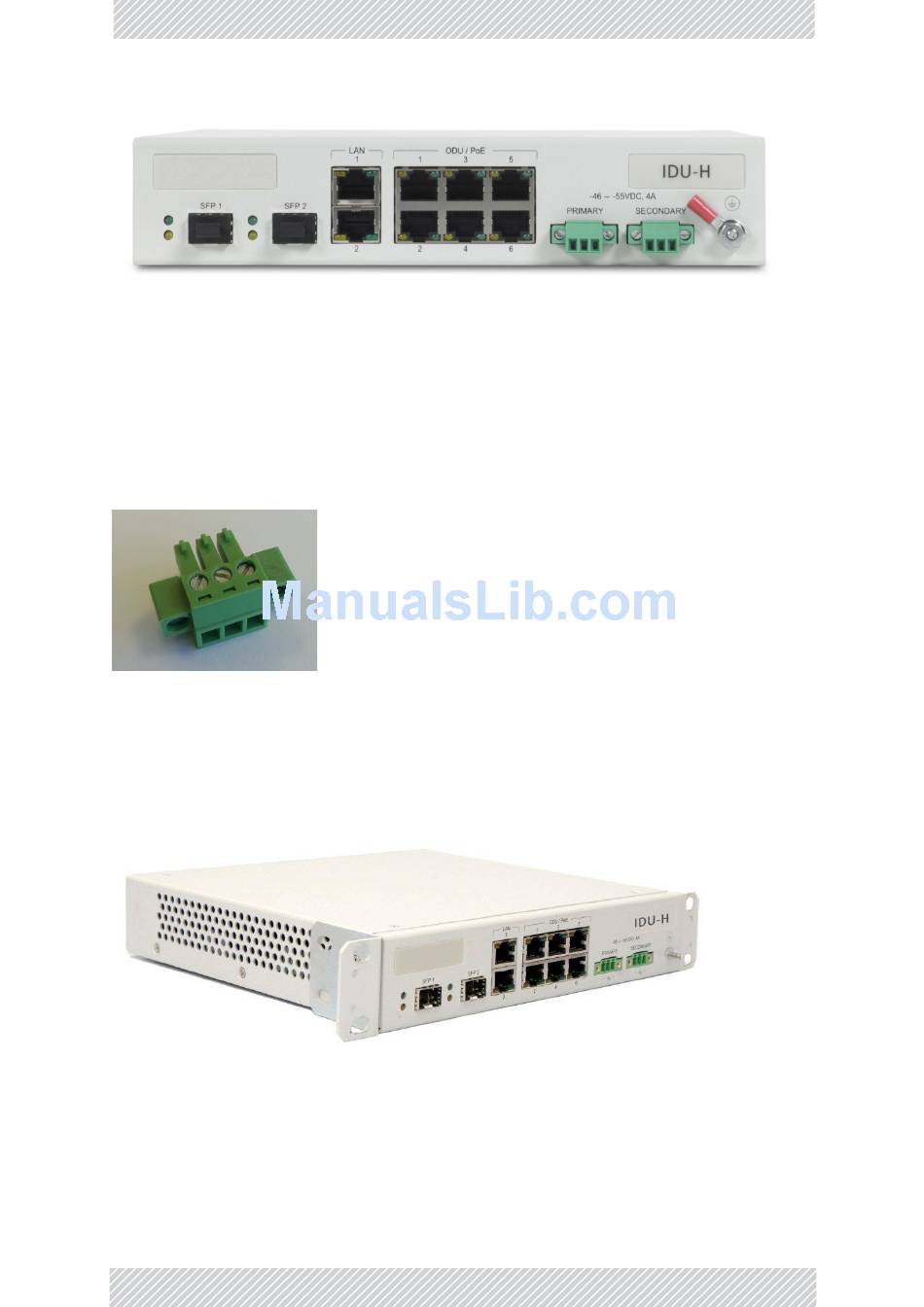

Figure 4‐3: IDU‐H
The IDU‐H package contains:
• One IDU‐H
• One short mounting ear
• One long mounting ear
• One dual connector to join two units mounted side by side
• Two DC power plugs for power cables ‐ see Figure
Figure 4‐4: DC three pin power plug
The power connectors are 3 pin in line female, with polarities (left to right) minus, ground,
plus. If required, an AC/DC power adapter should be ordered separately, depending on your
region.
The IDU‐H may be installed in single or double configurations:
Figure 4‐5: IDU‐H front view ‐ single configuration
