5.4.3.1

IPv4/IPv6

The IPv4 and IPv6 settings determine which Internet Protocol will be used for communication over the
network connected to the Ethernet port. IPv4 and IPv6 networks will run in parallel (dual-stack network),
but the protocols are different. See your network administrator to determine which protocol should be
enabled and to determine the correct settings.

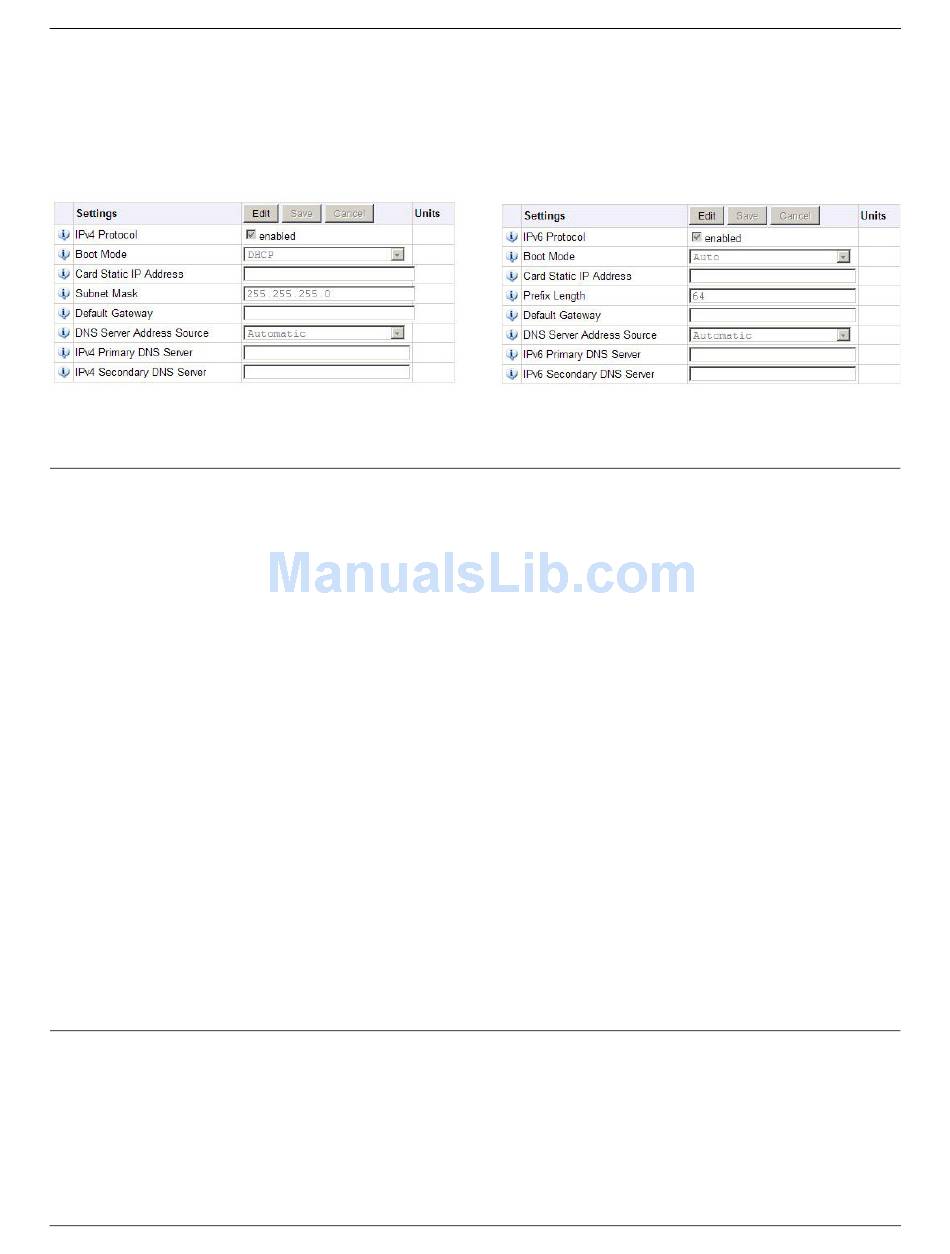

Figure 5-4 IPv4/IPv6 settings

IPv4 Settings
IPv4 Settings
IPv4 Protocol
Enables IPv4 in the card
IP Address Method
Mode the card boots into to be a network ready device (Static, DHCP, BootP)
Static IP Address
Network address for the interface
Subnet Mask
Network mask for the interface which divides a network into manageable segments
Default Gateway
IP address of the gateway for network traffic destined for other networks or subnets
DNS Server Address Source
Source of DNS server identification (None, Automatic, Configured)
Primary DNS Server
Secondary DNS Server
IPv6 Settings
IPv6 Protocol
Enables IPv6 in the card.
IP Address Method
Mode the card boots into to be a network ready device (Static, Auto)
Editing the Liebert IntelliSlot Unity Card Configuration
®
43 Liebert IntelliSlot
IPv6 Settings
™
™
Unity Card User Manual
