Editing the Liebert IntelliSlot Unity Card Configuration

5.1 Communications Tab Folders

The Communications tab of the web-based interface contains information
about the overall event status of the equipment and communication interface.
It presents logs of third-party information, communication settings, third-party
protocol settings and system status information.

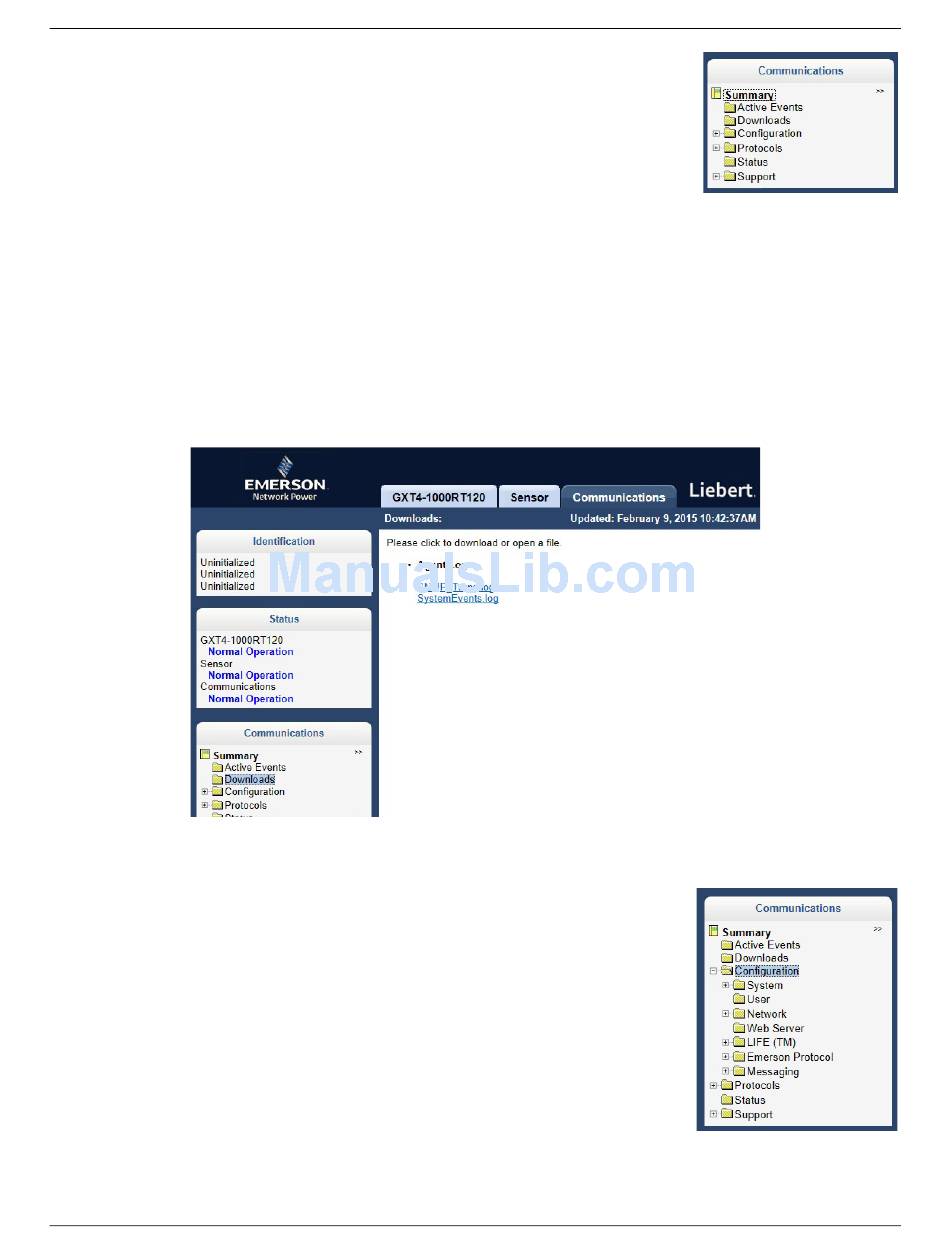

The Communications tab folders are shown at right.
5.2 Communications—Active Events Folder
The Communications tab's Active Events folder contains no configurable settings. The folder displays
events affecting the Liebert IntelliSlot Unity card.
5.3 Communications—Downloads Folder
The Communications tab's Downloads folder contains no configurable settings. The folder displays links to
download logs of third-party protocols that are enabled on the Liebert IntelliSlot Unity card. The logs help in
configuring and troubleshooting communication between the Network Management or Building
Management Systems being used to monitor the managed device.
5.4 Communications—Configuration Folder
The Configuration folder's top level displays the System Model Name of the
Liebert IntelliSlot Unity card. This name is factory-set and cannot be changed
(the Edit button is grayed out). The Configuration folder contains seven
subfolders:
• System
• User
• Network
• Web Server
• LIFE
™
• Emerson Protocol
• Messaging
® ™
