Quick Start Guide
D103470X012
Fisher
FIELDVUE
™
Controller for F
Contents
. . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . .
Note
This guide provides installation, setup and calibration information for the DLC3020f digital level controller using AMS Suite:
Intelligent Device Manager. For all other information on this product, including reference materials, maintenance procedures and
replacement parts details, refer to the DLC3020f Instruction Manual (D103434X012). If a copy of this document is required,
contact your
Emerson sales office
www.Fisher.com

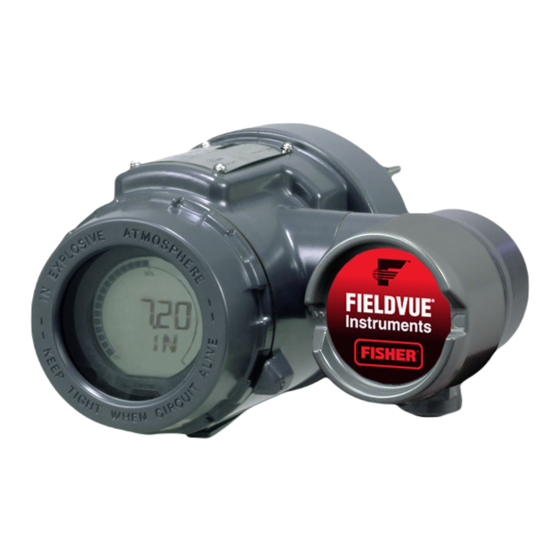

DLC3020f Digital Level
™
OUNDATION
2
6
. . . . . . . . . . .
10
13
27
30
or go to Fisher.com.
DLC3020f Digital Level Controller
fieldbus
™
This quick start guide applies to:
Device Type
Device Revision
Hardware Revision
Firmware Revision
DD Revision
April 2022
3020
1
1.0
1.0
0x03

Advertisement

loading
Need help?

Need help?

Do you have a question about the Fisher FIELDVUE DLC3020f and is the answer not in the manual?

Questions and answers

chen
March 3, 2025

how much is the fisher dlc3020f

0

Related Manuals for Emerson Fisher FIELDVUE DLC3020f

Summary of Contents for Emerson Fisher FIELDVUE DLC3020f

  • Page 1: Table Of Contents

    Intelligent Device Manager. For all other information on this product, including reference materials, maintenance procedures and replacement parts details, refer to the DLC3020f Instruction Manual (D103434X012). If a copy of this document is required, contact your Emerson sales office or go to Fisher.com. www.Fisher.com...

  • Page 2: Installation

    D ATEX Hazardous Area Approvals - DLC3020f Digital Level Controller (D104410X012) D IECEx Hazardous Area Approvals - DLC3020f Digital Level Controller (D104411X012) All documents are available from your Emerson sales office or at Fisher.com. Contact your Emerson sales office for all other approval/certification information.
  • Page 3 Quick Start Guide DLC3020f Digital Level Controller D103470X012 April 2022 Figure 1. Installation Flowchart START Factory mounted on 249 sensor High Install Heat temperature Insulator application? Mount DLC3020f to Sensor Make Electrical Connections Power Device Proceed to Set Up and Calibration Configuration: On the Bench or in the Field Configure the digital level controller before or after installation in the field.
  • Page 4 Quick Start Guide DLC3020f Digital Level Controller D103470X012 April 2022 Protecting the Coupling and Flexures NOTICE Damage to flexures and other parts can cause measurement errors. Observe the following steps before moving the sensor and controller. Lever Lock The lever lock is built in to the coupling access door. When the door is open, it positions the lever in the neutral travel position for coupling.
  • Page 5 Quick Start Guide DLC3020f Digital Level Controller D103470X012 April 2022 2. If the displacer cannot be blocked because of cage configuration or other concerns, the transmitter is uncoupled from the torque tube by loosening the coupling nut, and the access handle will be in the locked position. Before placing such a configuration into service, couple the instrument to the sensor as follows: a.

  • Page 6: Mounting

    Quick Start Guide DLC3020f Digital Level Controller D103470X012 April 2022 Mounting Mounting the 249 Sensor The 249 sensor is mounted using one of two methods, depending on the specific type of sensor. If the sensor has a caged displacer, it typically mounts on the side of the vessel as shown in the left image in figure 3. If the sensor has a cageless displacer, the sensor mounts on the side or top of the vessel as shown in the right image in figure 3.
  • Page 7 Quick Start Guide DLC3020f Digital Level Controller D103470X012 April 2022 DLC3020f Orientation Mount the DLC3020f with the torque tube shaft clamp access hole (see figure 2) pointing downward to allow accumulated moisture drainage. Note If alternate drainage is provided by the user, and a small performance loss is acceptable, the instrument could be mounted in 90 degree rotational increments around the pilot shaft axis.
  • Page 8 Quick Start Guide DLC3020f Digital Level Controller D103470X012 April 2022 Figure 4. Typical Mounting Positions for the FIELDVUE DLC3020f Digital Level Controller on a Fisher 249 Sensor SENSOR LEFT‐OF‐DISPLACER RIGHT‐OF‐DISPLACER CAGED CAGELESS 249VS 249W 249W 249VS 1  NOT AVAILABLE FOR 249C AND 249K. Figure 5.
  • Page 9 Quick Start Guide DLC3020f Digital Level Controller D103470X012 April 2022 Mounting the DLC3020f for High Temperature Applications Refer to figure 6 for parts identification except where otherwise indicated. The digital level controller requires an insulator assembly when temperatures exceed the limits shown in figure 7. A torque tube shaft extension is required for a 249 sensor when using an insulator assembly.

  • Page 10: Electrical Connections

    Quick Start Guide DLC3020f Digital Level Controller D103470X012 April 2022 1. When mounting a DLC3020f on a 249 sensor, secure the shaft extension to the sensor torque tube shaft via the shaft coupling and set screws, with the coupling centered as shown in figure 6. 2.
  • Page 11 Quick Start Guide DLC3020f Digital Level Controller D103470X012 April 2022 1. Remove the terminal box cover (key 6) from the terminal box (key 5). 2. Bring the field wiring into the terminal box. When applicable, install conduit using local and national electrical codes which apply to the application.
  • Page 12 Note Host system device manager interfaces, such as Emerson's AMS Device Manager or an Emerson Device Communicator communicate directly with the device. fieldbus communicating device, such as an Emerson Device Communicator, interfaces with the OUNDATION DLC3020f from any wiring termination point in the segment.

  • Page 13: Configuration

    Quick Start Guide DLC3020f Digital Level Controller D103470X012 April 2022 Configuration Note This quick start guide documents procedures in AMS Device Manager 10.5 and later. Earlier versions of AMS Device Manager contain the same procedures and methods, but access is through the block in which they reside. Note The primary transducer block must be set to out of service before the device can be configured.
  • Page 14 Quick Start Guide DLC3020f Digital Level Controller D103470X012 April 2022 Figure 10. Guided Setup INSTRUMENT SETUP GUIDED SETUP CONFIGURE Manual Setup AMS Device Manager Configure > Manual Setup Device Communicator Configure > Manual Setup The Device, Process Fluid, Instrument Display, Snap Acting Control, and Options tabs are accessible through Manual Setup. Note An error will be generated if the instrument is put back in service without applying device configuration changes;...
  • Page 15 Quick Start Guide DLC3020f Digital Level Controller D103470X012 April 2022 Figure 11. Configure > Manual Setup > Device SELECT UNIT SYSTEM VARIABLE DEVICE TAB SENSOR PARAMETERS CONFIGURATION MANUAL SETUP SENSOR LIMITS CONFIGURE INSTRUMENT SENSOR HARDWARE TORQUE TUBE MOUNT POSITION INFORMATION Primary Value Offset—...
  • Page 16 Quick Start Guide DLC3020f Digital Level Controller D103470X012 April 2022 Sensor Units Select the appropriate sensor units for your application. Note Default units from factory are SI (Metric). If you choose Mixed Units you must select the units for each sensor parameter. Unit System—English Units, Metric/SI Units, Mixed Units Length Units—mm, cm, m, in, or ft Volume Units—mm...
  • Page 17 2. This table applies to sensors with vertical displacers only. For sensor types not listed, or sensors with horizontal displacers, contact your Emerson sales office for the driver rod length. For other manufacturers' sensors, see the installation instructions for that mounting.
  • Page 18 Quick Start Guide DLC3020f Digital Level Controller D103470X012 April 2022 Process Fluid Select the Process Fluid tab (figure 13) to access Process Fluid, Temperature Compensation, and Mode. Figure 13. Configure > Manual Setup > Process Fluid PROCESS FLUID TAB TEMPERATURE PROCESS FLUID MANUAL SETUP COMPENSATION...
  • Page 19 Quick Start Guide DLC3020f Digital Level Controller D103470X012 April 2022 Temperature Compensation If Temperature Compensation is selected, provide the following information: Temperature Input—select None, Manual, AO Block, or RTD. Temperature compensation, when enabled, can come from a manually entered temperature, a temperature from a fieldbus transmitter (AO block) or a temperature from an RTD.
  • Page 20 Quick Start Guide DLC3020f Digital Level Controller D103470X012 April 2022 Decimal Places Enter the number of desired decimal places for the device display. Display Primary Value Offset Enter the PV Offset to apply it to the LCD readout. Scrolling Message Control Messages that can be scrolled on the LCD screen.
  • Page 21 Quick Start Guide DLC3020f Digital Level Controller D103470X012 April 2022 Primary Value PV in engineering units Primary Value Percent PV in % DI1 Trip Point Settings Set Channel 1 or 2 of the DI for snap acting control. DI1 Action—indicate whether the trip point is active on rising or falling level. DI1 Trip Point—enter the point where DI1 is active.
  • Page 22 Quick Start Guide DLC3020f Digital Level Controller D103470X012 April 2022 Figure 16. Configure > Manual Setup > Options COMMUNICATION TIMEOUT WRITE ALARM OPTIONS TAB MANUAL SETUP MODE CONFIRM TIME FUNCTION BLOCK AVAILABLE ALERT KEY MAXIMUM ALERTS ALLOWED MAXIMUM ALERTS POSSIBLE BOCK ALARM RESOURCE BLOCK TRANSDUCER BLOCK...
  • Page 23 Quick Start Guide DLC3020f Digital Level Controller D103470X012 April 2022 Confirm Time Confirm Time determines the time in 1/32 of a millisecond, the instrument waits for confirmation of receipt of a report before trying again. If Confirm Time is 0, the instrument does not try to resend the report. Enter 0 or a value between 320000 (10 seconds) and 640000 (20 seconds).
  • Page 24 Quick Start Guide DLC3020f Digital Level Controller D103470X012 April 2022 Features Selected Note Typically this parameter does not need to be changed. The unit will be operational using the default values assigned by the factory. Features Selected indicates which Resource Block Options features have been selected and is used to select the desired features.
  • Page 25 Quick Start Guide DLC3020f Digital Level Controller D103470X012 April 2022 Figure 17. Alert Setup ALERT SETUP TAB ELECTRONICS ALERT SETUP OPERATIONAL SCROLL DOWN TO VIEW: SENSOR BOARD TEMPERATURE LIMIT INPUT COMPENSATION ERROR RATE LIMIT CONFIGURE Alerts The DLC3020f provides two levels of alerts; Instrument alerts and PlantWeb alerts. Instrument Alert Conditions Instrument Alert Conditions, when enabled, detect many operational and performance issues that may be of interest.
  • Page 26 Quick Start Guide DLC3020f Digital Level Controller D103470X012 April 2022 Maintenance— indicates a problem with the DLC3020f that, if ignored, could eventually lead to its failure. Maintenance conditions require prompt action. Advisory— indicates a minor problem with the DLC3020f. An advisory condition does not have an impact on the process or device.

  • Page 27: Calibration

    Quick Start Guide DLC3020f Digital Level Controller D103470X012 April 2022 D Hall Sensor— when selected indicates if the Hall Sensor readings are out of range. Temperature Limit D Instrument Temperature High— when selected indicates if the device has exceeded the Instrument Temperature High Limit.
  • Page 28 Quick Start Guide DLC3020f Digital Level Controller D103470X012 April 2022 Calibrate Instrument Choose Full Calibration (Bench) or Full Calibration (Field) and follow AMS Device Manager (or the Device Communicator or other host system) prompts to calibrate the instrument. Guided Calibration recommends an appropriate calibration procedure.
  • Page 29 Quick Start Guide DLC3020f Digital Level Controller D103470X012 April 2022 Figure 19. Expert User Calibrations CALIBRATE EXPERT USER TRIM CURRENT CALIBRATION CALIBRATIONS TAB FULL CALIBRATION CONFIGURE Calibration Descriptions Full Calibration Weight (Bench only)—Weight Calibration is a bench calibration where weights are used to simulate the different forces the device sees at the minimum and maximum levels.

  • Page 30: Specifications

    Quick Start Guide DLC3020f Digital Level Controller D103470X012 April 2022 When complete, the torque rate or gain will be correct at the calibration temperature. After finalizing the installation a zero trim may be needed since a zero shift may take place when installing the device. Two Point (Bench or Field)—A Two Point Calibration fully calibrates the device by observing the level/interface at two points.
  • Page 31 Quick Start Guide DLC3020f Digital Level Controller D103470X012 April 2022 Table 2. Specifications Available Configurations Performance Criteria DLC3020f Mounts on 249 caged and cageless sensors. $0.1% of output span Independent Linearity Function: Transmitter, Controller, Switch $0.15% Accuracy <0.1% of full scale output Repeatability Communications Protocol: F fieldbus...
  • Page 32 Explosion Protection and Safety of Simulate Function Instrumentation (China) Simulate Active, when enabled, simulates an active Contact your Emerson sales office alert without making it visible. classification/certification specific information Operating Limits Process Temperature: See table 5 and figure 7...
  • Page 33 Quick Start Guide DLC3020f Digital Level Controller D103470X012 April 2022 Table 3. FIELDVUE DLC3020f EMC Summary Results—Immunity Port Phenomenon Basic Standard Test Level Performance Criteria 4 kV contact Electrostatic discharge (ESD) IEC 61000‐4‐2 8 kV air 80 to 1000 MHz @ 10V/m with 1 kHz AM at 80% Radiated EM field IEC 61000‐4‐3 1400 to 2000 MHz @ 3V/m with 1 kHz AM at 80%...
  • Page 34 Torque Tube N05500 316 Stainless Steel, N06600, N10276 1. N05500 is not recommended for spring applications above 232_C (450_F). Contact your Emerson sales office or application engineer if temperatures exceeding this limit are required. Table 7. Caged Displacer Sensors Equalizing Connection...
  • Page 35 Quick Start Guide DLC3020f Digital Level Controller D103470X012 April 2022 Table 8. Cageless Displacer Sensors Standard Head Wafer Body Mounting Sensor Flange Connection (Size) Pressure Rating Torque Tube Arm Material NPS 4 raised face or optional ring‐type joint CL150, CL300, or CL600 249BP Steel NPS 6 or 8 raised face...
  • Page 36 Responsibility for proper selection, use, and maintenance of any product remains solely with the purchaser and end user. Fisher and FIELDUVE are marks owned by one of the companies in the Emerson Automation Solutions business unit of Emerson Electric Co. Emerson Automation Solutions, Emerson, and the Emerson logo are trademarks and service marks of Emerson Electric Co.
