Sensor Tab Summary Page

The Sensor tab Summary Page shows the status of all installed sensors, details about any selected sensor
and a Setting pane that permits changing a sensor's label, thresholds if applicable, alarm configuration and
acknowledging alarms and events.
Selecting a sensor permits changing its settings at the lower part of the window.
Events may also be acknowledged on this window.

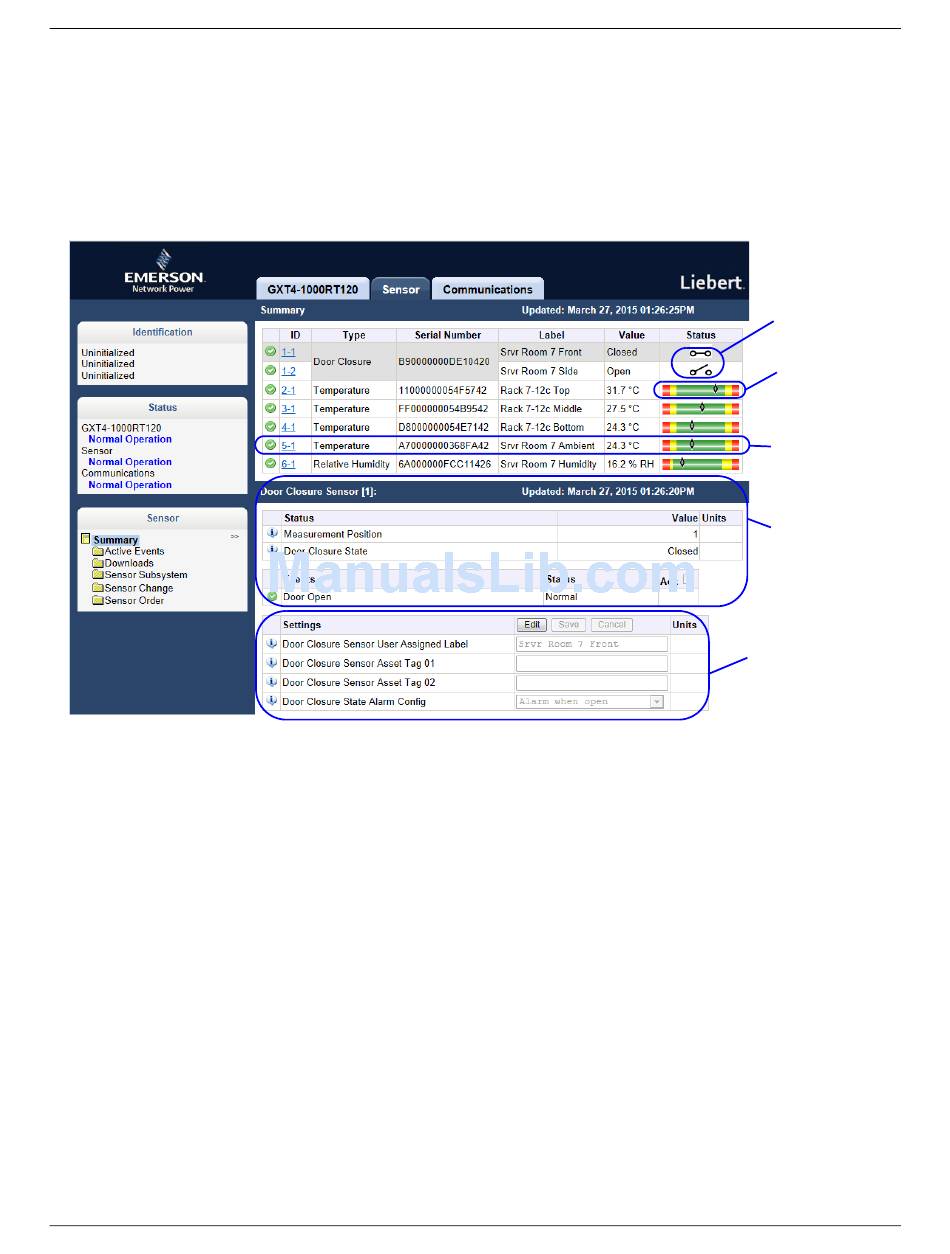

Figure 4-7 Sensor tab-Summary page layout

4.5.2

Sensor Tab Summary Page-Details Pane

The Details pane of the Sensor tab window appears when the Summary folder is selected. The area shows
the status of all connected sensors (see Figure 4-7).
Supported sensors include:
• Temperature
• Humidity
• Door Closure
• Contact Closure
• Leak Detection
® ™
Liebert IntelliSlot Unity
™
Card User Manual 36
Door Closure
status icons
One open,
One closed
Graphical
display of
temperature
sensor value
Temperature
sensor selected
Details about
the selected
sensor; the
value will match
the value in the
Summary pane
Selected sensor's
settings; click Edit
to change a value;
requires password
