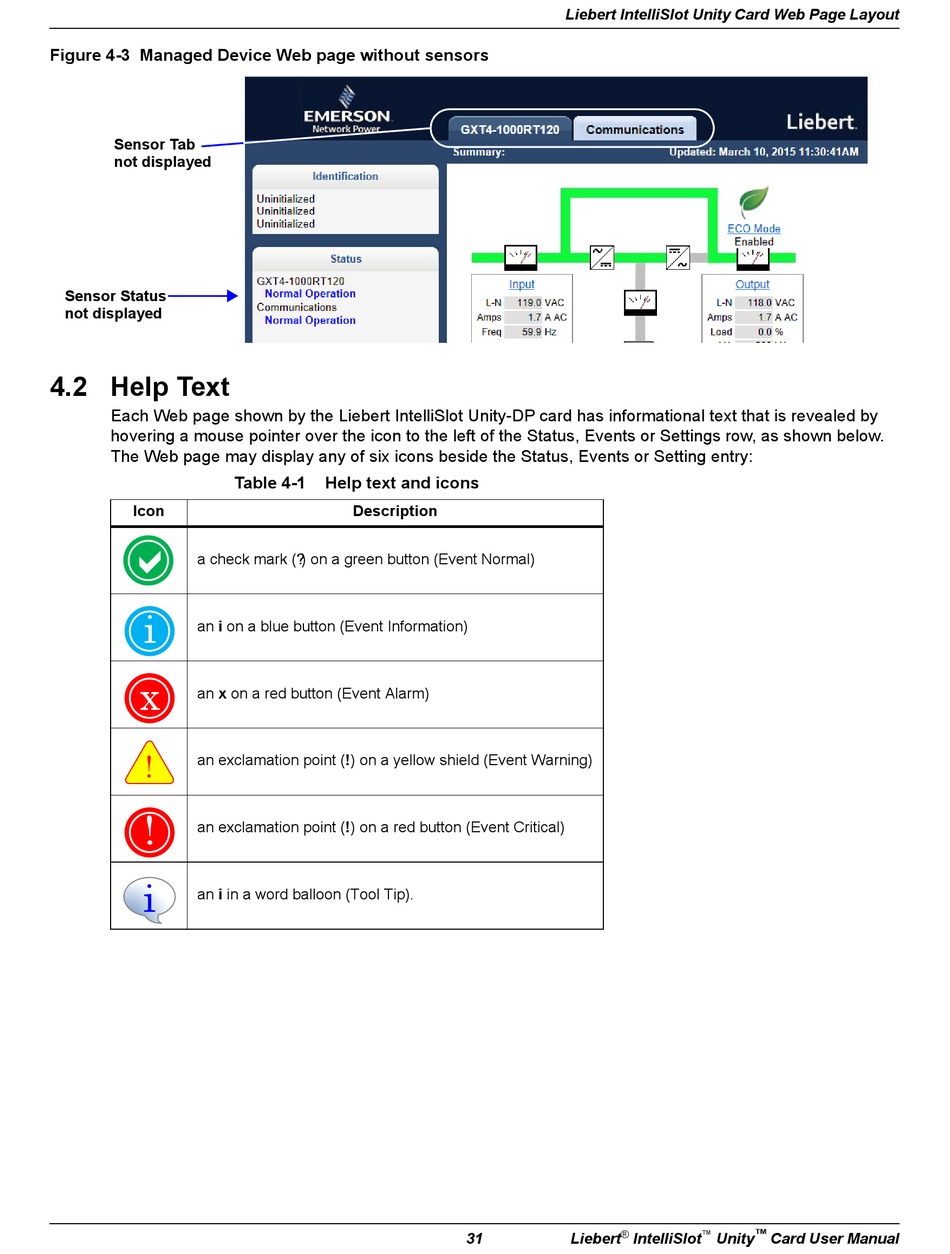

Figure 4-3 Managed Device Web page without sensors

Sensor Tab
not displayed
Sensor Status
not displayed

4.2 Help Text

Each Web page shown by the Liebert IntelliSlot Unity-DP card has informational text that is revealed by
hovering a mouse pointer over the icon to the left of the Status, Events or Settings row, as shown below.
The Web page may display any of six icons beside the Status, Events or Setting entry:
Icon

a check mark (? ) on a green button (Event Normal)
i
an i on a blue button (Event Information)
x
an x on a red button (Event Alarm)
!
an exclamation point (!) on a yellow shield (Event Warning)
!
an exclamation point (!) on a red button (Event Critical)
i
an i in a word balloon (Tool Tip).
Table 4-1 Help text and icons
Description
Liebert IntelliSlot Unity Card Web Page Layout
®
31 Liebert IntelliSlot
™
™
Unity Card User Manual
