Chapter 3: System Setup

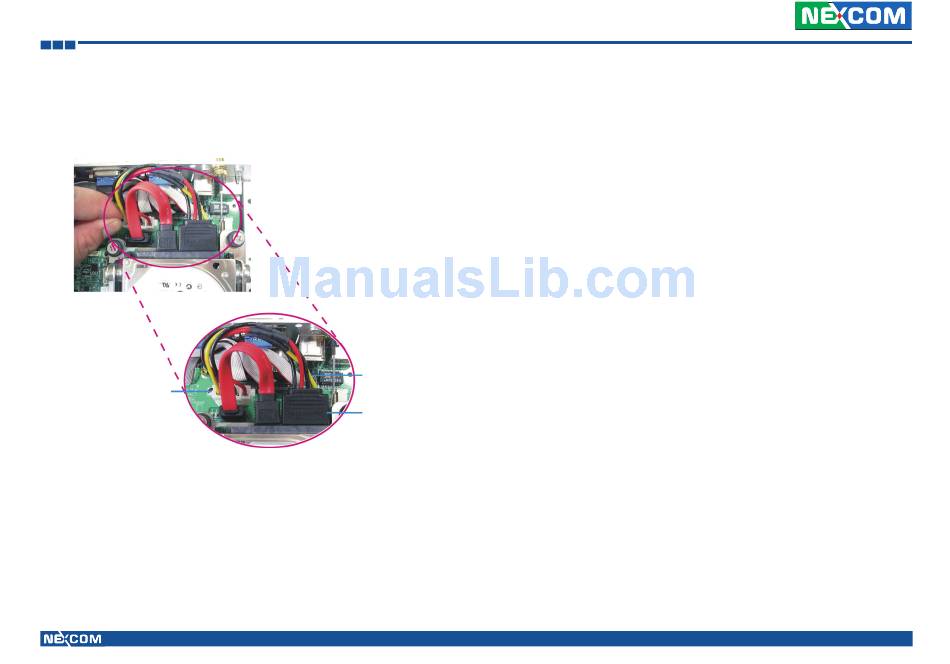

8. Connect one end of the SATA power cable to the SATA power connector
that is on the board then connect the other end of the cable to the SATA
power connector at the rear of the SATA drive.
Cable connected to the
SATA power connector
on the board
Copyright © 2011 Nexcom International Co., Ltd. All Rights Reserved
SATA power cable
Cable connected
to the SATA drive
46
VTC 6201 Series User Manual
