Chapter 1: Product Introduction

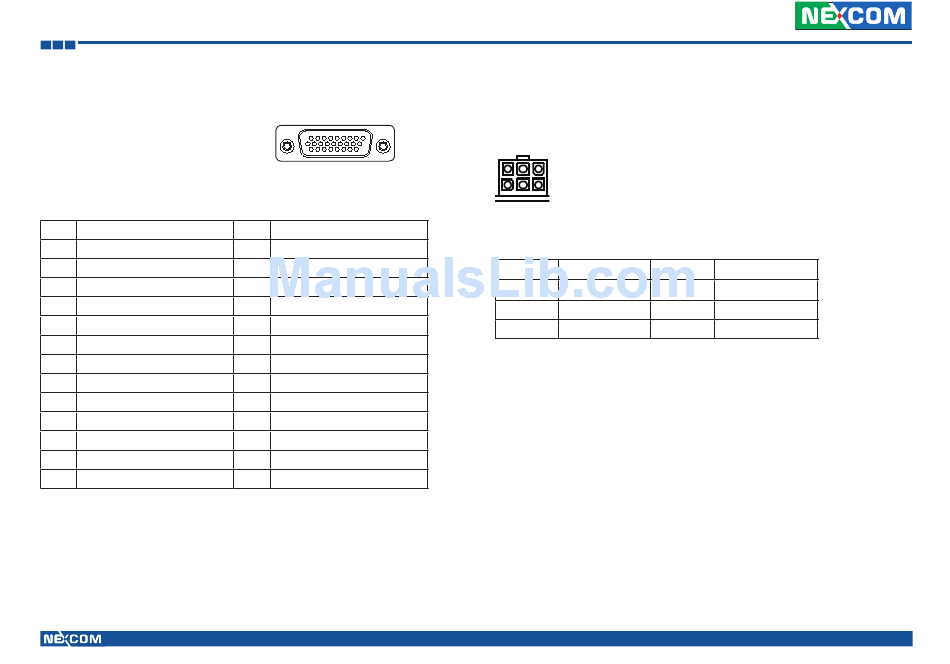

LVDS
Connector size: DB-26 PIN
Connector location
Connector pin definition
Pin Definition
1 Panel_ EN
3 VDD
5 LCDD09(OUT3)
7 LCDD08(OUT3#)
9 LCDD_GND
11 LCDD07(CLK)
13 LCDD06(CLK#)
15 LVDS_GND
17 LCDD05(OUT2)
19 LCDD04(OUT2#)
21 LCDD_GND
23 USB_0#
25 USB_0
Copyright © 2011 Nexcom International Co., Ltd. All Rights Reserved
9 1
26 19
Pin Definition
2 Panel_control
4 VDD
6 LCDD01(OUT0)
8 LCDD00(OUT0#)
10 LCDD_GND
12 LCDD03(OUT1)
14 LCDD02(OUT1#)
16 LCDD_GND
18 Power on push button
20 Panel_backlight
22 Panel-Gnd
24 Contact_DET#
26 USB_VCC
External SMBus, 12V and 5V Power Output
Connector location
6 4
3 1
Connector pin definition
Pin Definition
1 5V
3 SMBus Clock
5 GND
+5 VDC (1A) and +12VDC (1A) power output and SMBus
(w/o VTK 33M-01 connection)
+5 VDC (0.5A) and +12VDC (0.5A) power output and SMBus
(w/ VTK 33M-01 connection)
10
Pin Definition
2 12V
4 GND
6 SMBus Data
