Chapter 1: Product Introduction

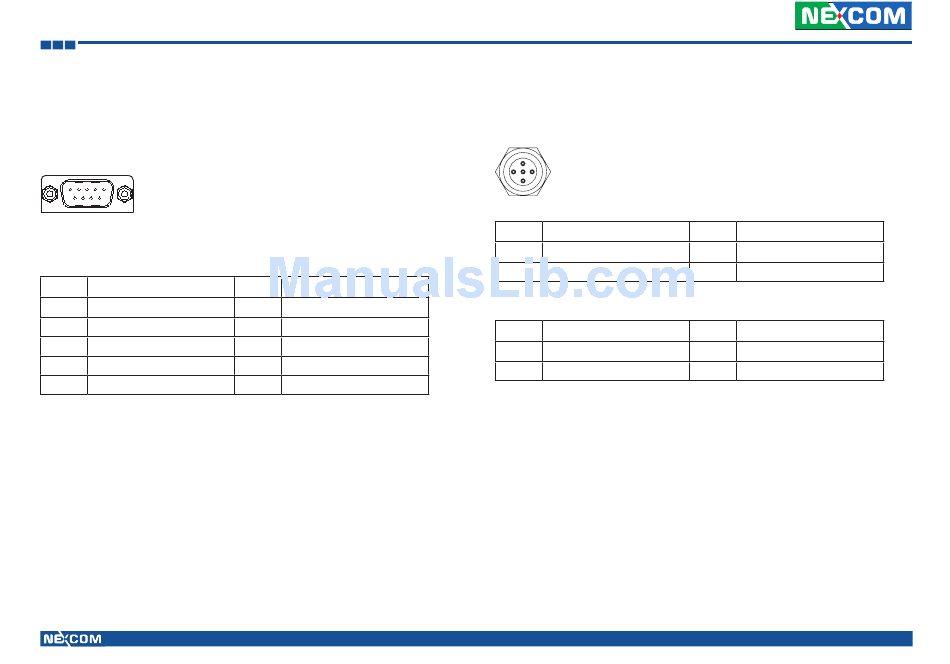

GPIO Connector
Connector size: DSUB-9 pin
Connector location
5
1
6
9
Connector pin definition (VTC 6201/ VTC 6201-M)
Pin
Definition
1
GIN1
3
GIN3
5
GOUT4
7
GOUT2
9
GND
VGA Port x2 (Clone Mode)
The DB15 VGA port supports resolutions up to 1600x1200 @ 85 Hz,
2048x1536 @ 60Hz.
Copyright © 2011 Nexcom International Co., Ltd. All Rights Reserved
Pin
Definition
2
GIN2
4
GIN4
6
GOUT1
8
GOUT3
10
GND
LAN Port x 2 (Optional)
Connector size: M12
Connector location: J11,J12
Connector pin definition (J11)
Pin
Definition
1
LAN2_MDI_0P_R
3
LAN2_MDI_1P_R
Connector pin definition (J12)
Pin
Definition
1
LAN3_MDI_0P_R
3
LAN3_MDI_1P_R
USB Port x 2
The two USB ports are compliant with USB 2.0 specifications.
LAN Port (RJ45 Connector)
The LAN port is an RJ45 interface with integrated LEDs and supports
10/100/1000Mbps Ethernet data transfer rates.
Audio Jacks (MIC-IN and LINE-OUT)
▪
MIC-IN jack receives monophonic input from an external microphone.
▪
LINE-OUT jack is the stereo output for connecting external speakers.
11
Pin
Definition
2
LAN2_MDI_0N_R
4
LAN2_MDI_1N_R
Pin
Definition
2
LAN3_MDI_0N_R
4
LAN3_MDI_1N_R
VTC 6201 Series User Manual
