Chapter 3: System Setup

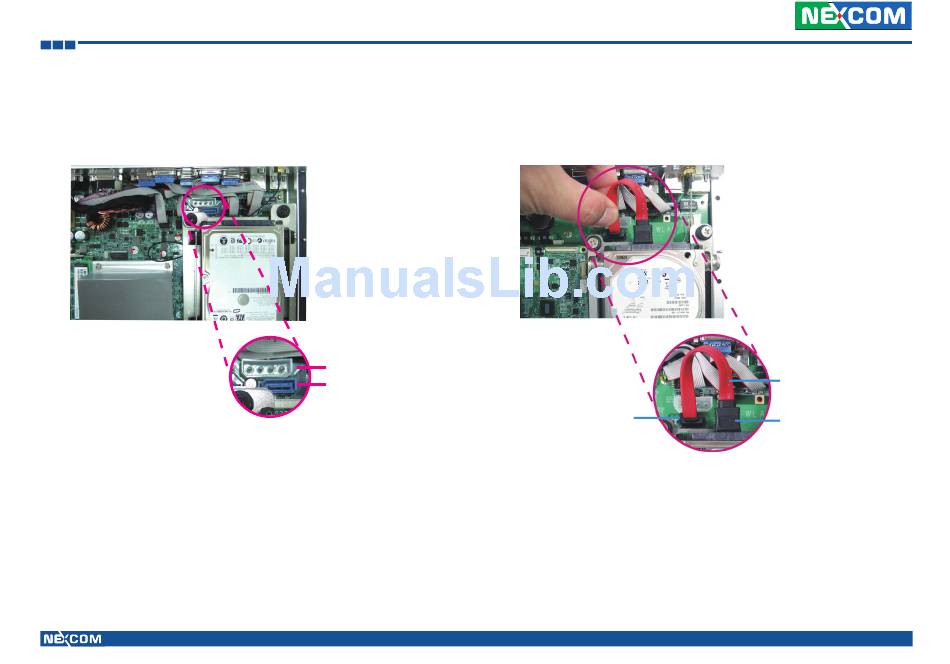

6. Locate for the SATA connector and the power connector. on the board.
Copyright © 2011 Nexcom International Co., Ltd. All Rights Reserved
7. Connect one end of the SATA data cable to the SATA connector that is on
Power connector
SATA connector
45
the board then connect the other end of the cable to the SATA connector
at the rear of the SATA drive.
Cable connected to
the SATA connector
on the board
SATA data cable
Cable connected
to the SATA drive
