Chapter 2: Jumpers and Connectors

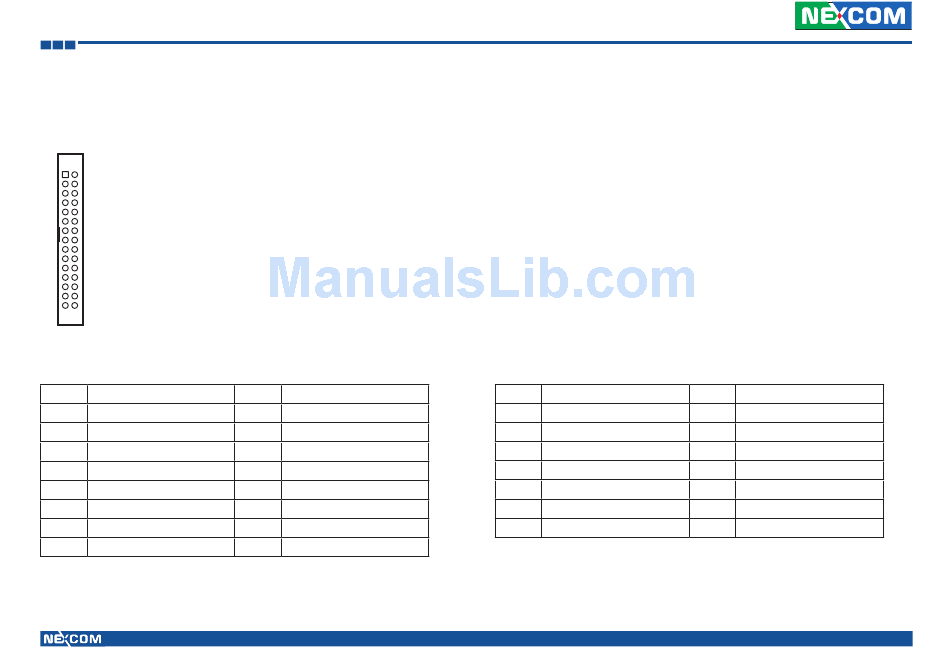

LVDS Connector + USB0

Connector size: 2 x 15 (2.0mm)
Connector location: CN4
1 2
29 30
Connector pin definition
Pin Definition
1 LVDS_CLK
3 Panel_VDD
5 LVDS_9(OUT3)
7 LVDS_8(OUT3#)
9 LVDS_GND
11 LVDS_7(CLK)
13 LVDS_6(CLK#)
15 LVDS_GND
Copyright © 2011 Nexcom International Co., Ltd. All Rights Reserved
Pin Definition
2 LVDS_DAT
4 LVDS_1(OUT0)
6 LVDS_0(OUT0#)
8 Panel_VDD
10 LVDS_GND
12 LVDS_3(OUT1)
14 LVDS_2(OUT1#)
16 LVDS_GND
Connector pin definition
Pin Definition
17 LVDS_5(OUT2)
19 LVDS_4(OUT2#)
21 LVDS_GND
23 USB_4#
25 USB_4
27 USB_GND
29 Panel_backlight(12V)
21
Pin Definition
18 Panel_backlight(12V)
20 Panel_backlight(12V)
22 Power on push buttom
24 USB_GND
26 USB_VCC (+5V)
28 USB_GND
30 GND
